Scroll to zoom Click a part # to view details

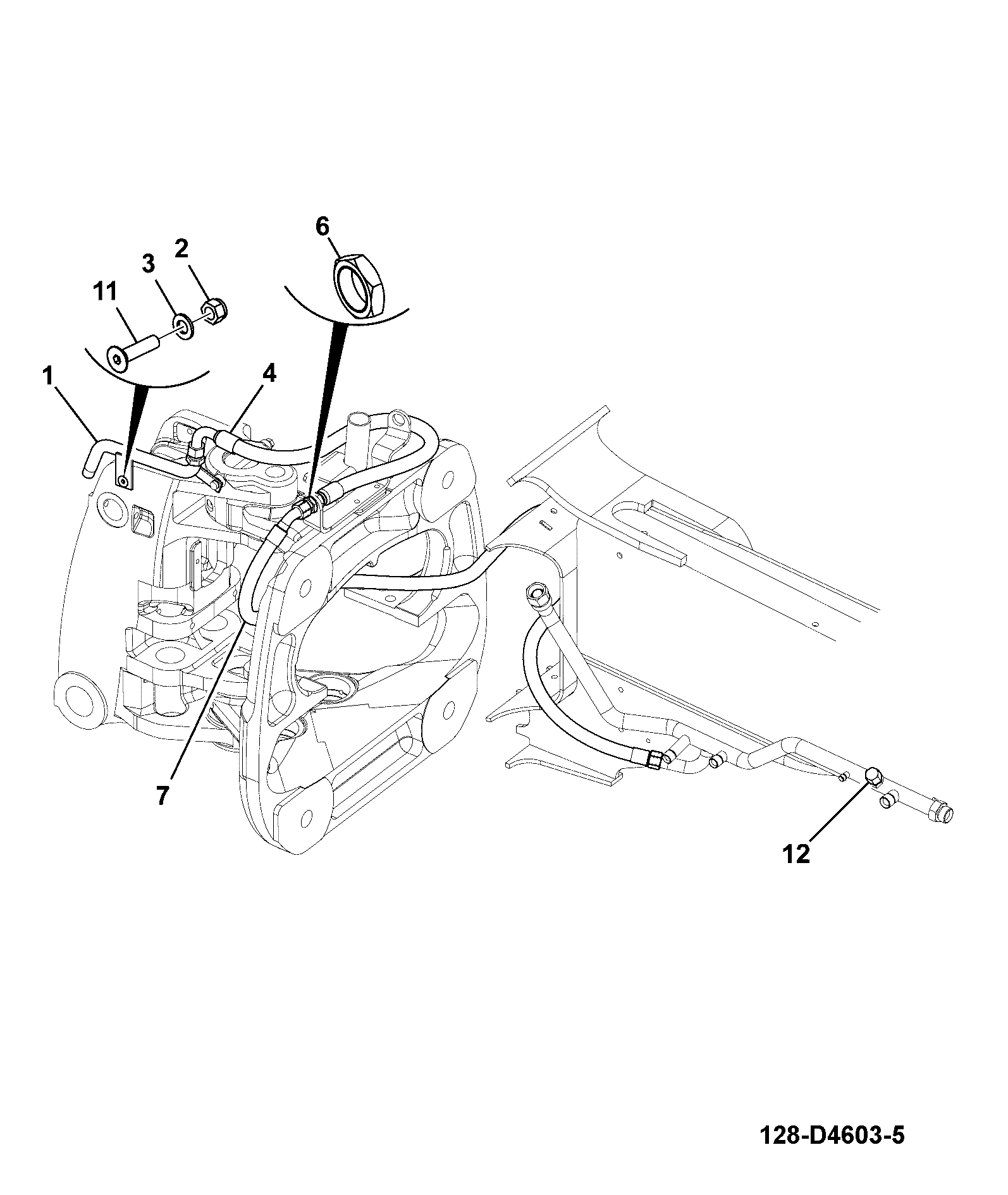

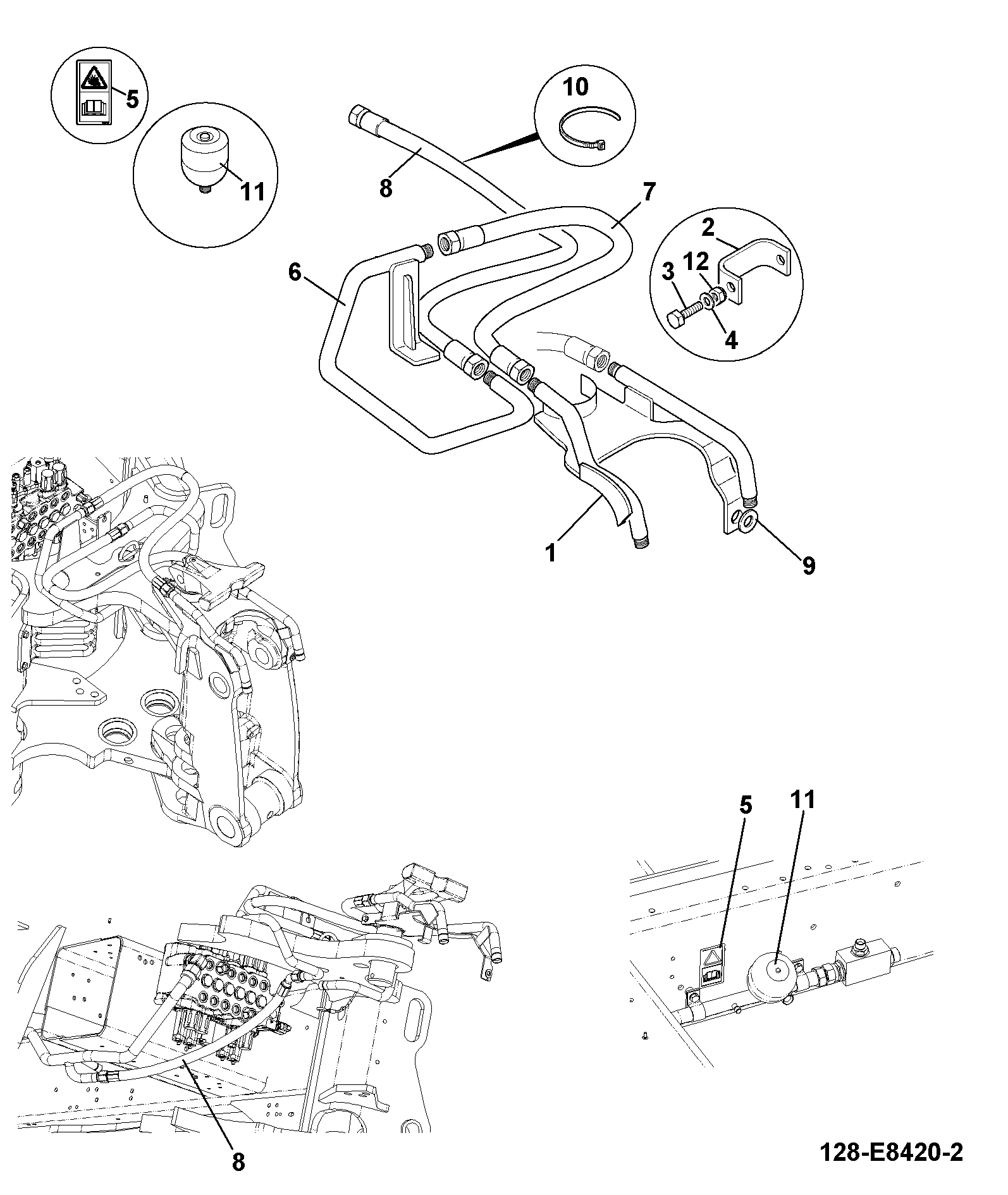

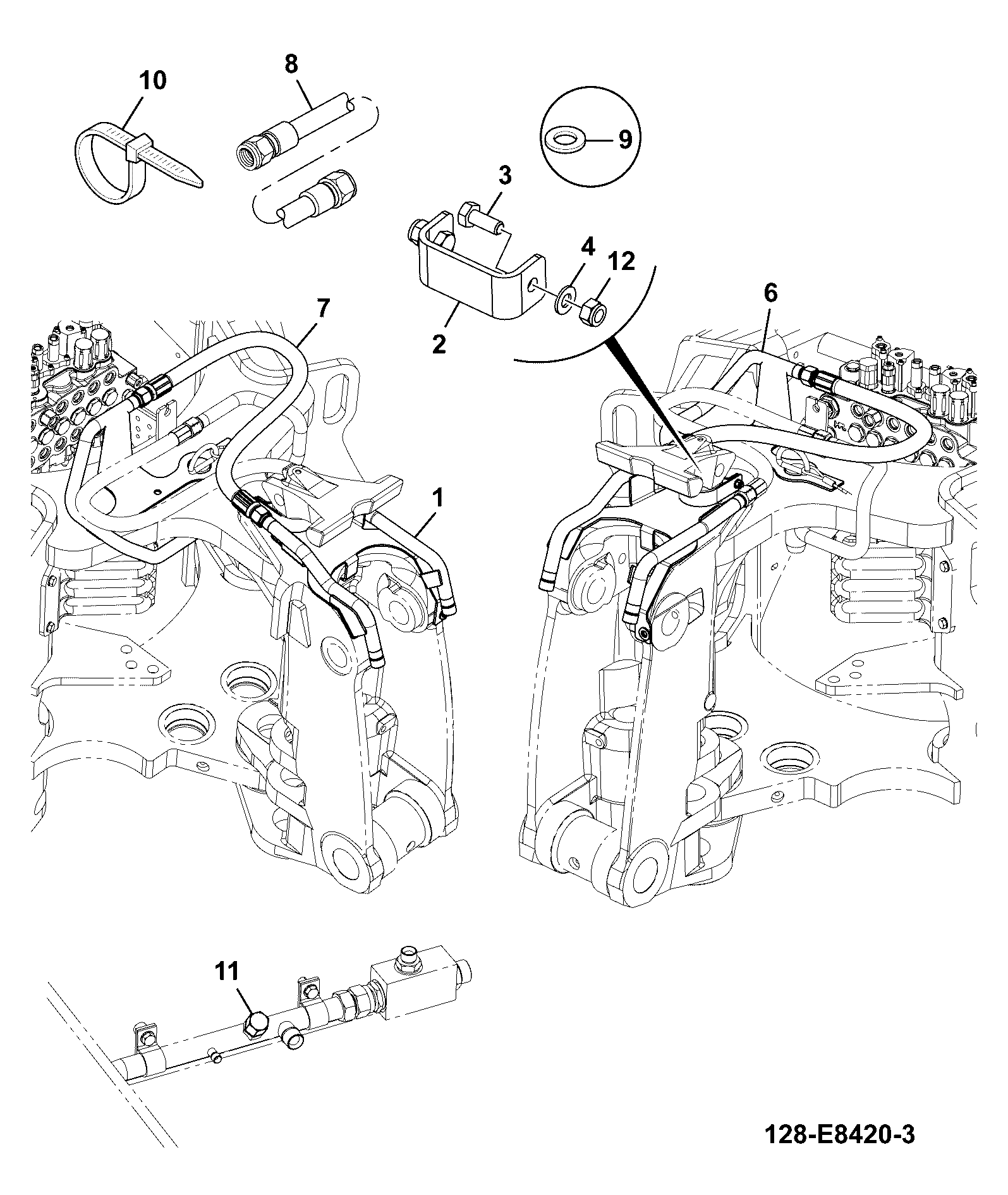

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Coil only 332/G3836 | 1 | $165.08 | ||||
| Solenoid cartridge 336/A1151 | 1 | $307.55 | ||||
| 1 | TOP HAT BRACKET 334/C7479 | 1 | $34.10 | |||
| 2 | VALVE 2 WAY NO 70L/min 334/C6845 | 1 | $826.16 | |||
| 3 | BI DIRECTIONAL CHECK VALV 334/C8020 401/W9653 | 1 | $92.52 | |||
| 4 | RELIEF VALVE 626Bar 25/222498 333/C8657 | 1 | $612.01 | |||
| 5 | G3/4A-G3/4A B/H-3/4 UNF P 334/C6961 | 1 | $47.82 | |||
| 6 | 3/4 UNF POS-G5/8A-3/4 UNF 334/C6960 | 1 | $44.45 | |||
| 7 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 8 | (W) BOLT M6x55 1315/3213Z | 1 | $4.60 | |||
| 9 | BACK NUT 3/4"BSP 1356/0206Z | 1 | $7.18 | |||
| 10 | INTERNAL SPRING WASHER ID 27mm 335/B4661 | 1 | $5.03 | |||
| 11 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 14 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 15 | HOSE 5/8BSP 380mm 34AP/AA038 | 1 | $57.54 | |||
| 16 | ELBOW ADAPTOR M/M 816/90461 | 1 | $20.76 | |||
| 17 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 18 | RIVET NUT M6 826/01810 | 1 | $2.65 | |||
| 19 | 5/8 BSP LP 380B 24AP/BA038 | 1 | $54.98 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-E130-154-7-394846 E130-154-7 HYDRAULIC CIRCUITS CHASSIS HIGH FLOW HAMMER RETURN, SIDESHIFT, OCVP, T4i
View Diagram -
DIAG-E130-158-2-394846 E130-158-2 HYDRAULIC CIRCUITS CHASSIS HIGH FLOW HAMMER RETURN, CENTREMOUNT, EASYCONTROL, OCVP, T4i
View Diagram -
DIAG-E130-158-3-394846 E130-158-3 HYDRAULIC CIRCUITS CHASSIS HIGH FLOW HAMMER RETURN, CENTREMOUNT, EASYCONTROL, OCVP, T4i
View Diagram
