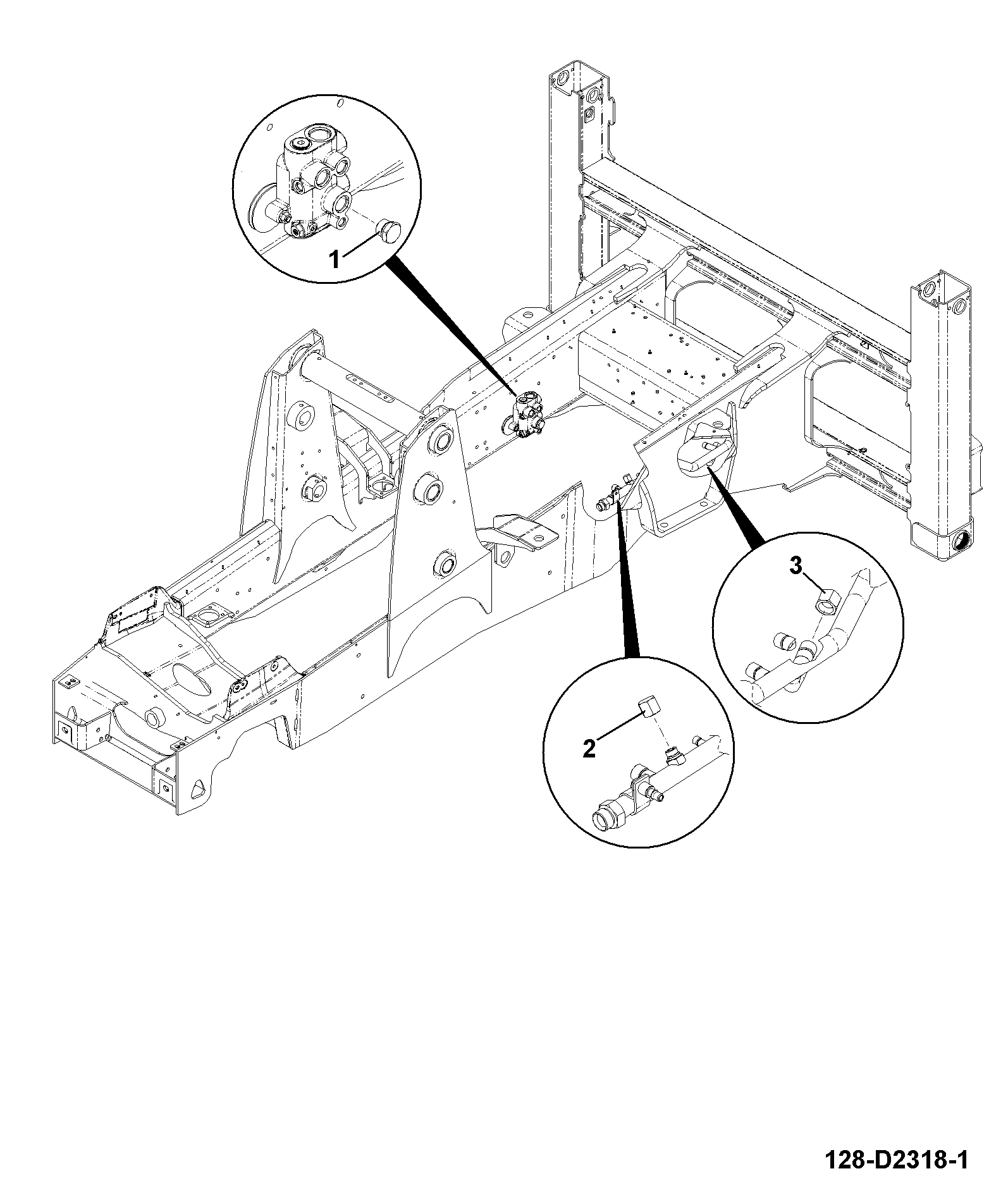

E130-152-2 HYDRAULIC CIRCUITS CHASSIS HIGH FLOW BLANKING CAPS, EASYCONTROL, OCVP, T4i Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	PLUG 1-1/16UNF O RING BOSS 1745/0005	1	AVAILABLE TO ORDER	$119.12	Quantity
2	BLANKING CAP 3/4 UNF 333/E5318	1	AVAILABLE TO ORDER	$9.96	Quantity
3	BLANKING CAP 3/4 BSP 816/90274	1	1 IN STOCK	$37.88	Quantity

Showing 1 to 3 of 3 parts
