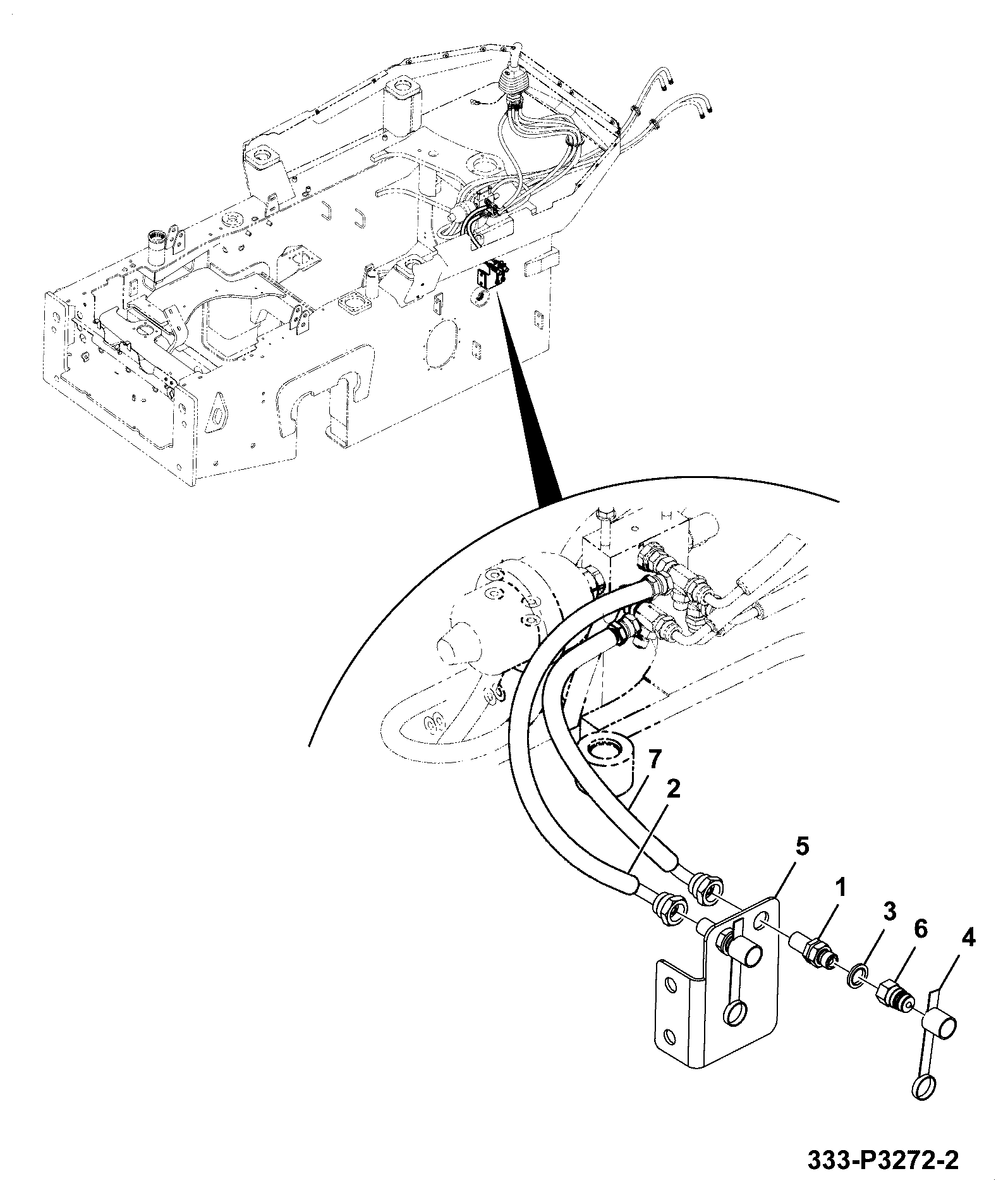

E130-15-1 HYDRAULIC CIRCUITS CHASSIS CIRCUIT PRESSURE REDUCER Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	PRESSURE REDUCER 336/E9789	1	AVAILABLE TO ORDER	$876.98	Quantity
2	M18 BONDED SEAL 336/E9794	1	AVAILABLE TO ORDER	$13.26	Quantity
3	ADAPTOR G1/2A - M18 336/E8876	1	AVAILABLE TO ORDER	$15.54	Quantity
4	ACCUMULATOR 0.32 LTR 16BA JHJ0050	1	AVAILABLE TO ORDER	$386.77	Quantity

Showing 1 to 4 of 4 parts
