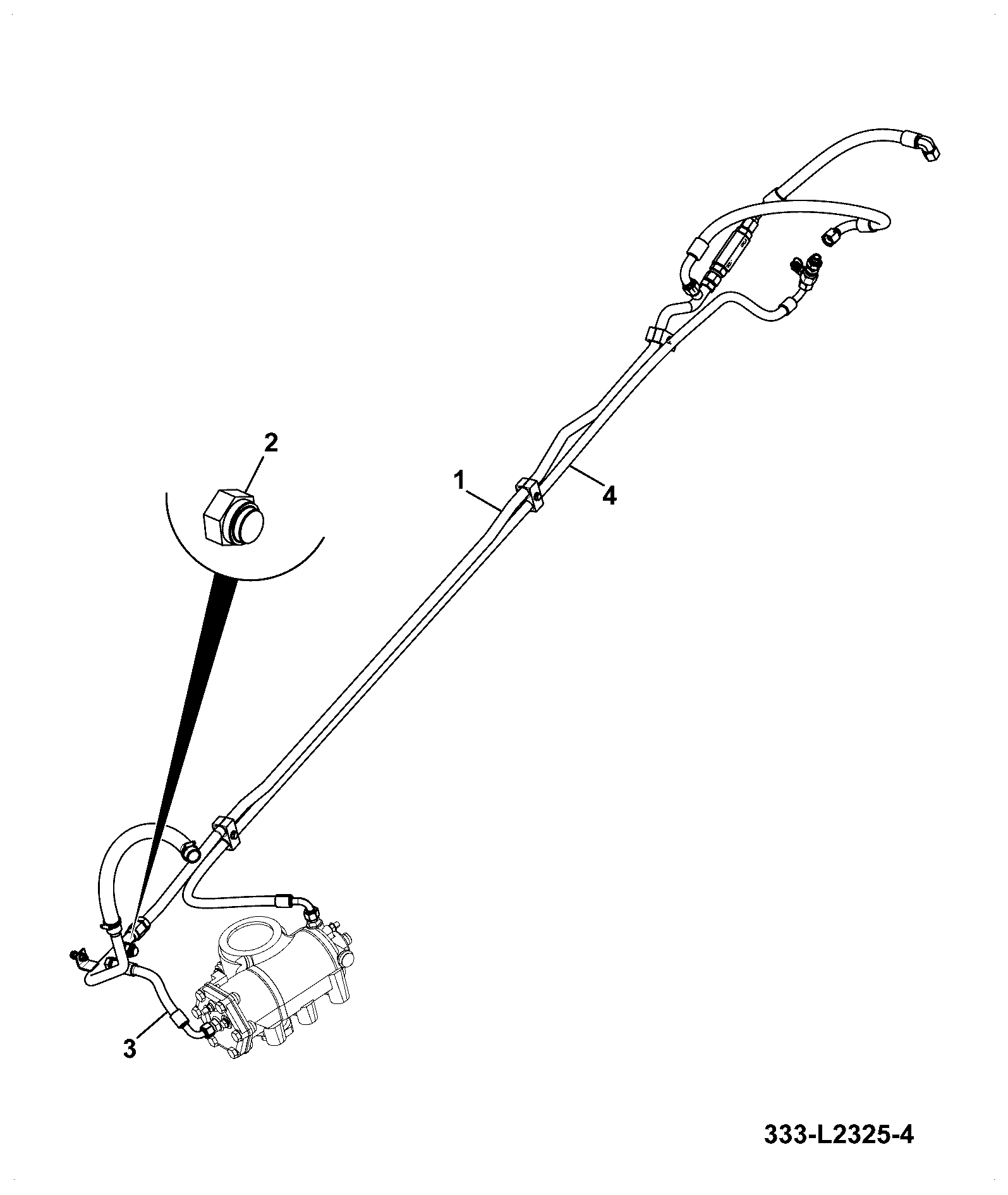

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIPE STEERBOX RETURN 333/V7478 | 1 | $395.79 | |||
| 3 | ADAPTOR 816/90175 | 1 | $29.66 | |||
| 4 | CHECK VALVE INLINE 5 BAR(FPR3-4-5BAR) 335/F8935 | 1 | $107.75 | |||
| 5 | ADAPTOR 1606/2060 | 1 | $9.04 | |||
| 6 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $34.86 | |||
| 7 | BOLT M8x50 1315/3312D | 1 | $4.21 | |||
| 8 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 9 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 10 | ADAPTOR 477/00398 | 1 | $12.71 | |||
| 13 | COOLER PIPE WA 333/S6058 | 1 | $351.69 | |||
| 14 | BOLT M8x35 1315/3309D | 1 | $0.89 | |||
| 15 | (W) (P) CLIP - WORMDRIVE 25/40mm 2201/0007 | 1 | $4.66 | |||
| 17 | COOLER HOSE 334/L1835 | 1 | $29.90 | |||
| 18 | HOSE 5/8 BSP HP 880C 34AM/EA065 | 1 | $97.24 | |||
| 19 | HOSE 332/V2771 | 1 | $207.19 | |||
| 21 | TEST POINT ADAPTOR 400/C7365 | 1 | $158.53 | |||
Showing 1 to 16 of 16 parts
