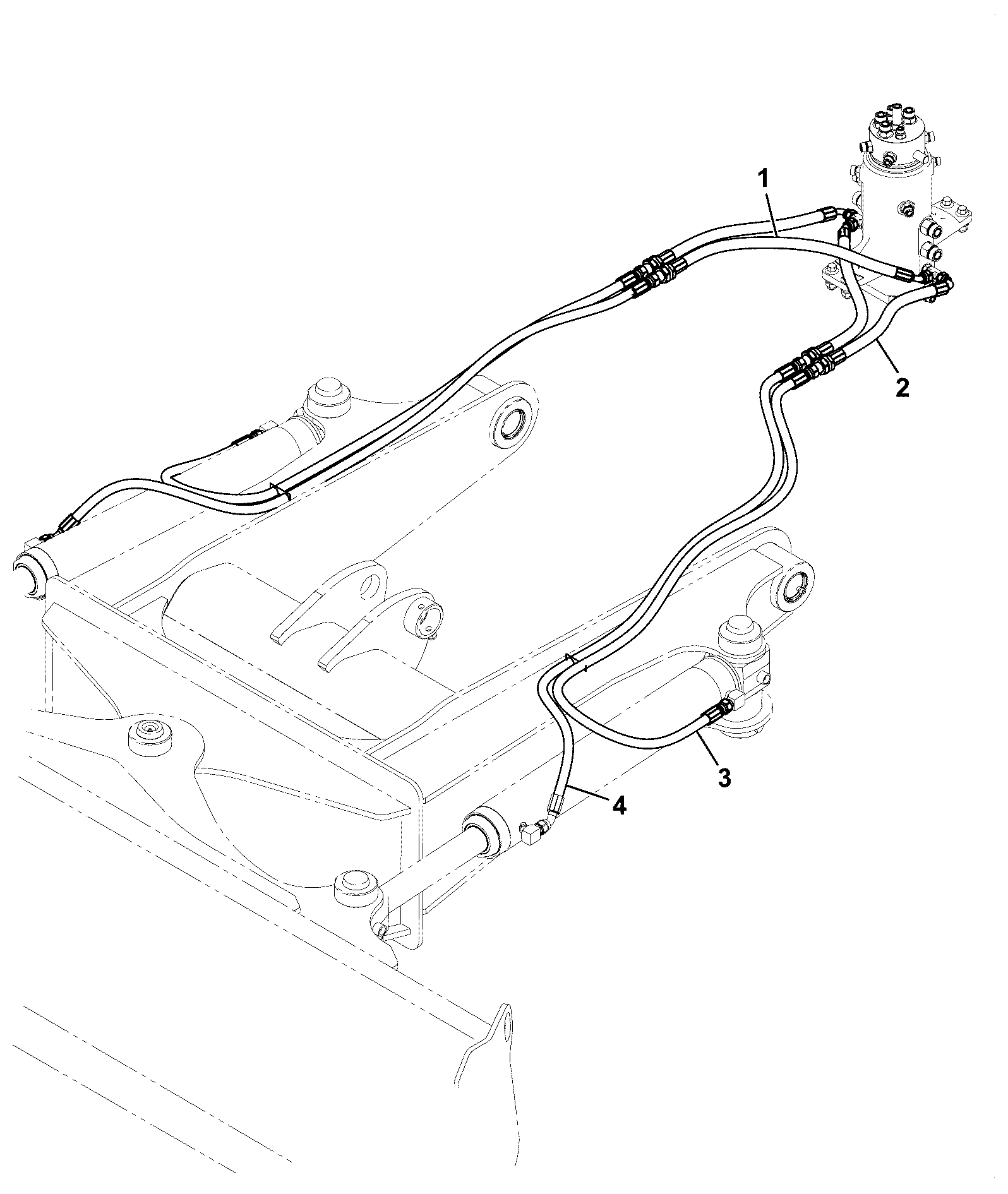

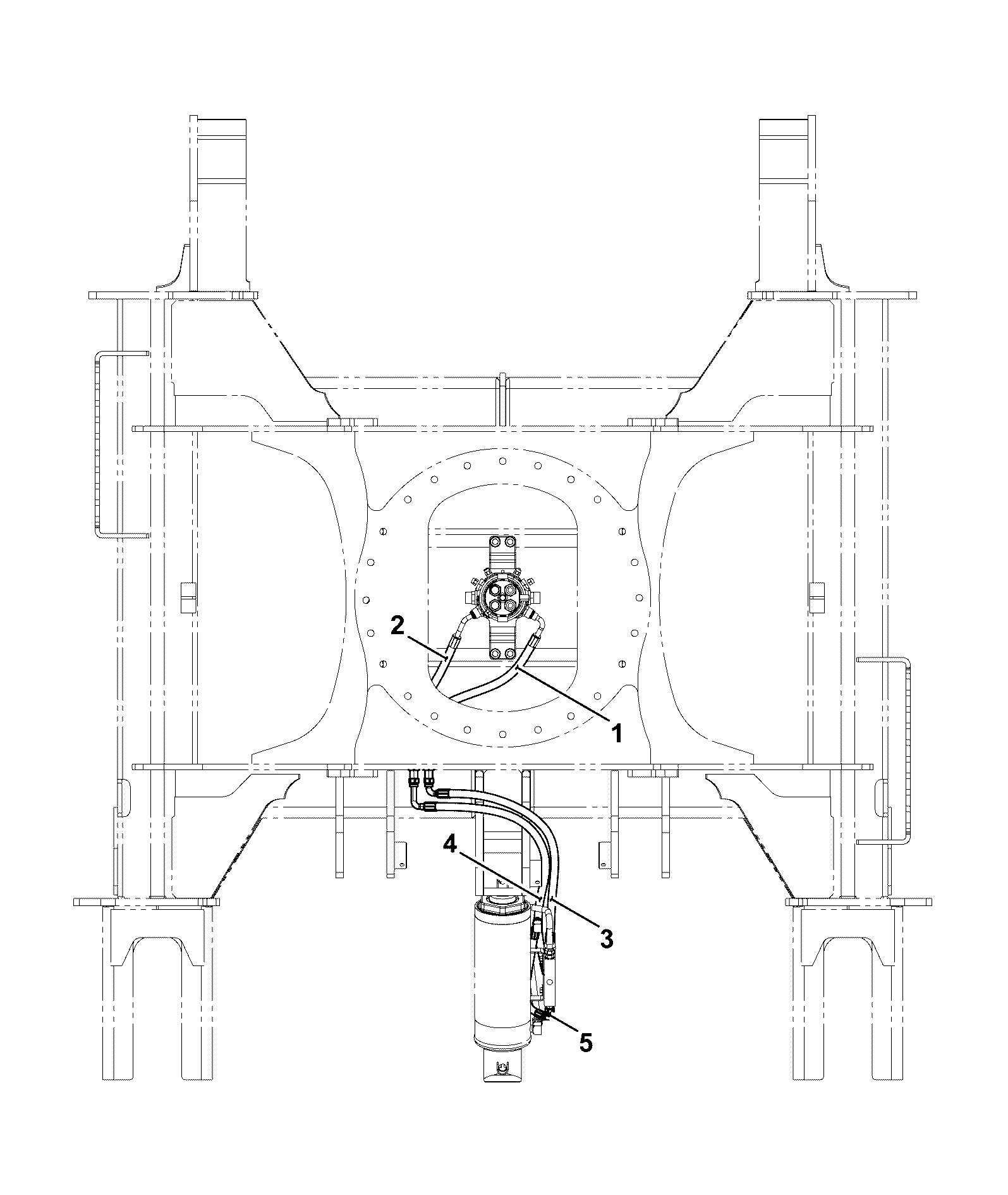

E130-145-1 HYDRAULIC CIRCUITS CHASSIS ASSEMBLY SINGLE AUXILIARY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	HOSE -12 ORFS UHP 480mm C 334/U5026	1	AVAILABLE TO ORDER	$324.76	Quantity
3	ADAPTOR TEST POINT 1759/0606	1	AVAILABLE TO ORDER	$127.33	Quantity
4	HYDRAULIC TEST POINT ADAP 332/V3873 401/N8244	1	AVAILABLE TO ORDER	$19.06	Quantity

Showing 1 to 3 of 3 parts

DIAG-E130-140-1-397771 E130-140-1 HYDRAULIC CIRCUITS CHASSIS ASSEMBLY HOSES, HBCV, DOZER, 2 WAY
View Diagram
DIAG-E130-150-1-397771 E130-150-1 HYDRAULIC CIRCUITS CHASSIS ASSEMBLY DUAL AUXILIARY
View Diagram
DIAG-E130-135-1-397771 E130-135-1 HYDRAULIC CIRCUITS CHASSIS ASSEMBLY HOSES, DOZER, 4 WAY
View Diagram
