Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIPE (kitting) 123/08063 333/F5150 | 1 | $166.87 | |||
| 2 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 3 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 4 | ABI HOSE 3/4 BSP HP 940B SLEEVE 332/H4304 | 1 | $220.03 | |||
| 5 | MOUNT HOSE JUNCTION 332/G1139 | 1 | $357.63 | |||
| 6 | BACK NUT 3/4"BSP 1356/0206Z | 1 | $7.18 | |||
| 7 | ABI HOSE 3/4 BSP HP 2400B SLEEVE 332/H4209 | 1 | $313.23 | |||
| 8 | ADAPTOR - 4 WAY 332/C0421 | 1 | $165.68 | |||
| 9 | DISCHARGED ACCUMULATOR 32/925391 333/C6218 | 1 | $679.45 | |||
| 10 | 9DAPTOR TEE 816/00344 816/90043 | 1 | $24.83 | |||
| 11 | WASHER 1" INT LOCK 1418/0019Z | 1 | $1.97 | |||
| 12 | (W) (P) LABEL - ISO-06A TYPE A 332/F5855 | 1 | $1.89 | |||
| 13 | HOSE 5/8BSP 460mm 34AP/BA046 | 1 | $71.42 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-E130-14-7-394833 E130-14-7 HYDRAULIC CIRCUITS CHASSIS CHANGEOVER ISO/SAE ADVANCED EASYCONTROL
View Diagram -
DIAG-E130-15-10-394833 E130-15-10 HYDRAULIC CIRCUITS CHASSIS STABILISER CONTROL ADVANCED EASYCONTROL
View Diagram -

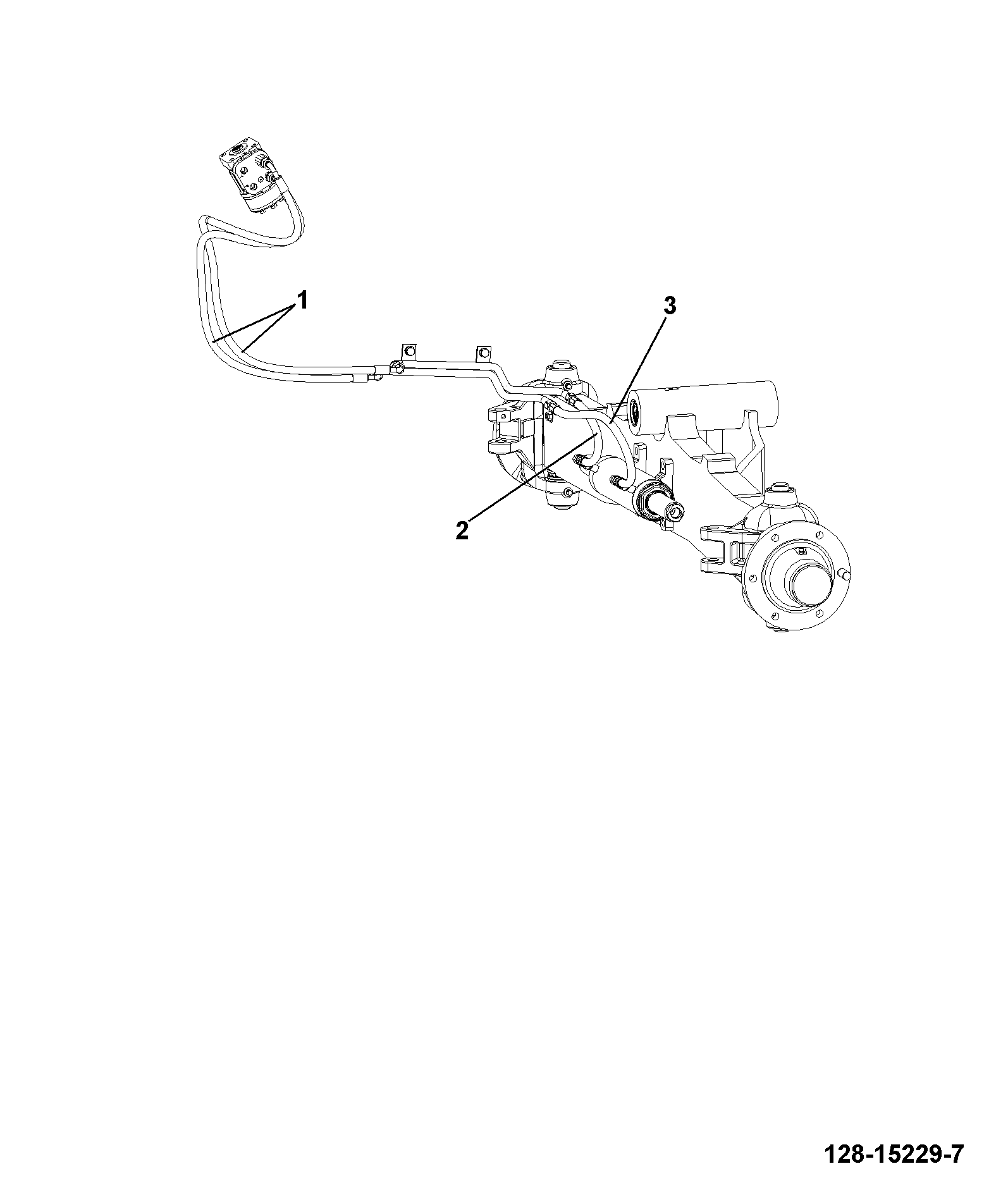

DIAG-E130-11-7-394833 E130-11-7 HYDRAULIC CIRCUITS CHASSIS STEER RAM 2WD
View Diagram
