Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ADAPTOR ELBOW 816/90594 | 1 | $169.51 | |||
| 2 | ADAP ELBOW 3/4 816/90163 | 1 | $18.47 | |||
| 3 | TWIN BULKHEAD BRACKET 332/G0301 | 1 | $157.48 | |||
| 4 | BACK NUT 3/4"BSP 1356/0206Z | 1 | $7.18 | |||
| 6 | HAMMER PIPE - LH 333/F5130 | 1 | $180.44 | |||
| 7 | PIPE (kitting) 123/08063 333/F5150 | 1 | $166.87 | |||
| 8 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 9 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 10 | Hose 333/G6506 | 1 | $227.19 | |||
| 12 | HOSE 3/4BSP 2400mm 333/G6504 | 1 | $224.87 | |||
| 13 | M12x50 CSK BOLT 10.9 826/11658 | 1 | $7.31 | |||
| 14 | ABI HOSE 3/4 BSP HP 1080B 335/F6939 | 1 | $348.97 | |||
| 15 | ABI HOSE 3/4 BSP HP 940B 335/F8620 | 1 | $257.29 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-E130-110-11-394846 E130-110-11 HYDRAULIC CIRCUITS CHASSIS PILOT MANIFOLD ADVANCED EASYCONTROL PLUS
View Diagram -

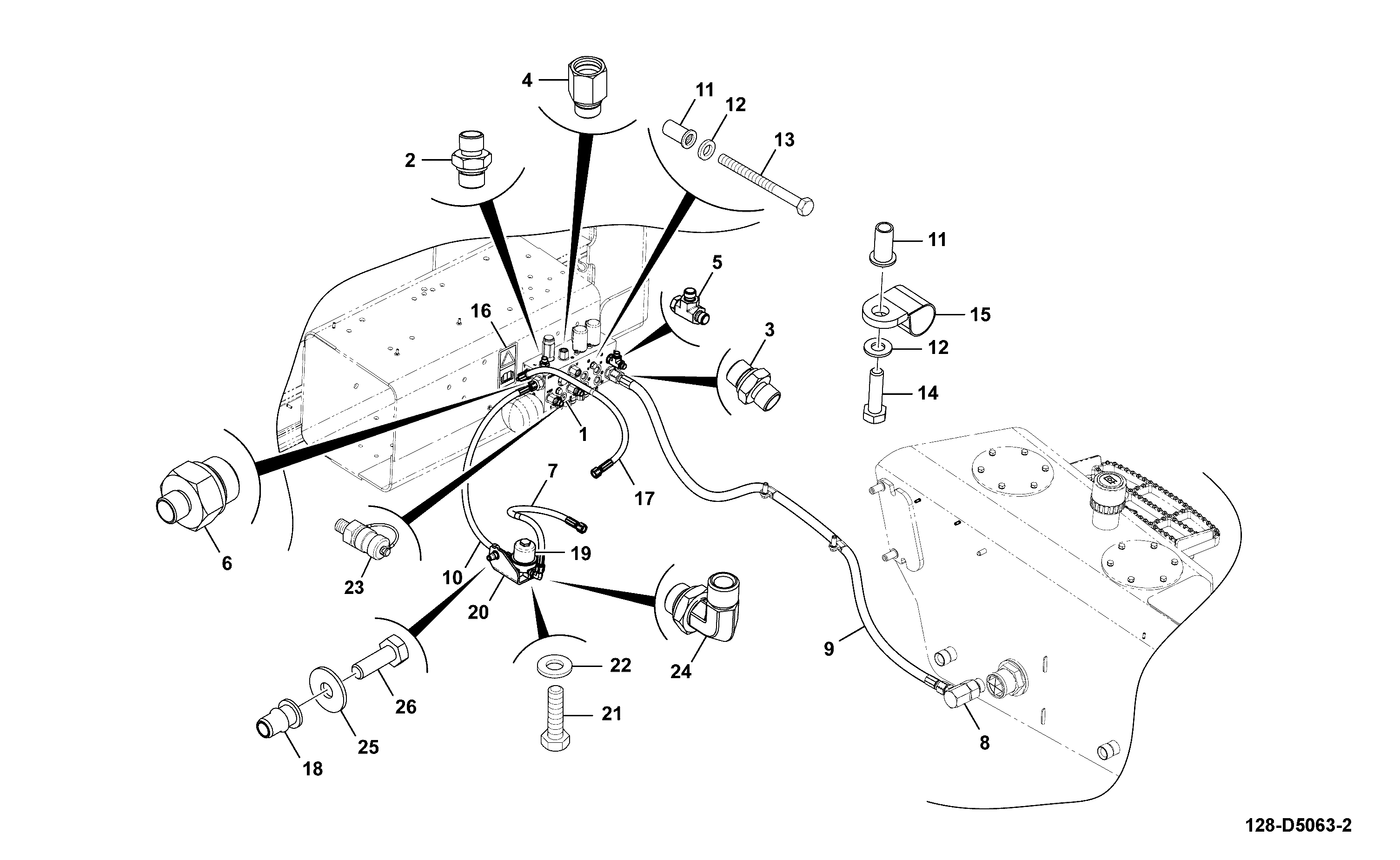

DIAG-E130-144-7-394846 E130-144-7 HYDRAULIC CIRCUITS CHASSIS PILOT MANIFOLD EASYCONTROL, OCVP, T4i
View Diagram -
DIAG-E130-146-3-394846 E130-146-3 HYDRAULIC CIRCUITS CHASSIS AUXILIARY PILOT EASYCONTROL, OCVP, EXTENDING DIPPER, T4i
View Diagram
