Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ADAPTOR ELBOW 816/90594 | 1 | $169.51 | |||
| 2 | ADAP ELBOW 3/4 816/90163 | 1 | $18.47 | |||
| 3 | TWIN BULKHEAD BRACKET 332/G0301 | 1 | $157.48 | |||
| 4 | BACK NUT 3/4"BSP 1356/0206Z | 1 | $7.18 | |||
| 5 | INTERNAL SPRING WASHER ID 27mm 335/B4661 | 1 | $5.03 | |||
| 6 | HAMMER RETURN PIPE 335/10972 | 1 | $68.55 | |||
| 7 | PIPE (kitting) 123/08063 333/F5150 | 1 | $166.87 | |||
| 8 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 9 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 10 | Hose 333/G6506 | 1 | $227.19 | |||
| 11 | ABI HOSE 3/4 BSP HP 940B SLEEVE 332/H4304 | 1 | $220.03 | |||
| 12 | HOSE 3/4BSP 2400mm 333/G6504 | 1 | $224.87 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-

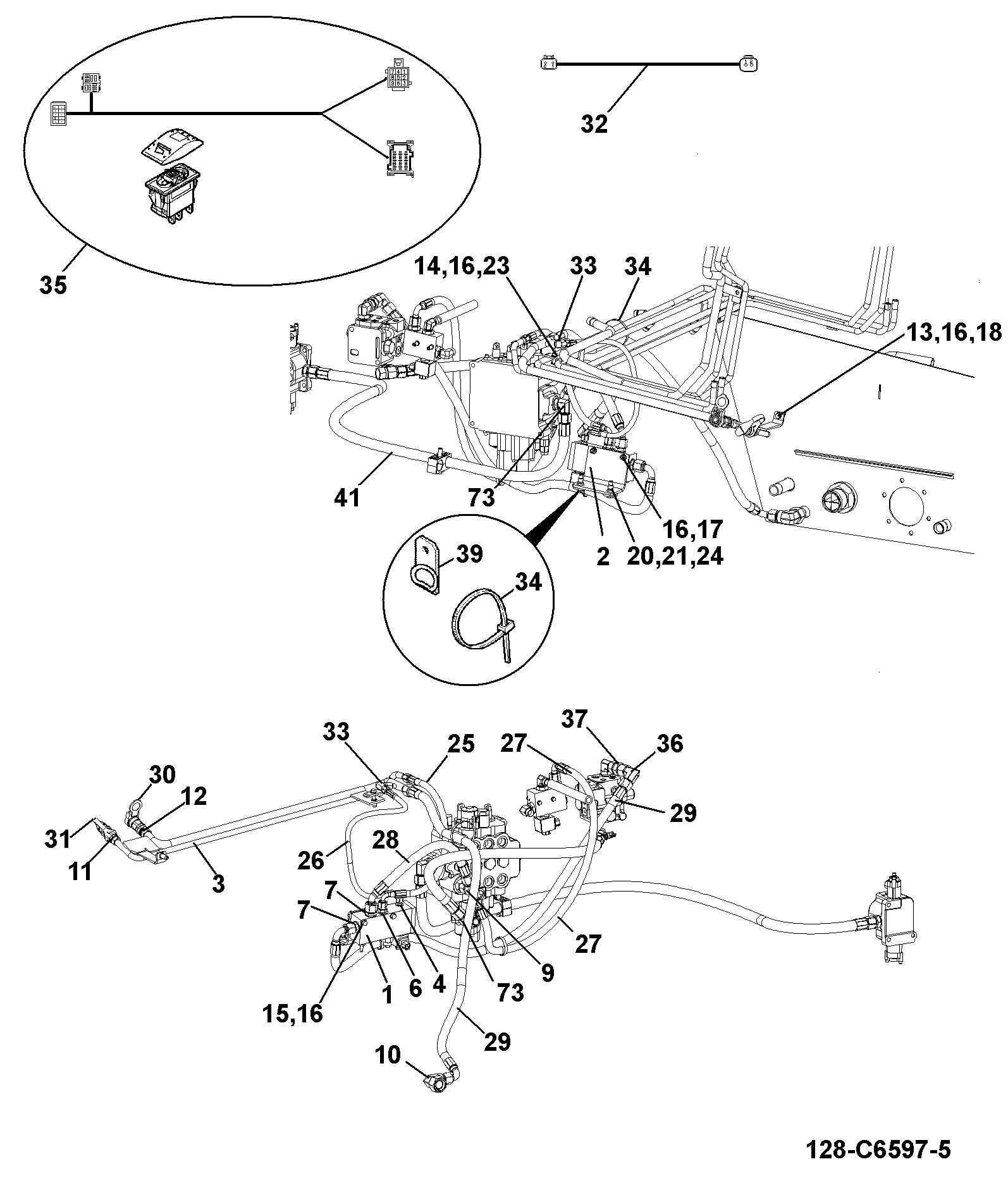

DIAG-E130-136-3-394857 E130-136-3 HYDRAULIC CIRCUITS CHASSIS HAND HELD TOOLS DIRECT CONTROL WITH EXTENDING DIPPER
View Diagram -
DIAG-E130-117-3-394857 E130-117-3 HYDRAULIC CIRCUITS CHASSIS CHANGEOVER VALVE TO AUXILIARY VALVE, TWIN BI-DIRECTIONAL
View Diagram -

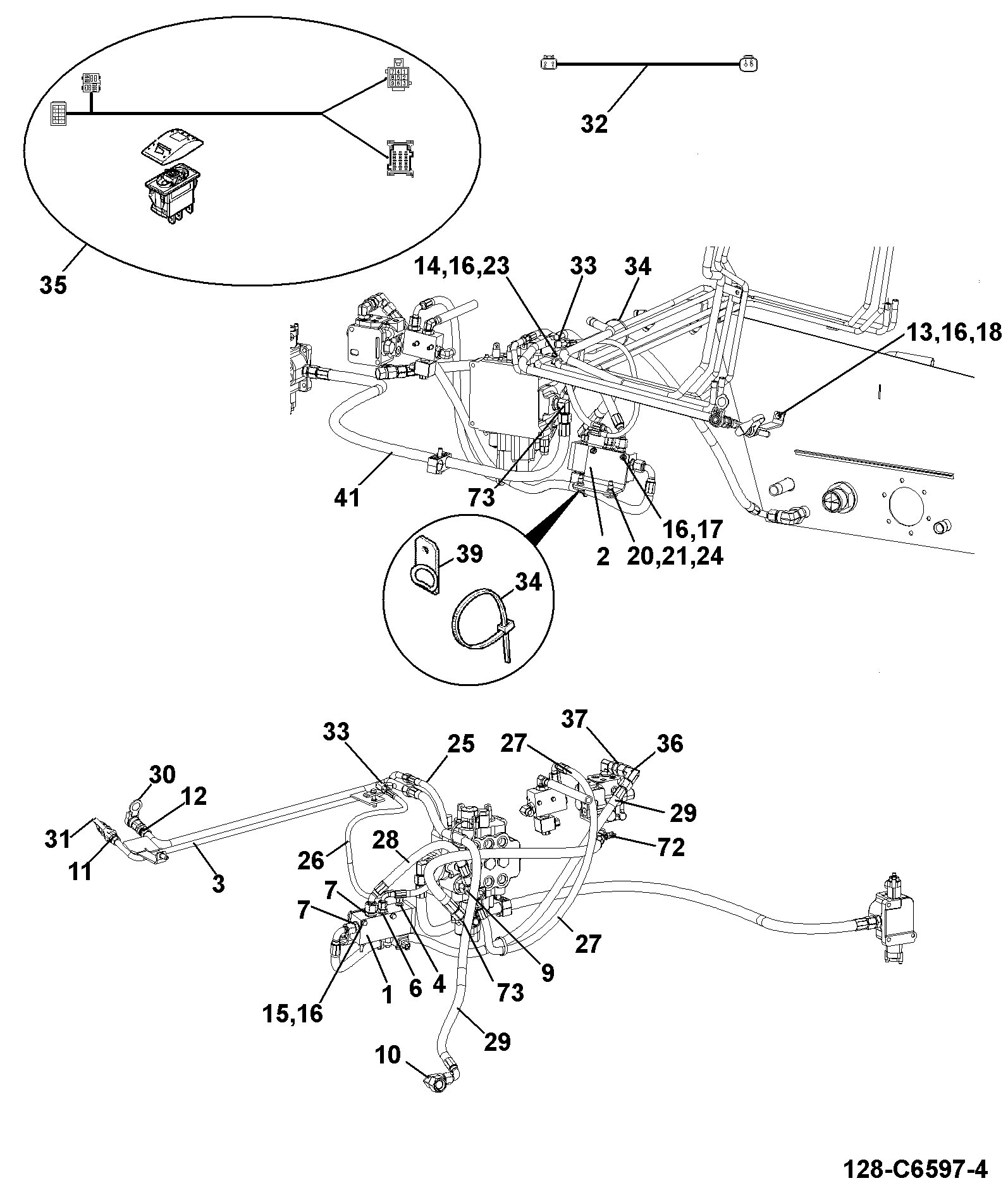

DIAG-E130-136-6-394857 E130-136-6 HYDRAULIC CIRCUITS CHASSIS HAND HELD TOOLS DIRECT CONTROL WITH EXTENDING DIPPER
View Diagram
