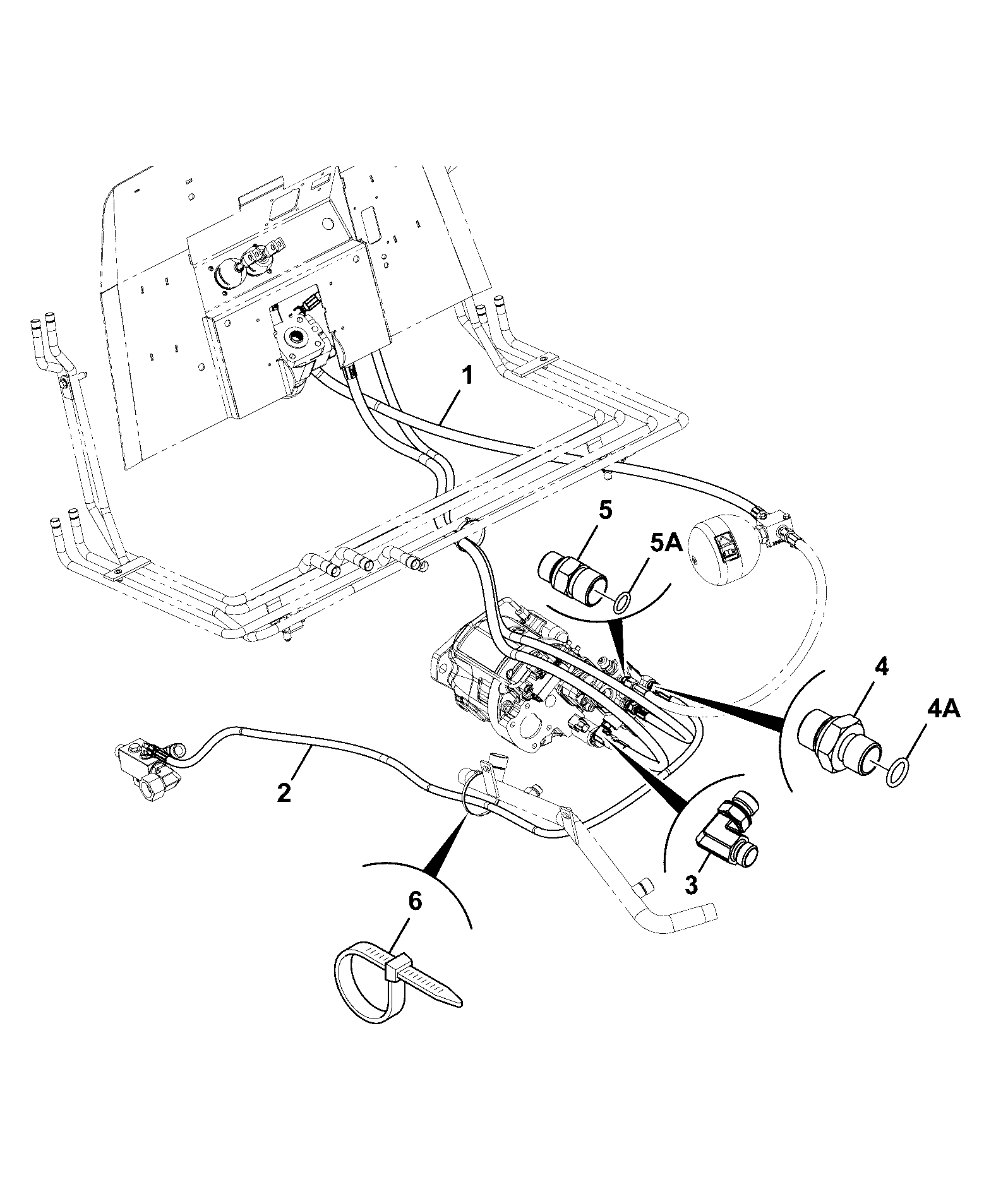

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ABI SHUTTLE VALVE 334/E7238 | 1 | $118.64 | |||
| 2 | PRESSURE TRANSDUCER 400/S1305 | 1 | $165.85 | |||
| 4 | ADAPTOR 1/4 BSP TEE-M/F/M 816/90013 | 1 | $80.41 | |||
| 6 | HARNESS PRESSURE TRANS 721/F7583 | 1 | $29.80 | |||
| 10 | BRACKET 334/F3179 | 1 | $15.60 | |||
| 11 | SET SCREW M6x35 1315/0209D | 1 | $0.58 | |||
| 12 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 13 | RIVET NUT M6 826/01810 | 1 | $2.65 | |||
| 14 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 16 | SETSCREW M8x35 1315/0309D | 1 | $2.40 | |||
| 17 | P CLIP M8 28MM FIXING(KANBAN) (BR3) 821/10474 | 1 | $6.05 | |||
| 18 | ELBOW G1/4A X 9/16UNF 816/90618 | 1 | $21.13 | |||
| 19 | 1/4 BSP HP HOSE 500A 31AP/AA050 | 1 | $34.95 | |||
| 20 | HOSE 1/4BSP 380mm 31AP/AA038 | 1 | $32.60 | |||
| 21 | CABLE TIE - BLACK 210mm 826/01453 | 1 | $1.49 | |||
| 22 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 23 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-
DIAG-E130-115-1-394807 E130-115-1 HYDRAULIC CIRCUITS CHASSIS EXCAVATOR VALVE TO STABILISER RAMS 92" DOUBLE LOCKOUT
View Diagram -
DIAG-E130-145-1-394807 E130-145-1 HYDRAULIC CIRCUITS CHASSIS HIGH FLOW HAMMER RETURN, 92" SIDESHIFT, OCVP
View Diagram -
DIAG-E130-105-1-394807 E130-105-1 HYDRAULIC CIRCUITS CHASSIS STEER PRIORITY VALVE ADVANCED EASYCONTROL, T4F
View Diagram
