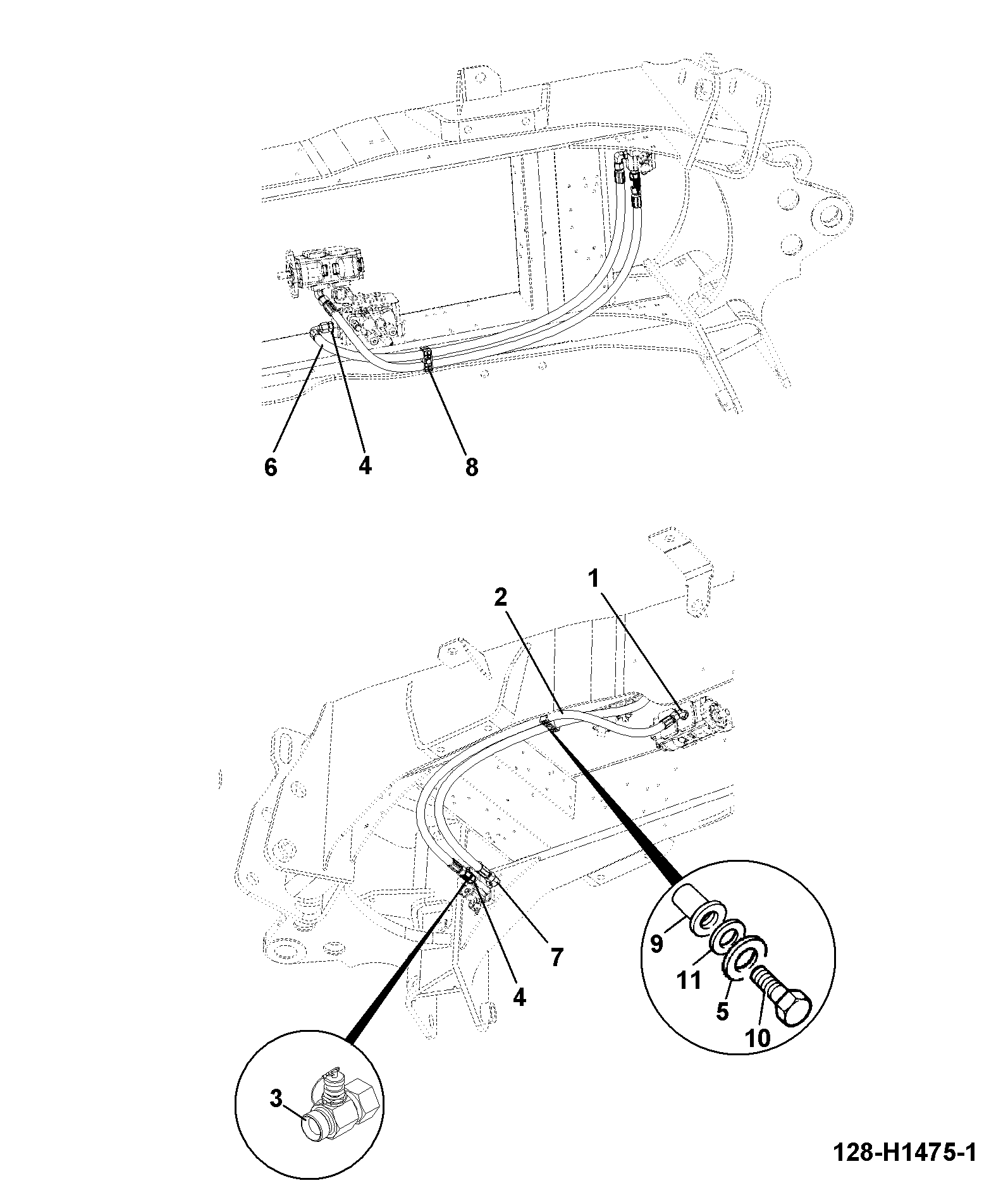

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 'O' RING (P564) 2401/0507 | 1 | $1.46 | ||||
| O-RING 2401/0505 | 1 | $2.54 | ||||
| O-RING 2401/0506 | 1 | $1.46 | ||||
| RIVET NUT-M8 (BR3) 826/01103 | 1 | $1.46 | ||||
| 1 | ABI PILOT MANIFOLD 128/G5234 | 1 | $2,996.34 | |||
| 2 | ABI MOUNT pilot valve 128/F4511 | 1 | $44.97 | |||
| 3 | ADAPTOR TEE POSITIONAL 332/C6843 | 1 | $15.23 | |||
| 4 | Adapter 1"BSP x 1/ 816/90753 | 1 | $27.29 | |||
| 5 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 6 | (W) (P) Q/R COUPLING 9/16 332/C0191 | 1 | $54.58 | |||
| 7 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 8 | 'Adapter Pressure Test Point 9/16-18UNF 45/908000 | 1 | $132.58 | |||
| 10 | HOSE 1/4BSP 660mm 31AP/BA066 | 1 | $46.61 | |||
| 11 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 13 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 15 | ADAPTOR 7/8SAE x G1/4A 816/90365 | 1 | $43.32 | |||
| 16 | P-CLIP 20 I/D 332/C5679 | 1 | $5.61 | |||
| 17 | BOLT M8x80(KANBAN) 1315/3318Z | 1 | $2.44 | |||
| 18 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 19 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 20 | Hose 23AP/AA136 | 1 | $92.14 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-E130-106-2-394843 E130-106-2 HYDRAULIC CIRCUITS CHASSIS LOW FLOW GEARPUMP 1, CENTREMOUNT
View Diagram -
DIAG-E130-99-7-394843 E130-99-7 HYDRAULIC CIRCUITS CHASSIS EXCAVATOR VALVE TO STABILISER RAMS 88" DOUBLE LOCKOUT
View Diagram -
DIAG-E130-117-2-394843 E130-117-2 HYDRAULIC CIRCUITS CHASSIS CHANGEOVER VALVE TO AUXILIARY VALVE, TWIN BI-DIRECTIONAL
View Diagram
