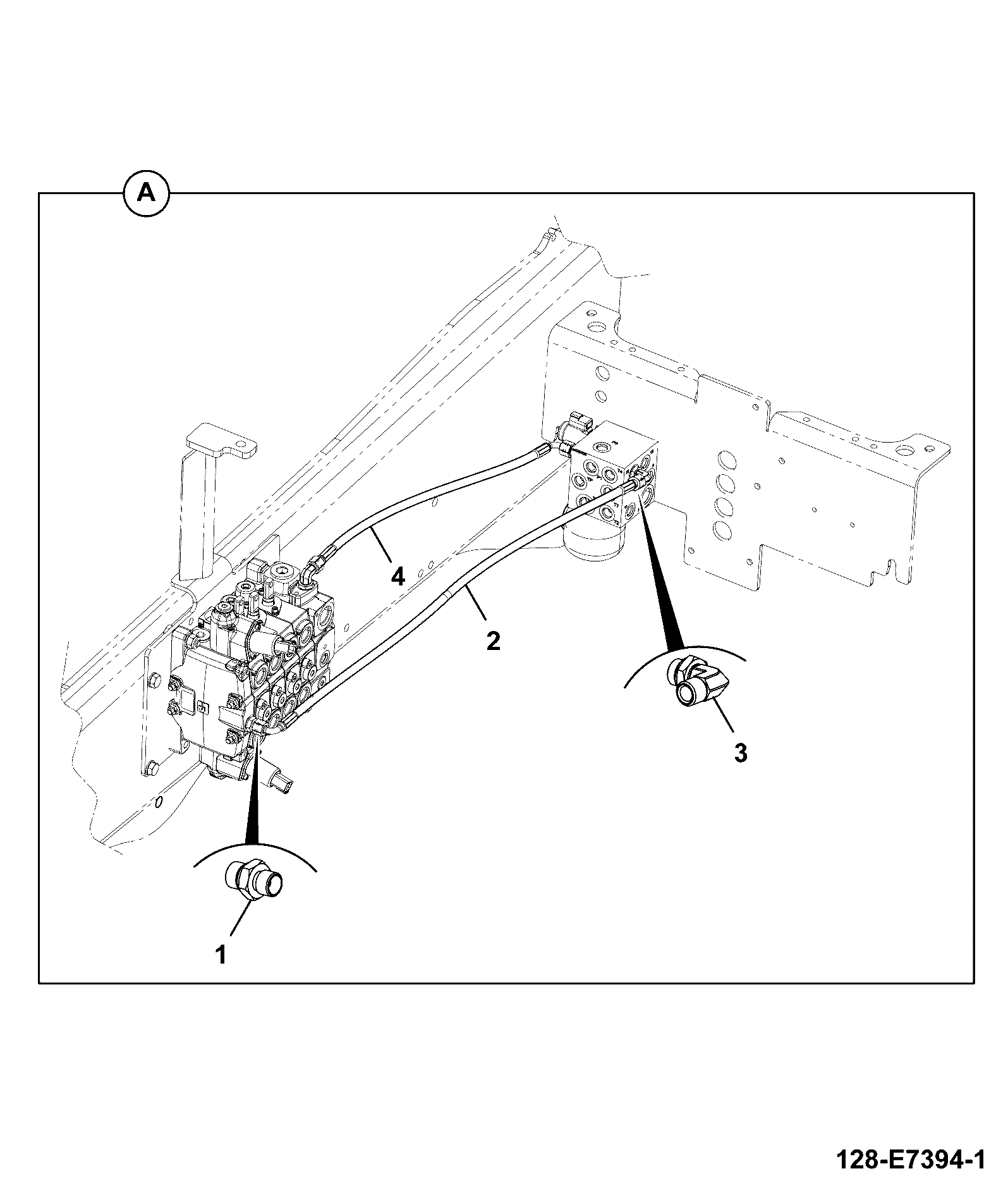

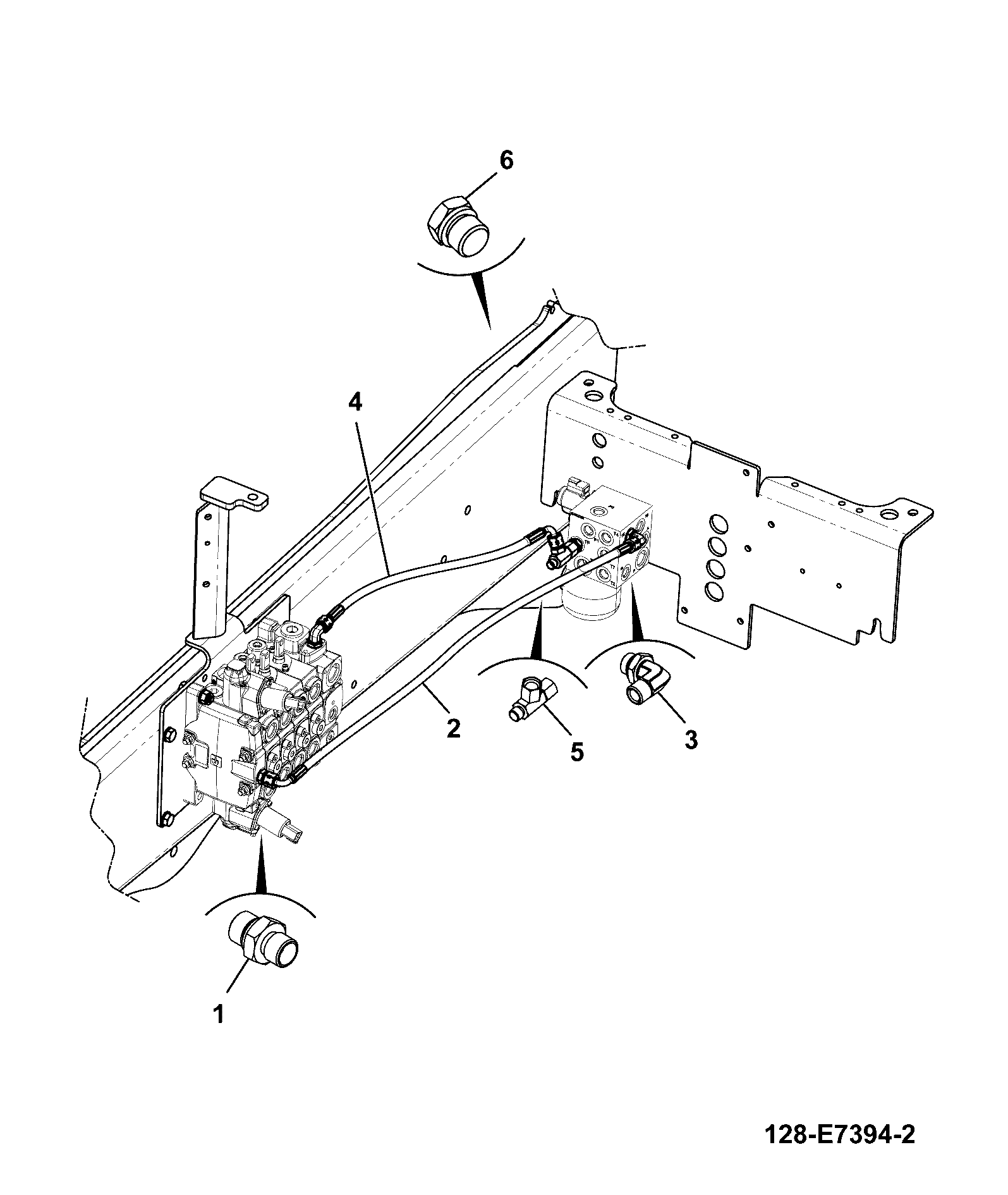

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | COUPLING QR FEMALE 1/4BSP 45/920119 | 1 | $170.50 | |||
| 3 | WASHER 1/2 1417/0014Z 1417/0014D | 1 | $1.16 | |||
| 4 | BACK NUT 1/4 BSP 1356/0202Z | 1 | $13.54 | |||
| 5 | HOSE 1/4 BSP LP 340B 11AP/BA034 | 1 | $52.57 | |||
| 6 | Hose 11AP/BA042 | 1 | $39.35 | |||
| 7 | HOSE 1/4 BSP LP 540B 11AP/BA054 | 1 | $35.63 | |||
| 8 | HOSE 1/4 BSP LP 600B 11AP/BA060 | 1 | $43.54 | |||
| 9 | HOSE-04 BSP LP 280mm B 11AP/BA028 | 1 | $36.32 | |||
| 10 | HOSE 1/4 BSP LP 500B 11AP/BA050 | 1 | $41.32 | |||
| 11 | HOSE 1/4 BSP LP 700B 11AP/BA070 | 1 | $45.96 | |||
| 12 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 13 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 15 | CABLE TIE 100mm orange (R) 826/11298 | 1 | $0.58 | |||
| 16 | CABLE TIE 100mm blue (R) 826/11295 | 1 | $0.38 | |||
| 17 | CABLE TIE 100mm green (R) 826/11297 | 1 | $0.50 | |||
| 18 | CABLE TIE 100mm yellow 826/11319 | 1 | $0.38 | |||
| 19 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 20 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 21 | (W) (P) Q/R COUPLING 9/16 332/C0191 | 1 | $54.58 | |||
Showing 1 to 19 of 19 parts
