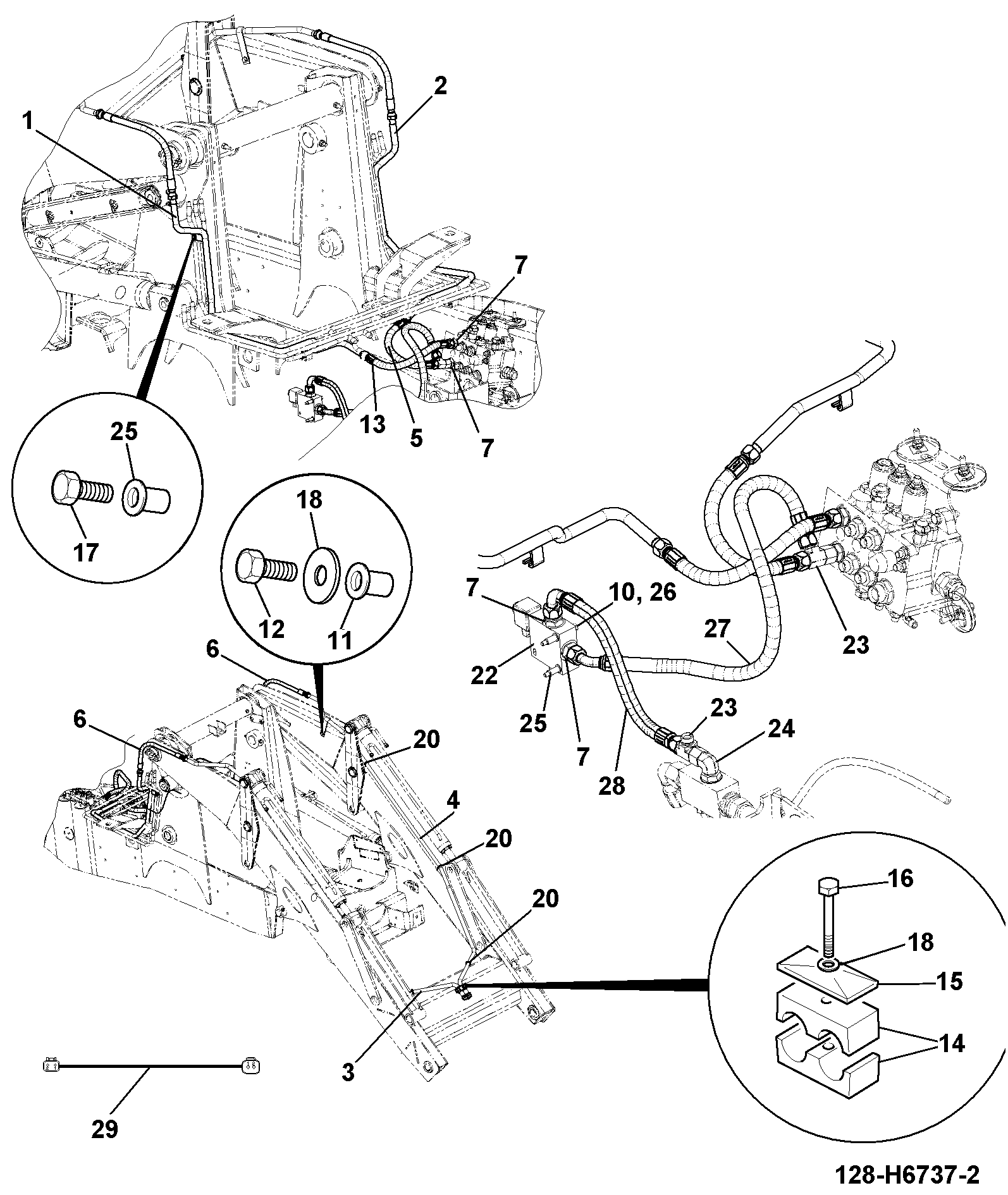

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ADAPTOR G5/8A X G3/8 332/G9222 | 1 | $30.96 | ||||
| 1 | WA AUXILARY PIPE LH 335/07274 | 1 | $324.10 | |||
| 2 | WA AUXILARY PIPE RH 335/07275 | 1 | $289.26 | |||
| 3 | R/H PIPE loader long 5/8 335/08592 332/F0910 | 1 | $344.94 | |||
| 4 | L/H PIPE loader long 5/8 335/08593 332/F0919 | 1 | $330.00 | |||
| 5 | HOSE 5/8BSP 475mm 614/80089 | 1 | $57.86 | |||
| 7 | ADAPTOR G5/8A-1-1/16UNF(M) 1620/0008 1620/2057 | 1 | $25.23 | |||
| 8 | HOSE 5/8BSP 800mm 614/03200 | 1 | $99.82 | |||
| 9 | PLUG BLANKING 5/8 BSP M 816/90913 | 1 | $15.33 | |||
| 11 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 12 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 13 | hose 614/03000 | 1 | $65.31 | |||
| 14 | DUAL HOSE CLAMP SET 821/10431 | 1 | $1.52 | |||
| 15 | CLAMP PLATE 821/00496 | 1 | $4.93 | |||
| 16 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 17 | (W) (Pre-P)-BOLT M8x55 1315/3313Z | 1 | $2.47 | |||
| 18 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 25 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 26 | O RING 2401/0203 | 1 | $0.65 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-E120-8-102-394947 E120-8-102 HYDRAULIC CIRCUITS LOADER END LOADER AUXILIARY 5/8", LONG ARMS, ADVANCED EASYCONTROL, 4CXM
View Diagram -
DIAG-E120-9-8-394947 E120-9-8 HYDRAULIC CIRCUITS LOADER END LOADER CROSSOVER SMOOTH RIDE SYSTEM BUILDS
View Diagram -

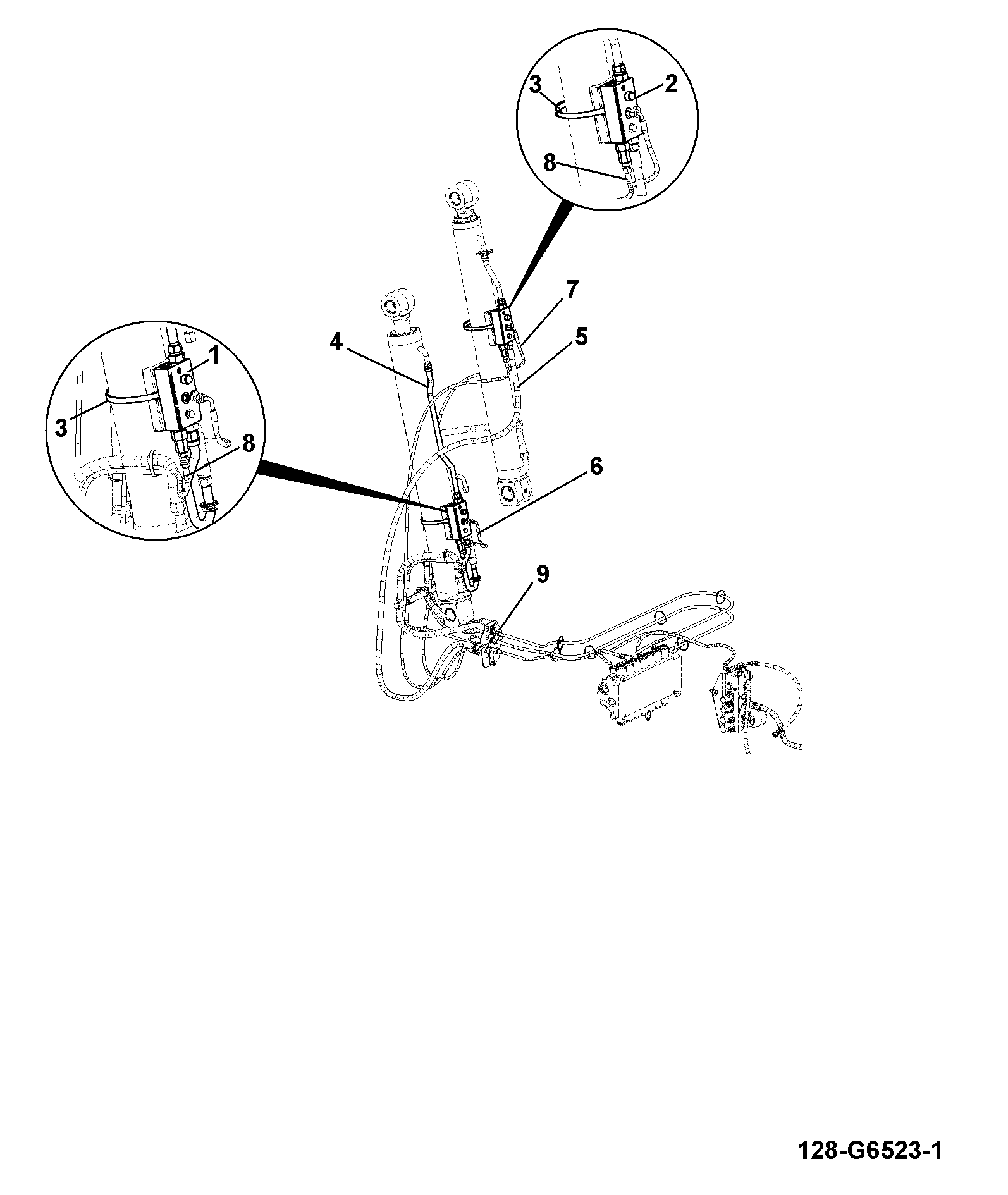

DIAG-E100-130-1-394947 E100-130-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES BOOM AND DIPPER LOCKOUT, 15' 6" SIDESHIFT ADVANCED EASYCONTROL
