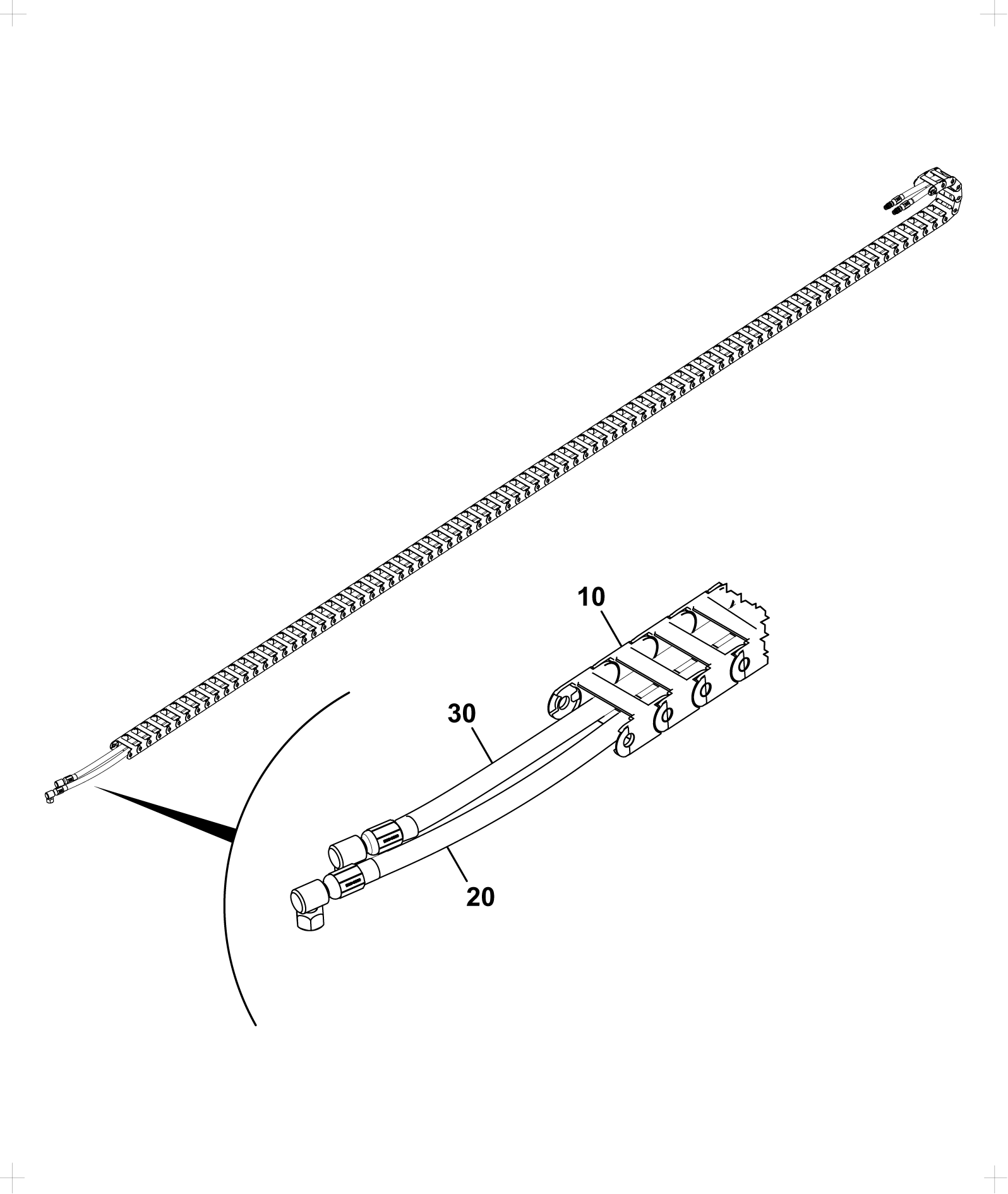

E120-75-1 HYDRAULIC CIRCUITS LOADER END LIFT END, ENERGY CHAIN Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	SA E-CHAIN - 5AX 333/E8854	1	AVAILABLE TO ORDER	$947.10	Quantity
20	SA HOSE - 4460 LIGHT GREEN 334/P4581	1	AVAILABLE TO ORDER	$271.23	Quantity
30	SA HOSE - 4500 RED 334/P4583	1	AVAILABLE TO ORDER	$271.23	Quantity

Showing 1 to 3 of 3 parts
