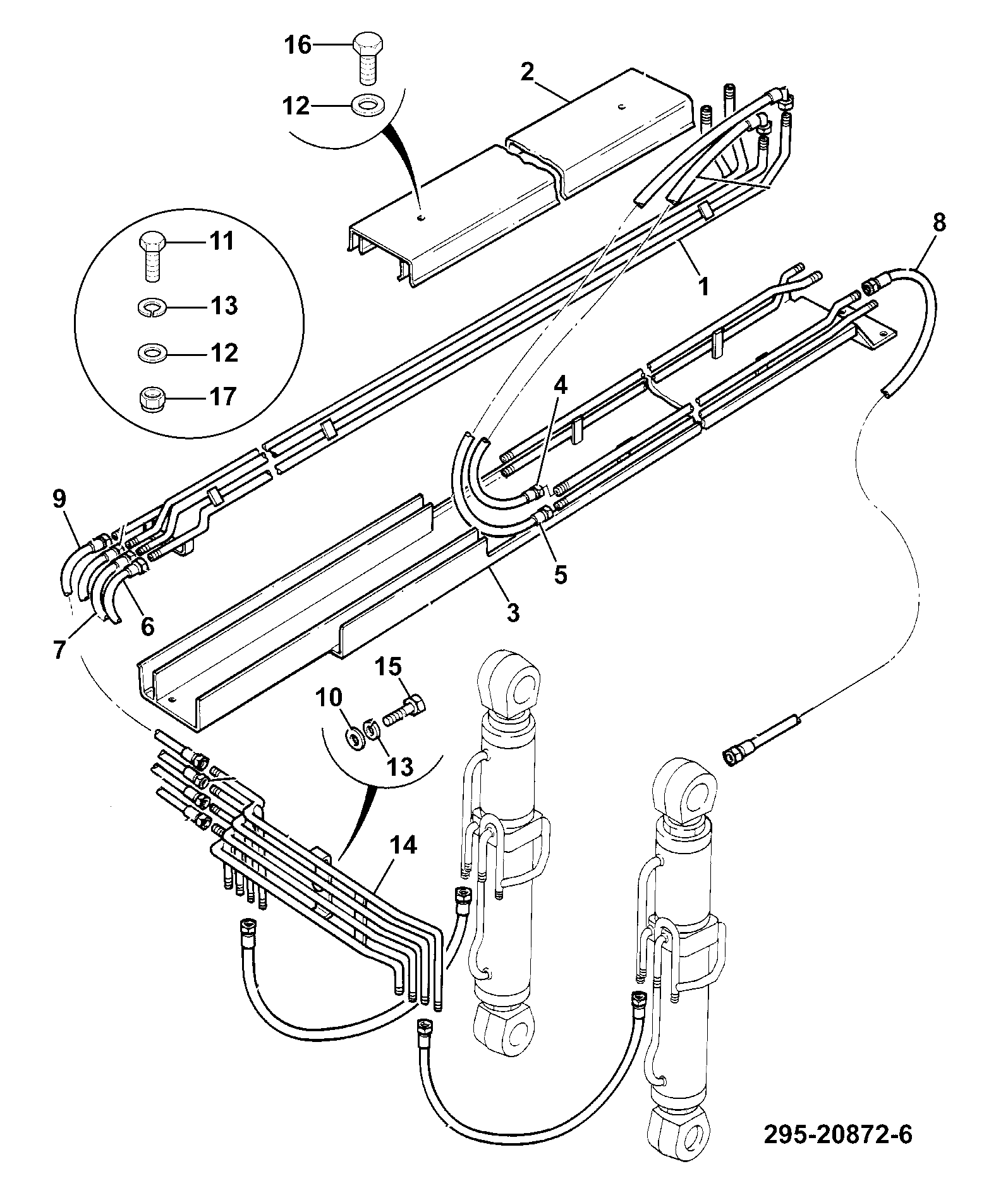

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | W.A. PIPE-STANDARD 3.5T 830/13367 | 1 | $1,308.53 | |||
| 2 | W.A. HOSE TRAY 1ST AUX. 3.5T 650/10274 | 1 | $1,022.83 | |||
| 3 | COVER AUX. SIDE TRAY - 3.5T - BLACK 650/10272 | 1 | $582.66 | |||
| 4 | (P) SCREW NO8X3/4 (P512/513) 1430/0204 | 1 | $1.05 | |||
| 5 | BLANKING CAP 3/4 UNF 333/E5318 | 1 | $9.96 | |||
| 6 | AUX. PIPE WEAR PAD 331/59531 | 1 | $38.61 | |||
| 7 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 8 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 9 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 12 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 13 | W.A. PIPE - REAR AUX. 335/04041 | 1 | $723.02 | |||
| 14 | HOSE 3/8BSP 2350mm 612/80223 | 1 | $104.07 | |||
| 16 | HOSE 3/8" BSP X 13 612/72013 | 1 | $187.04 | |||
| 17 | HOSE 3/8" BSP X 14 612/72014 | 1 | $195.08 | |||
| 18 | 811/10106 295/10078 | 1 | $138.55 | |||
| 19 | BRACKET 331/59479 | 1 | $26.99 | |||
| 20 | HOSE 3/8BSP 612/36800 | 1 | $134.48 | |||
| 22 | ADAPTOR (M/M) 816/17071 816/90152 | 1 | $9.04 | |||
| 24 | SCREW CSK M8X35 826/01814 | 1 | $2.91 | |||
| 25 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 26 | BRACKET - QUICK RELEASE 331/42793 | 1 | $25.47 | |||
| 27 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 29 | ADAPTOR 816/90070 | 1 | $94.06 | |||
| 30 | BRACKET WATER HOSE 295/10108 | 1 | $155.56 | |||
| 31 | CLIP - WORMDRIVE 120/140mm(KANBAN) 2201/0017 | 1 | $11.32 | |||
| 32 | HOSE CLAMP 242/00373 | 1 | $8.66 | |||
| 33 | CLAMP INSERT 821/00182 | 1 | $4.74 | |||
| 34 | TWIN CLAMP MOULDING 821/00347 | 1 | $31.20 | |||
| 35 | COVER PLATE and bolt 821/00169 821/00169A | 1 | $1.92 | |||
| 36 | SETSCREW M8x35 1315/0309D | 1 | $2.40 | |||
| 38 | SLEEVING - POLY 43.5mmx65 647/10101 | 1 | $20.04 | |||
Showing 1 to 31 of 31 parts
