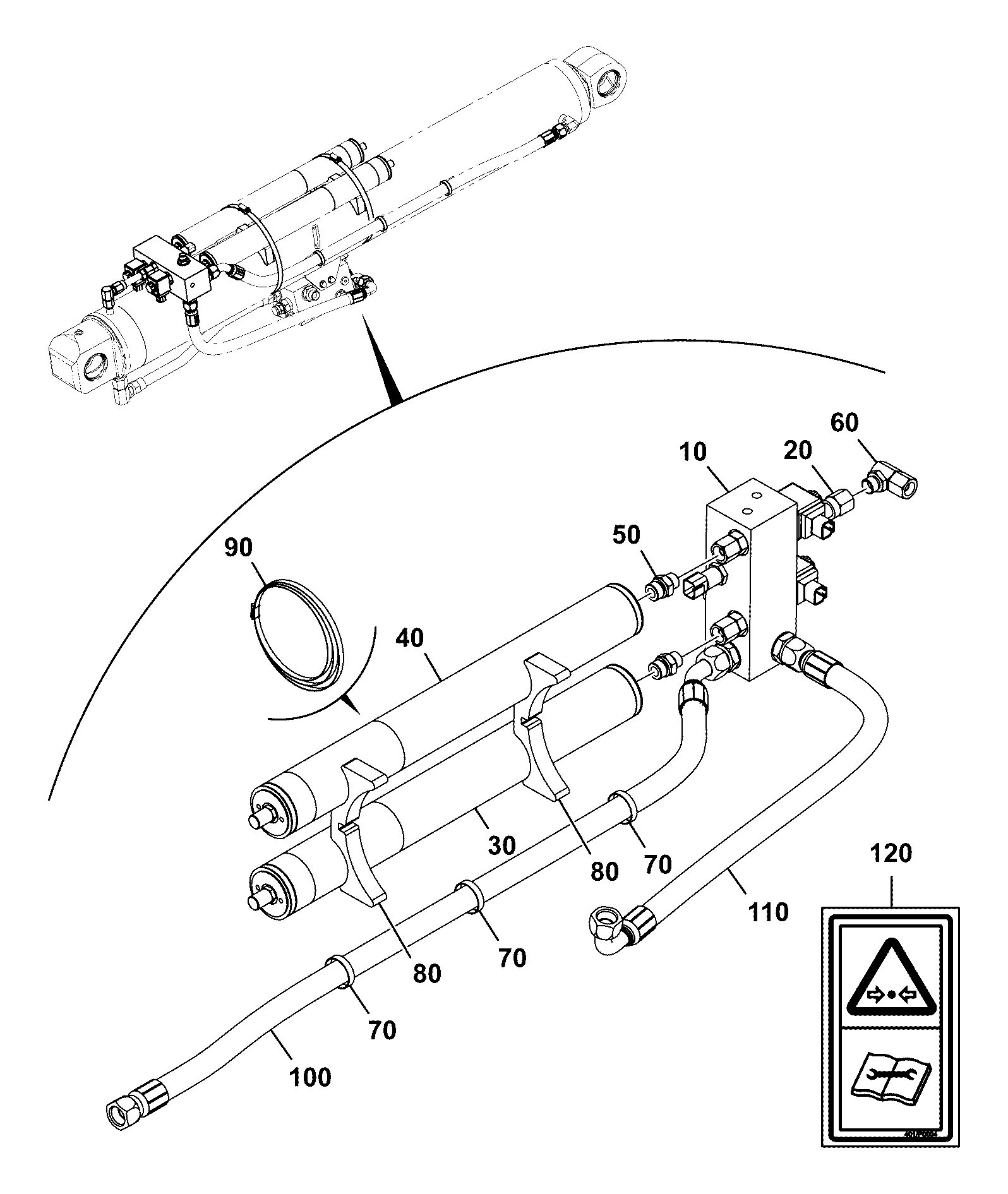

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | WA LH BOOM PIPES 5AW/5TW 332/G7459 | 1 | $559.66 | |||
| 20 | WA RH BOOM PIPES 5AW/5TW 332/L7342 | 1 | $1,362.56 | |||
| 30 | WA LH EXT PIPE 5AW/5TW 333/D0981 | 1 | $395.13 | |||
| 40 | WA RH EXT PIPE 5AW/5TW 333/D1326 | 1 | $390.90 | |||
| 50 | WA HOSE CLAMP 333/F6098 | 1 | $259.42 | |||
| 60 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 70 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 80 | (W) SET SCREW M8x40 1315/0310Z | 1 | $1.55 | |||
| 90 | CLAMP HOUSING 821/00307 | 1 | $32.36 | |||
| 100 | CLAMP PLATE 332/C2625 | 1 | $10.34 | |||
| 110 | (W) (P) SET SCREW M6x40 1315/0210Z | 1 | $6.06 | |||
| 120 | HOSE -08 BSP HP 7920mm B 333/C1085 | 1 | $551.13 | |||
| 130 | HOSE -10 BSP HP 550 mm B 614/80055 | 1 | $61.53 | |||
| 140 | SA HOSE 04 2100 WHITE 333/C9896 | 1 | $138.84 | |||
| 150 | 3/8 BSP HOSE HIGH PRESS 612/80051 | 1 | $55.29 | |||
| 160 | HOSE 3/8 BSP 620mm Long 612/80394 | 1 | $105.13 | |||
| 170 | HOSE -06 HP BSP 470mm B 612/24600 | 1 | $121.32 | |||
| 180 | HOSE 612/42600 | 1 | $72.20 | |||
| 190 | CABLE TIE LOCKING(KANBAN) 826/11436 | 1 | $2.75 | |||
| 200 | SA HOSE 04 2100 RED 333/C9421 | 1 | $138.84 | |||
Showing 1 to 20 of 20 parts
