| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

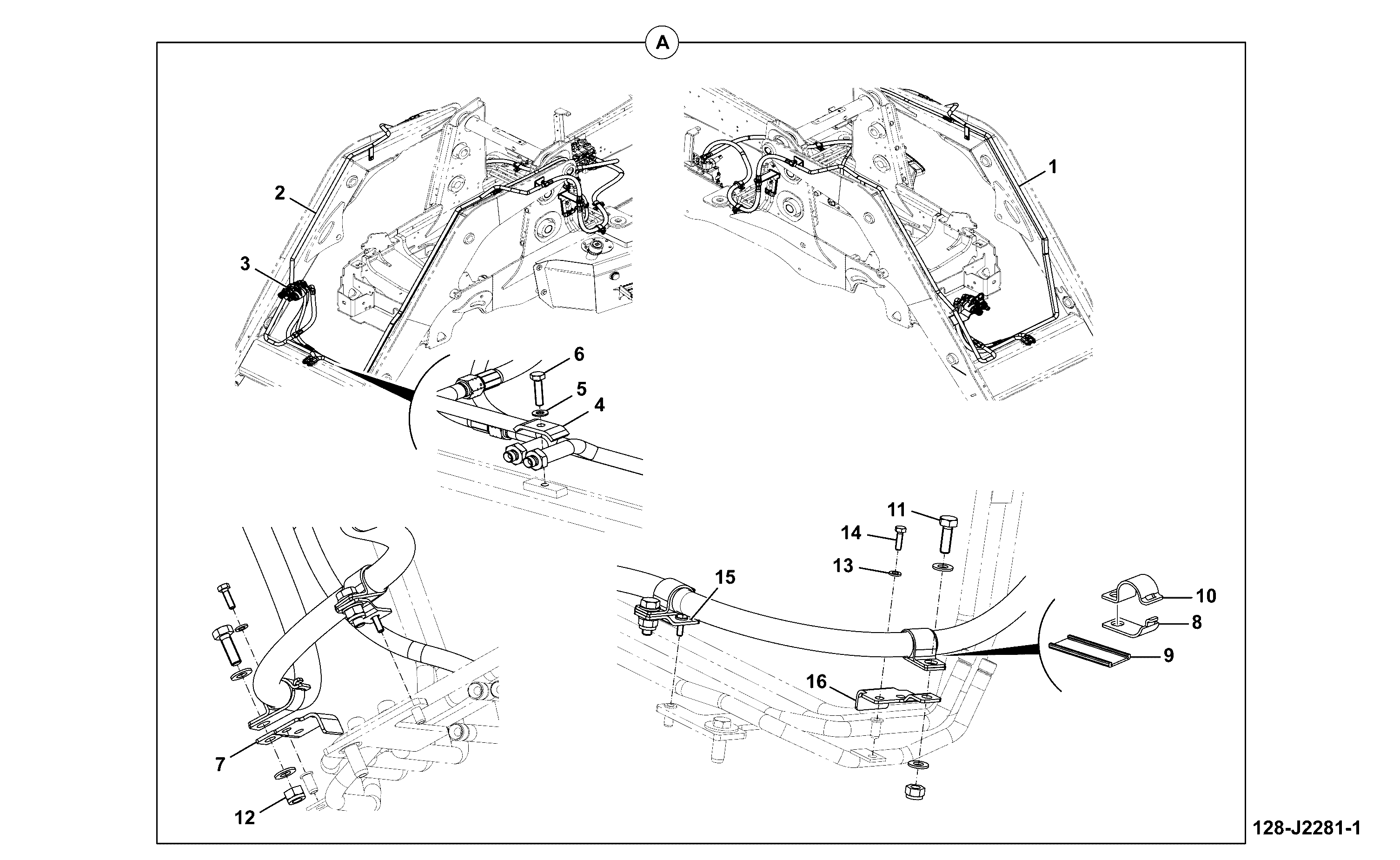

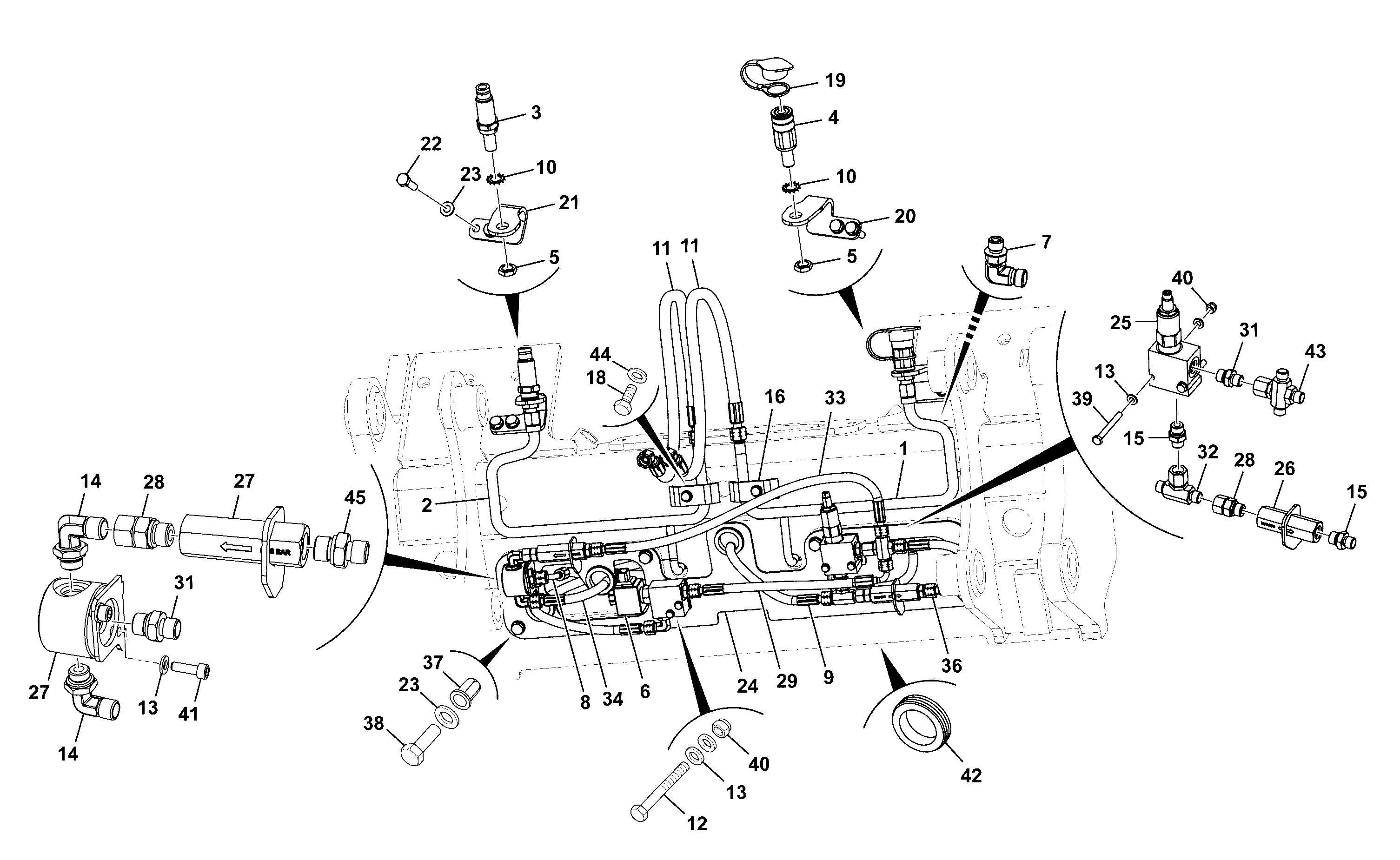

| 1 | WA AUX PIPE LH 3cx compac 334/G3698 | 1 | $269.84 | |||
| 2 | WA AUX PIPE RH 3cx compac 334/G3700 | 1 | $239.34 | |||
| 3 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 4 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 6 | HOSE 3/8 BSP HP 2480A TOU 334/F8624 | 1 | $86.12 | |||
| 7 | HOSE 3/8 BSP HP 2360A TOU 334/F8628 | 1 | $99.88 | |||
| 9 | HOSE CLAMP ASSEMBLY 333/F3517 | 1 | $14.58 | |||
| 10 | HOSE CLAMP 17.2 BORE 333/F3516 | 1 | $4.77 | |||
| 11 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 12 | SET SCREW M6x50 1315/0212Z | 1 | $2.11 | |||
| 14 | PIPE CLAMP 821/10389 | 1 | $1.52 | |||
| 15 | Spacer, 10.2 x 20 x 16 long (P561) 829/31263 | 1 | $10.20 | |||
| 16 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $0.26 | |||
| 17 | O-RING 828/00135 | 1 | $0.38 | |||
| 18 | ADAPTOR (M/M) 816/17071 816/90152 | 1 | $9.04 | |||
| 19 | ADAPTOR 45 DEG. ELBOW 816/91035 | 1 | $25.44 | |||
| 20 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 21 | (W) (Pre-P)-SET SCREW M6x45 1315/0211Z | 1 | $2.47 | |||
| 22 | (W) (P) LABEL - ISO-06A TYPE A 332/F5855 | 1 | $1.89 | |||
