Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE 3/8BSP 725mm 40/301862 | 1 | $42.65 | |||
| 2 | HOSE 3/8BSP 530mm 612/80099 | 1 | $81.26 | |||
| 3 | WA AUX CRKT PIPE - RH 334/Y2057 | 1 | $49.52 | |||
| 4 | WA - AUX PIPE LH 334/Y2040 | 1 | $50.63 | |||
| 5 | LH AUX FEED PIPE 332/Y2955 | 1 | $64.72 | |||
| 6 | RH AUX FEED PIPE 335/04374 | 1 | $64.72 | |||
| 7 | PIPE CLAMP 40/303614 | 1 | $5.96 | |||
| 8 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 10 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 11 | O-RING 828/00135 | 1 | $0.38 | |||
| 12 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 13 | BLANKING CAP 3/8 BSP 816/90044 | 1 | $17.85 | |||
| 14 | ADAPTOR (M/M) 816/17071 816/90152 | 1 | $9.04 | |||
| 15 | (W) (P) LABEL - ISO-06A TYPE A 332/F5855 | 1 | $1.89 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-

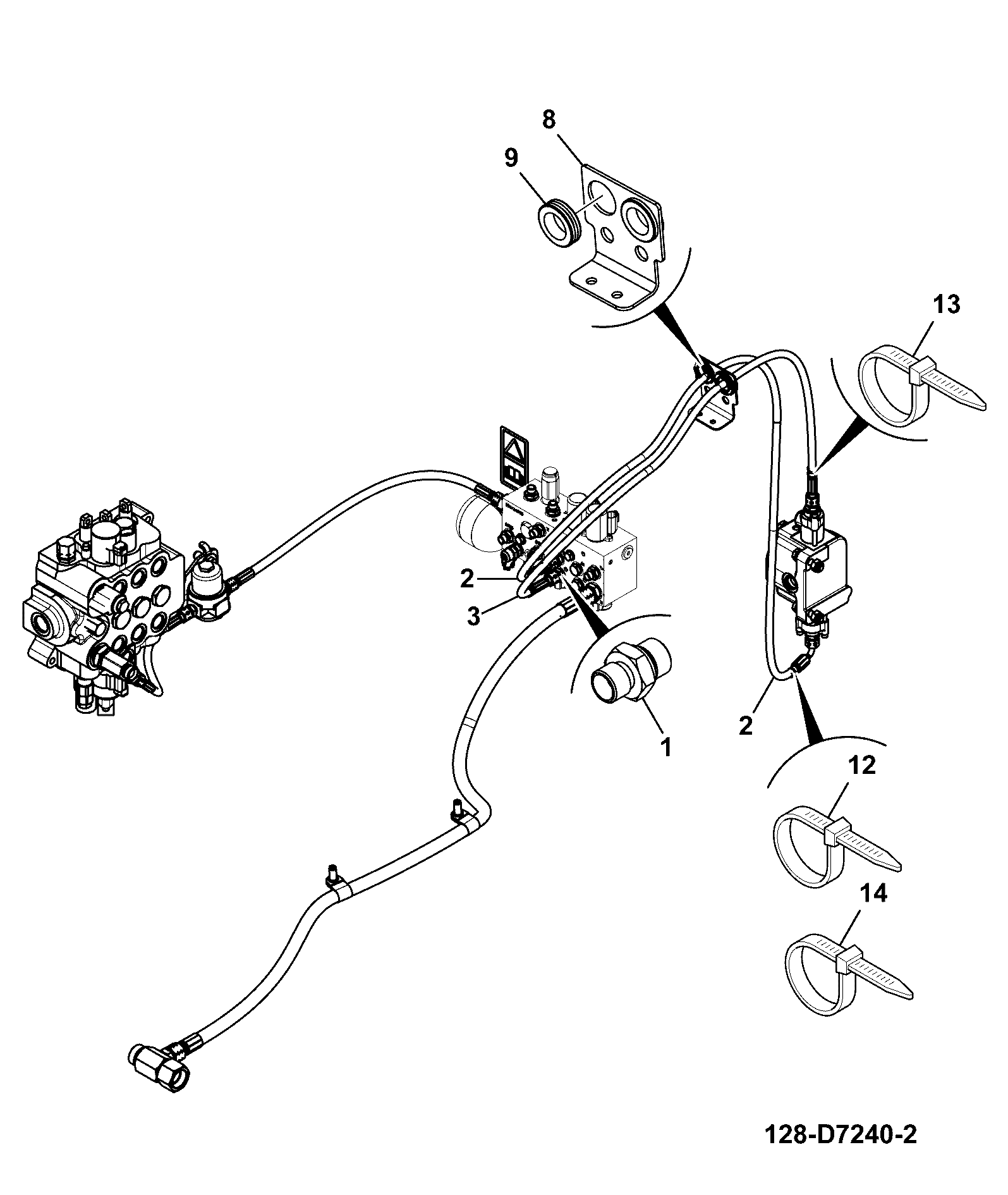

DIAG-E100-95-1-394796 E100-95-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HIGH FLOW LOW FLOW CENTERMOUNT
View Diagram -

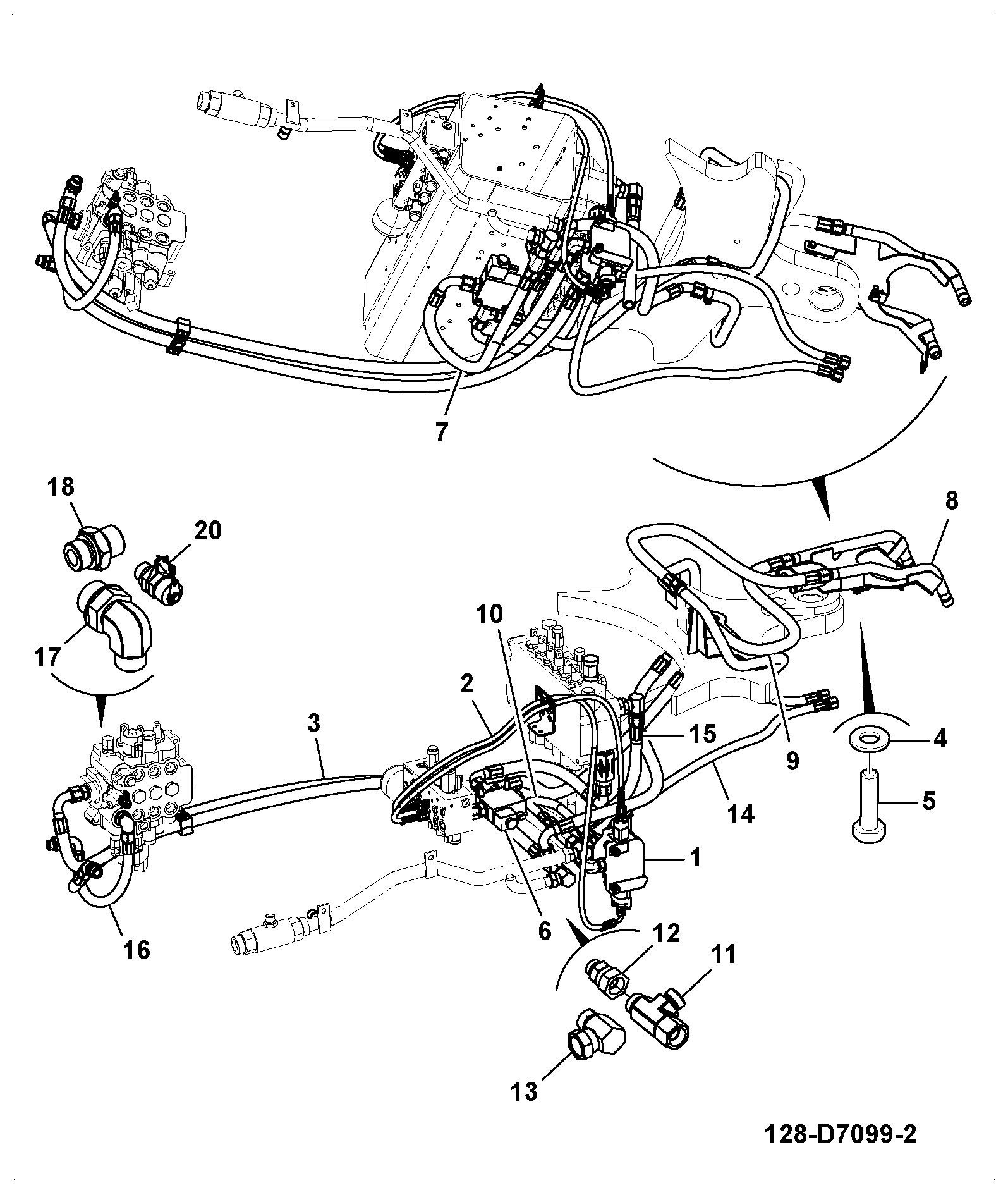

DIAG-E130-190-1-394796 E130-190-1 HYDRAULIC CIRCUITS CHASSIS SERVO AUXILIARY PILOT, EXTDIP
View Diagram -
DIAG-E300-70-1-394796 E300-70-1 VALVE INSTALLATION ASSEMBLIES AUXILIARY EASYCONTROL
View Diagram
