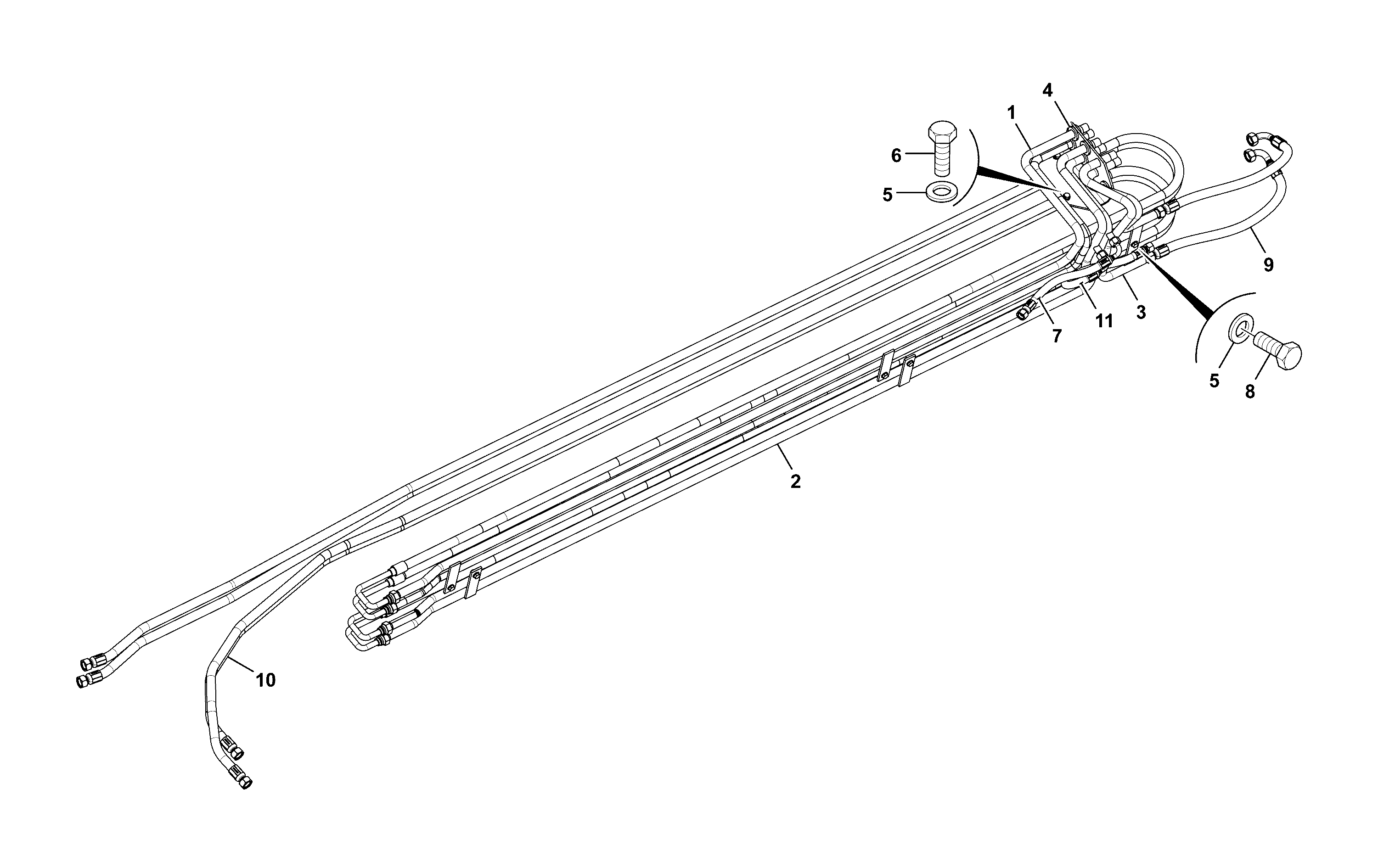

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ADAPTOR 3/4-16 x 3/4-16 816/90036 | 1 | $29.93 | |||
| 3 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 4 | 6-WAY SOLENOID C/O VALVE 332/G3907 | 1 | $1,053.46 | |||
| 5 | HEX.BOLT M8x110 LG 1315/3321D | 1 | $8.67 | |||
| 8 | PLATE SPACER 162/03801 | 1 | $324.94 | |||
| 9 | TWIN AUX PIPE RH WA 332/F7353 | 1 | $140.18 | |||
| 10 | ADAPTOR 816/90027 | 1 | $50.66 | |||
| 11 | TWIN AUX PIPE LH WA 332/F7390 | 1 | $323.10 | |||
| 12 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 13 | PCLIP (P564) 821/00481 | 1 | $32.09 | |||
| 14 | SET-SCREW M_8 L-_16mm 1315/0303D | 1 | $0.86 | |||
| 15 | P981 Inner Boom Harness 721/L5348 | 1 | $305.08 | |||
| 16 | HOSE -08 BSP HP 5820mm B 402/K7018 | 1 | $229.51 | |||
| 17 | CLAMP MOULDING 332/G3790 | 1 | $4.14 | |||
| 18 | BOLT M8 x 40 G8.8 1315/3310D | 1 | $2.21 | |||
| 20 | COVER PLATE and bolt 821/00169 821/00169A | 1 | $1.92 | |||
| 21 | CLAMP BASE PLATE 331/38057 | 1 | $23.07 | |||
| 24 | Ada straight adaptor 8m - 8m 816/90532 | 1 | $43.70 | |||
| 26 | BOOM HEAD HARNESS 721/C1013 | 1 | $122.61 | |||
| 27 | ABI QRC F 10-3/4 YW+ CAP 400/L6078 | 1 | $65.51 | |||
| 28 | ABI QRC F 10-3/4 GY+ CAP 400/L6094 | 1 | $67.93 | |||
| 29 | ABI QRC M 10-3/4 GY- CAP 400/L6096 | 1 | $38.48 | |||
| 30 | ABI QRC M 10-3/4 YW- CAP 400/L6080 | 1 | $31.06 | |||
Showing 1 to 23 of 23 parts
