Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| IA FRONT 2 AUX HYDS 332/D7095 | 1 | $1,950.19 | ||||
| 10 | ADAPTOR 3/4-16 x 3/4-16 816/90036 | 1 | $29.93 | |||
| 20 | COUPLING QR FEMALE HQ10 - 8SAE 45/920049 | 1 | $160.53 | |||
| 20 | QRC F + CAP2 10 400/F4960 | 1 | $107.42 | |||
| 30 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 40 | 6-WAY SOLENOID C/O VALVE 332/G3907 | 1 | $1,053.46 | |||
| 50 | HEX.BOLT M8x110 LG 1315/3321D | 1 | $8.67 | |||
| 60 | COUPLING QR MALE 10 -8SAE 45/920050 | 1 | $103.37 | |||
| 60 | QRC M + CAP2 10 400/F4962 | 1 | $35.44 | |||
| 80 | PLATE SPACER 162/03801 | 1 | $324.94 | |||
| 90 | TWIN AUX PIPE RH WA 332/F7353 | 1 | $140.18 | |||
| 100 | ADAPTOR 816/90027 | 1 | $50.66 | |||
| 110 | TWIN AUX PIPE LH WA 332/F7390 | 1 | $323.10 | |||
| 120 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 130 | PCLIP (P564) 821/00481 | 1 | $32.09 | |||
| 140 | SET-SCREW M_8 L-_16mm 1315/0303D | 1 | $0.86 | |||
| 150 | Aux Harness 527-58 721/H8668 | 1 | $343.79 | |||
| 160 | TWIN HOSE 332/G2920 | 1 | $866.52 | |||
| 170 | CLAMP MOULDING 332/G3790 | 1 | $4.14 | |||
| 180 | BOLT M8 x 40 G8.8 1315/3310D | 1 | $2.21 | |||
| 200 | COVER PLATE and bolt 821/00169 821/00169A | 1 | $1.92 | |||
| 210 | CLAMP BASE PLATE 331/38057 | 1 | $23.07 | |||
| 240 | Ada straight adaptor 8m - 8m 816/90532 | 1 | $43.70 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-

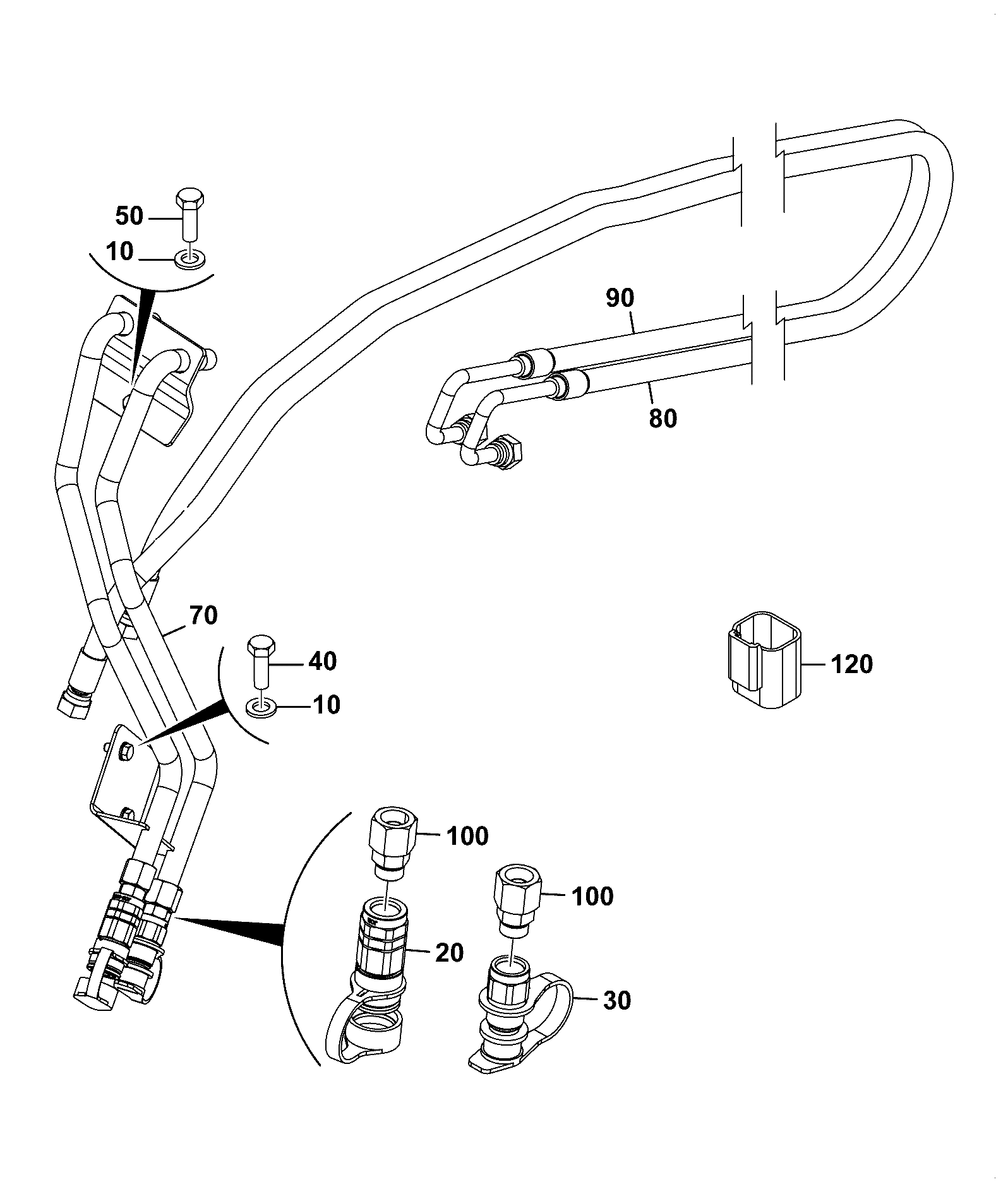

DIAG-E120-40-1-400747 E120-40-1 HYDRAULIC CIRCUITS LOADER END LOADER AUXILIARY BOOM HOSES AND PIPEWORK, TWIN AUX
View Diagram -

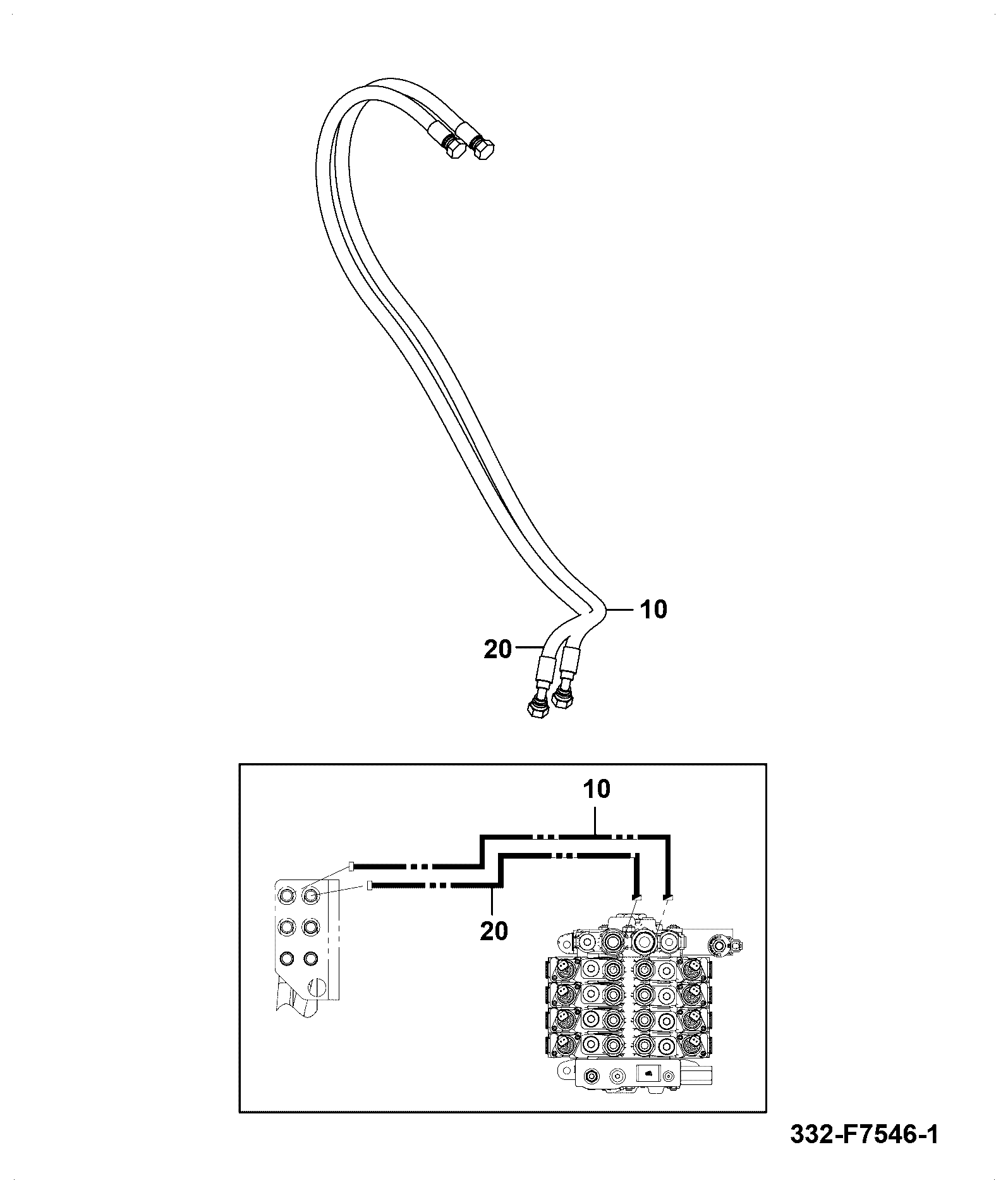

DIAG-E120-45-1-400747 E120-45-1 HYDRAULIC CIRCUITS LOADER END LOADER AUXILIARY LOADER VALVE TO BOOM
View Diagram -
DIAG-E120-30-5-400747 E120-30-5 HYDRAULIC CIRCUITS LOADER END LOADER AUXILIARY BOOM HOSES AND PIPEWORK, SINGLE AUX
View Diagram
