Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA AUXILARY PIPE LH 335/07274 | 1 | $324.10 | |||
| 2 | WA AUXILARY PIPE RH 335/07275 | 1 | $289.26 | |||
| 3 | R/H PIPE loader long 5/8 335/08592 332/F0910 | 1 | $344.94 | |||
| 4 | L/H PIPE loader long 5/8 335/08593 332/F0919 | 1 | $330.00 | |||
| 6 | HOSE 5/8 BSP HP 540A 34AP/AA054 | 1 | $63.35 | |||
| 7 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
| 8 | HOSE 5/8 BSP HP 800A GUARD 332/H4218 | 1 | $124.66 | |||
| 10 | Hose HP 5/8BSP X 34AP/AA052 | 1 | $58.84 | |||
| 11 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 12 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 13 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 14 | DUAL HOSE CLAMP SET 821/10431 | 1 | $1.52 | |||
| 15 | CLAMP PLATE 821/00496 | 1 | $4.93 | |||
| 16 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 17 | (W) (Pre-P)-BOLT M8x55 1315/3313Z | 1 | $2.47 | |||
| 18 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 19 | O RING 2401/0203 | 1 | $0.65 | |||
| 20 | ADAPTOR G5/8A X G3/8 332/G9222 | 1 | $30.96 | |||
| 22 | EXTENDED ADAPTOR G5/8A X G3/8 333/E0163 | 1 | $24.03 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

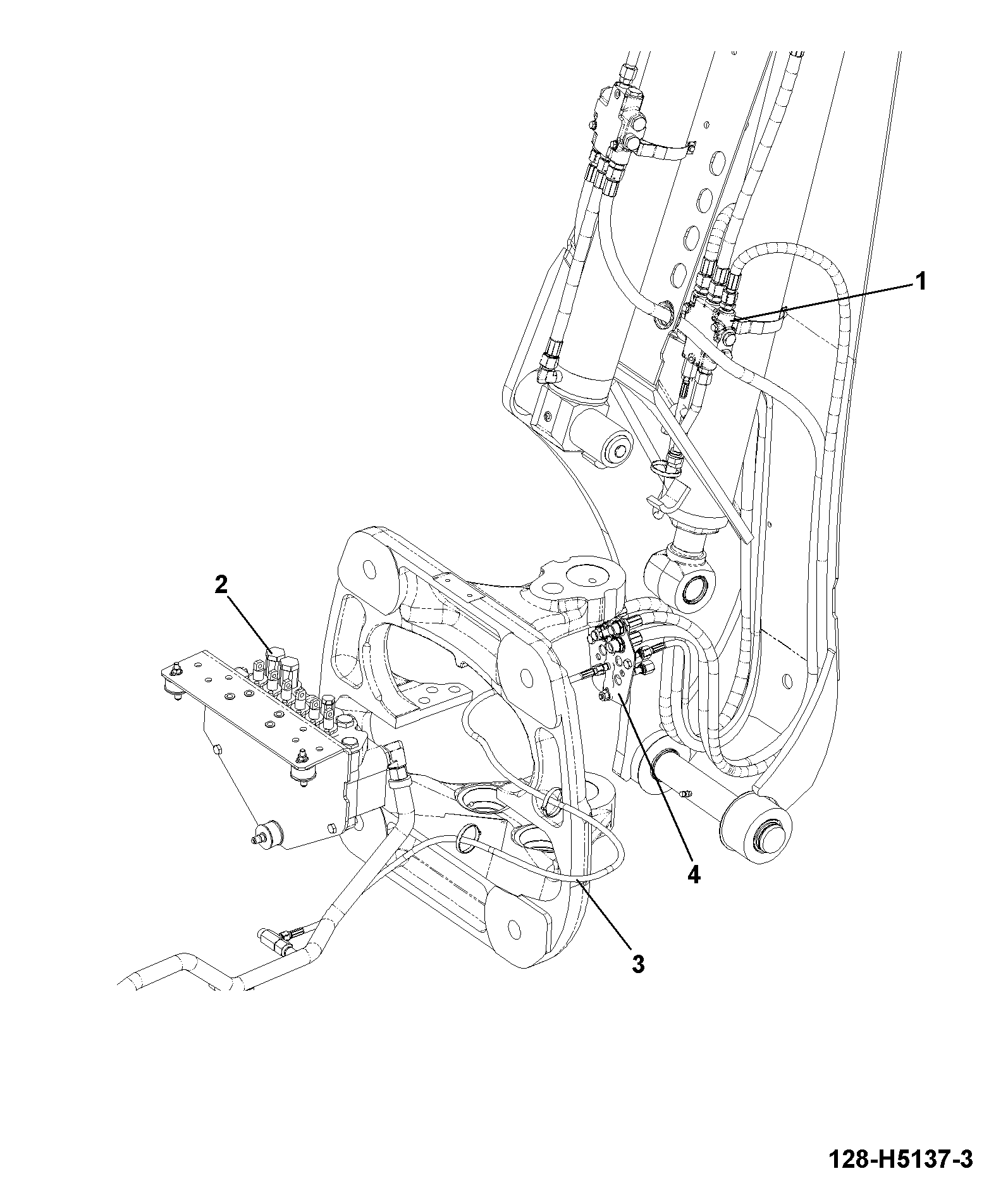

DIAG-E100-146-3-394935 E100-146-3 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES BOOM AND DIPPER RAMS LOCKOUT, 14' SIDESHIFT HEAVYLIFT SAE
View Diagram -

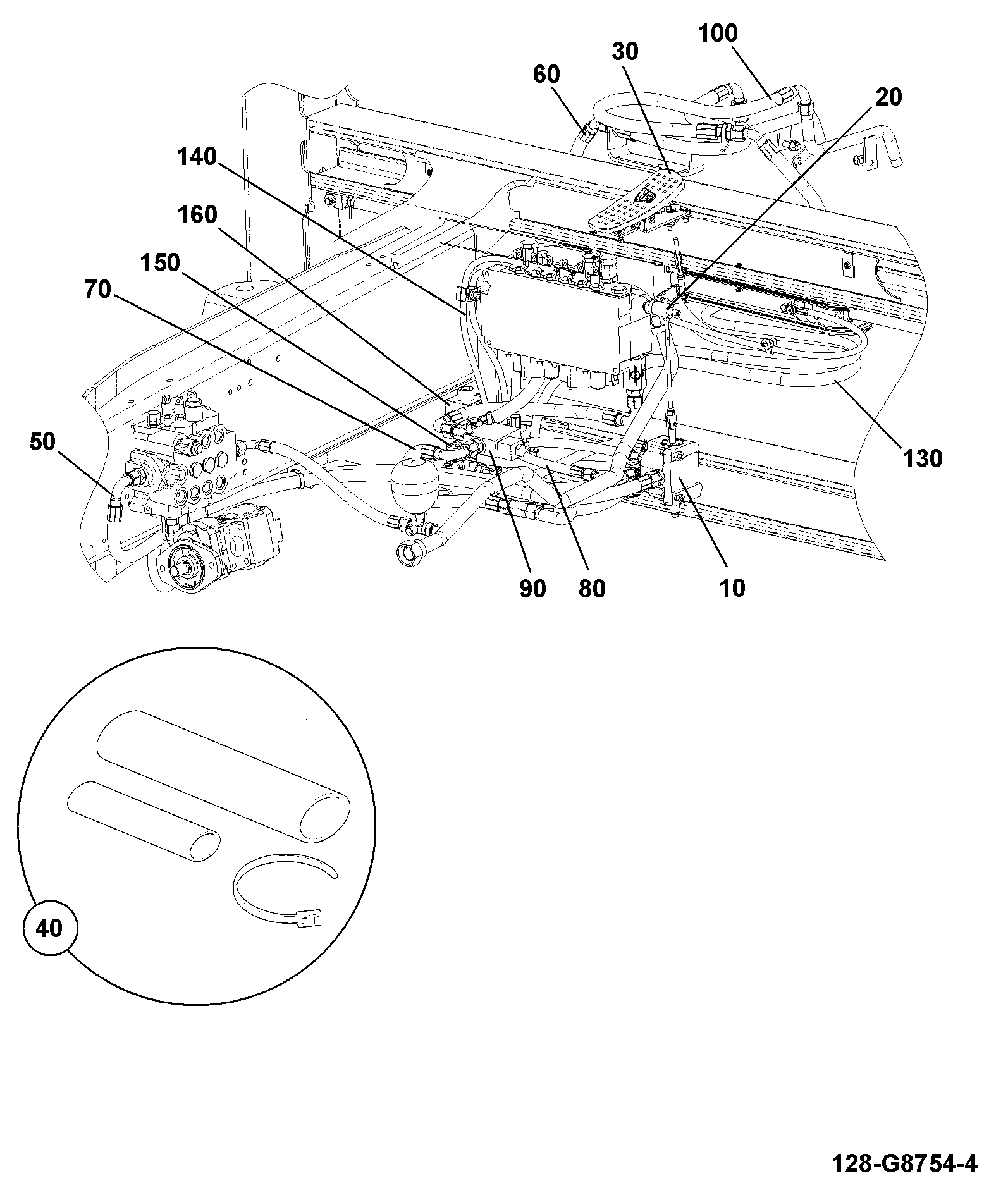

DIAG-E130-5-901-394935 E130-5-901 HYDRAULIC CIRCUITS CHASSIS LOW FLOW CHANGE OVER VALVE TO KINGPOST, 92" SIDESHIFT, COLD CLIMATE
View Diagram -

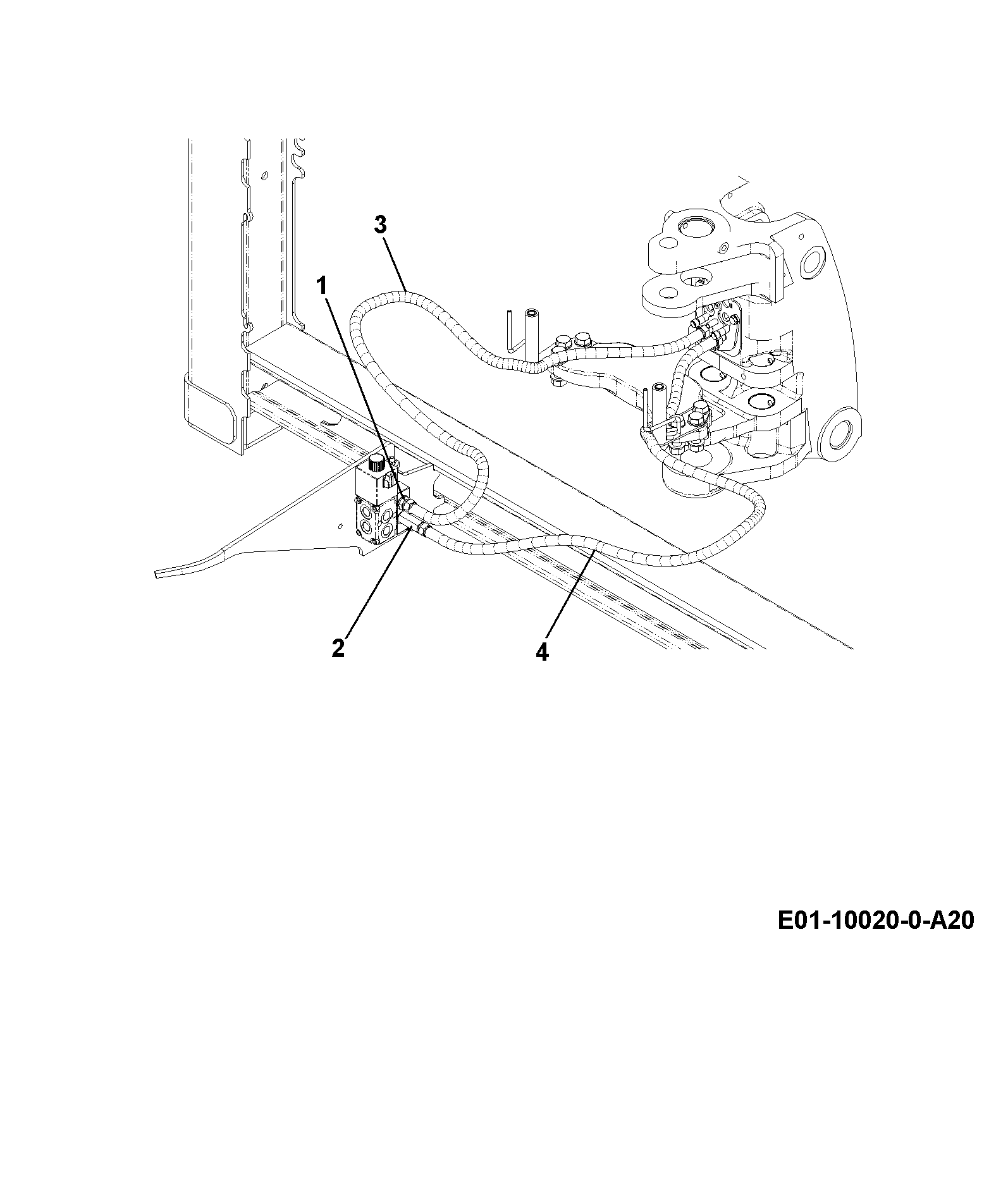

DIAG-E100-36-901-394935 E100-36-901 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HIGH FLOW LOW FLOW POWERSLIDE, COLD CLIMATE
View Diagram
