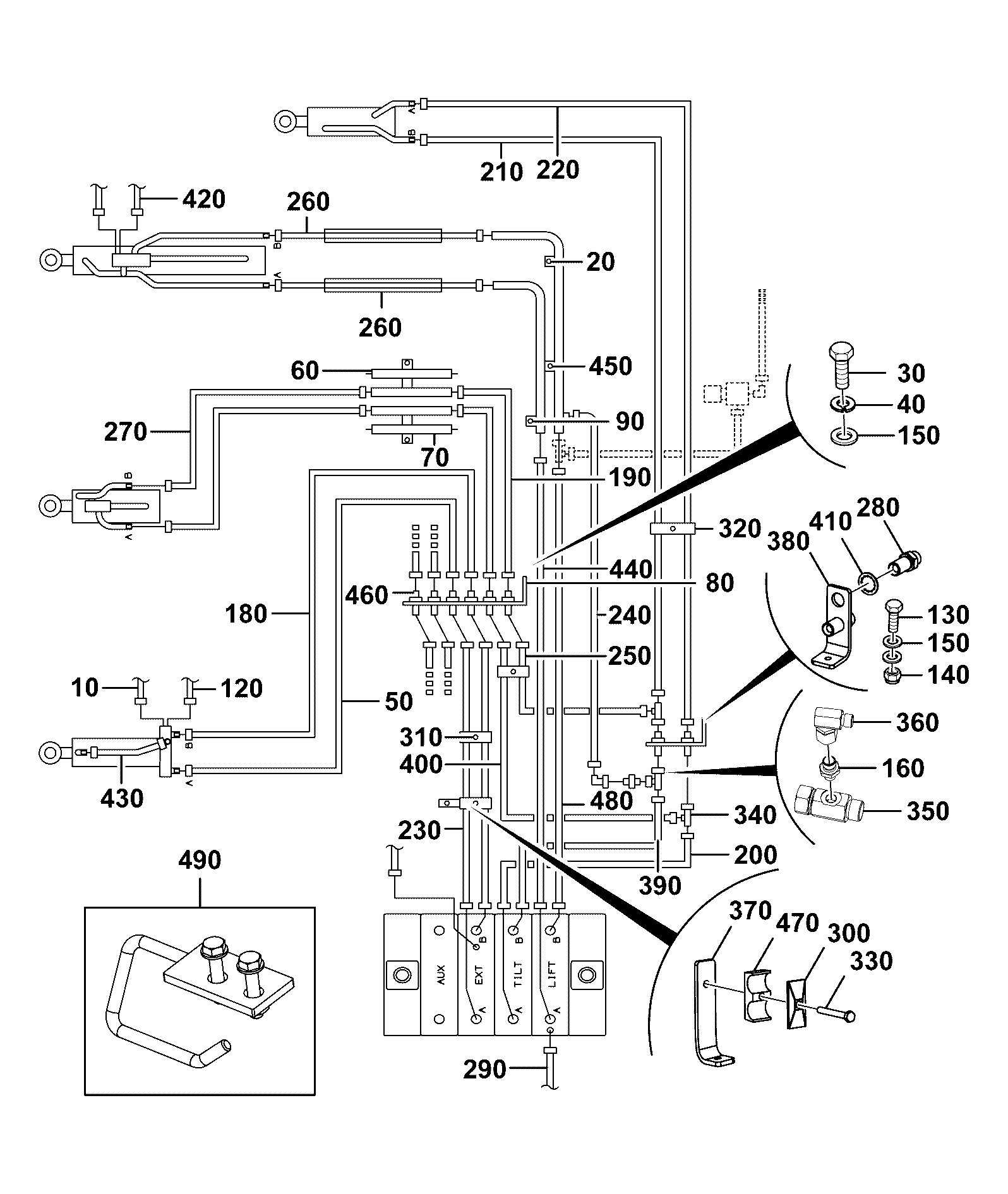

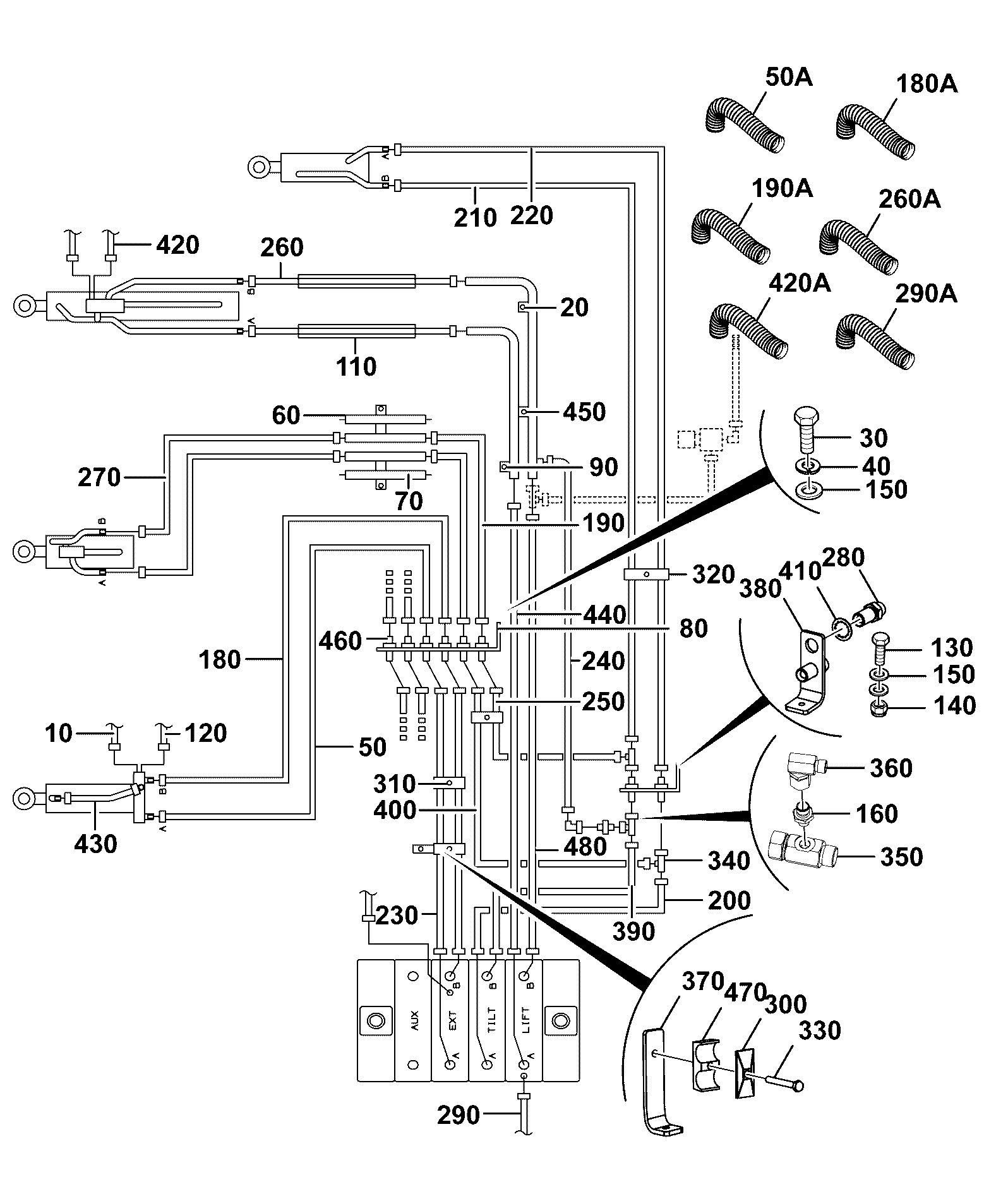

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | HOSE -04 BSP PILOT 2050mm 333/F2239 | 1 | $222.22 | |||
| 20 | WA LEFT LIFT FEED PIPE 334/C3400 | 1 | $118.89 | |||
| 30 | SET-SCREW M_8 L-_16mm 1315/0303D | 1 | $0.86 | |||
| 40 | SPRING WASHER M8 1425/0007D | 1 | $1.52 | |||
| 50 | HOSE -10 BSP HP 850mm B 333/H2937 | 1 | $328.07 | |||
| 60 | WA LH UNDERBOOM PIPES 5/8 400/M7401 | 1 | $603.65 | |||
| 70 | WA RH UNDERBOOM PIPES 5/8 400/M7387 | 1 | $637.89 | |||
| 80 | WA REAR BOOM HOSE GUIDE 334/E5432 | 1 | $50.01 | |||
| 90 | WA LIFT RAM FEED PIPE 334/C3452 | 1 | $168.22 | |||
| 100 | ADAPTOR - TEE 816/90860 | 1 | $32.33 | |||
| 110 | Sleeve PVC 647/02507 647/02508 | 1 | $27.36 | |||
| 120 | HOSE 1/4 BSP 1200MM 649/51245 | 1 | $125.47 | |||
| 130 | BOLT M8 x 40 G8.8 1315/3310D | 1 | $2.21 | |||
| 140 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 150 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 160 | ADAPTOR. G1/4A - 7/16 SAE 816/90167 | 1 | $126.95 | |||
| 170 | PIPE CLAMP 821/00350 | 1 | $42.80 | |||
| 180 | HOSE -10 BSP HP 715mm B 333/H2939 | 1 | $282.08 | |||
| 180A | HOSE SLEEVE 5/8BSP 600mm 334/C9537 | 1 | $121.56 | |||
| 190 | HOSE 26 1/2 STR/STR 613/01000 | 1 | $102.96 | |||
| 200 | HOSE 1/2BSP 840mm 613/33400 | 1 | $68.24 | |||
| 210 | HOSE 1/2BSP 1000mm 332/C0033 | 1 | $123.32 | |||
| 220 | HOSE - 08 BSP HP 1020mm A 333/E2517 | 1 | $83.45 | |||
| 230 | HOSE -10 BSP HP 1900mm B 333/H2940 | 1 | $308.37 | |||
| 240 | HOSE 04 BSP HP 960mm B 611/28900 334/F9840 | 1 | $79.71 | |||
| 250 | HOSE - 08 BSP HP 970mm B 333/E2450 | 1 | $68.65 | |||
| 260 | HOSE -10 BSP HP 930mm A 333/H1476 | 1 | $136.64 | |||
| 260A | HOSE SLEEVE 5/8BSP 870mm 334/C9412 | 1 | $121.56 | |||
| 270 | SA HOSE 6640mm PINK 334/H3629 334/E9775 | 1 | $362.07 | |||
| 280 | ADAPTOR 1/2BSP X1/2 BSP BULKHEAD 816/90032 | 1 | $30.50 | |||
| 290 | HOSE -04 BSP PILOT 2100mm 11AG/BA210 | 1 | $66.73 | |||
| 290A | HOSE SLEEVE 1/4BSP PILOT 334/C9608 | 1 | $218.66 | |||
| 300 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 310 | BOLT M8x50 1315/3312D | 1 | $4.21 | |||
| 320 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $4.84 | |||
| 330 | BOLT M8 x 65 G8.8 (P564) 1315/3315D | 1 | $0.00 | |||
| 340 | ADAPTOR TEE 816/90270 | 1 | $25.86 | |||
| 350 | ADAPTER, TEE 816/90404 | 1 | $73.80 | |||
| 360 | ELBOW ADAPTOR 1/4BSP (P493) 816/90004 | 1 | $35.04 | |||
| 370 | HOSE BRACKET 401/H3464 | 1 | $13.42 | |||
| 370 | HOSE BRACKET 401/Y5651 | 1 | $13.75 | |||
| 370 | HOSE BRKT 333/E1352 | 1 | $28.19 | |||
| 380 | BULKHEAD MOUNTING PLT 333/E1662 | 1 | $13.98 | |||
| 390 | HOSE - 08 BSP HP 760mm B 333/E2508 | 1 | $123.39 | |||
| 400 | HOSE - 1/2 1040 MM 332/W2449 | 1 | $133.90 | |||
| 410 | Washer 1418/0018D | 1 | $11.87 | |||
| 420 | HOSE -04 BSP PILOT 1200mm 333/H2096 | 1 | $234.03 | |||
| 420 | HOSE -04 BSP PILOT 1200mm 400/L4815 | 1 | $86.14 | |||
| 430 | HOSE 5/8 BSP 545mm COMPAC 334/C7604 | 1 | $98.97 | |||
| 440 | HOSE -10 BSP HP 450mm B 333/H2735 | 1 | $104.20 | |||
| 450 | CAPSCREW - M8 X 25L 1392/3307 | 1 | $10.37 | |||
| 460 | (W) (P) ADAPTOR G5/8A x G5/8A 816/90339 | 1 | $30.50 | |||
| 470 | HOSE 5/8 ST/90-15 LONG 614/23400 | 1 | $57.24 | |||
Showing 1 to 53 of 53 parts
Related Assemblies
-
DIAG-E120-375-5-401599 E120-375-5 HYDRAULIC CIRCUITS LOADER END SRS LIFT END
View Diagram -
DIAG-E120-430-1-401599 E120-430-1 HYDRAULIC CIRCUITS LOADER END SRS LIFT END, HMH
View Diagram -
DIAG-E120-430-5-401599 E120-430-5 HYDRAULIC CIRCUITS LOADER END SRS LIFT END, HMH
View Diagram
