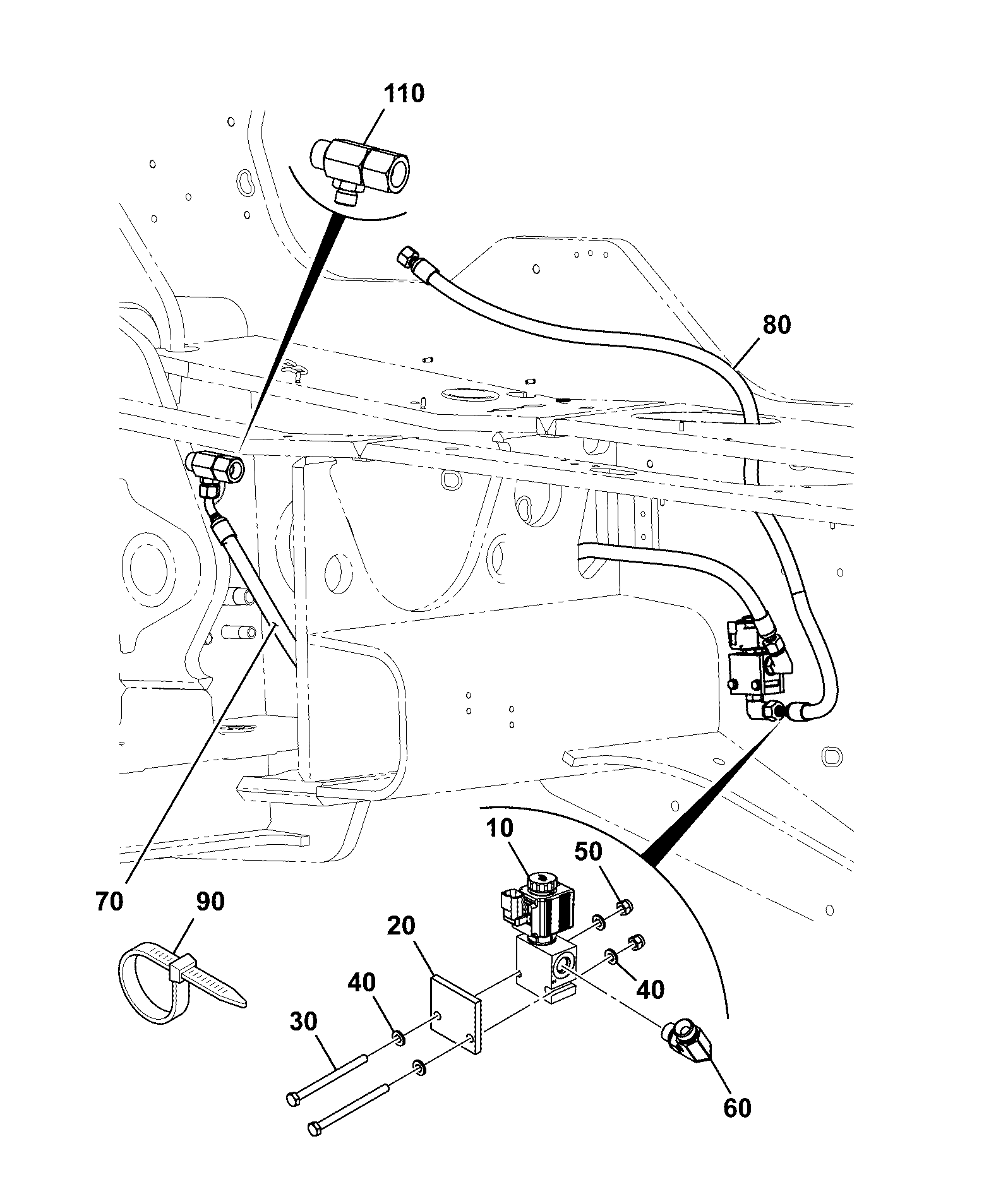

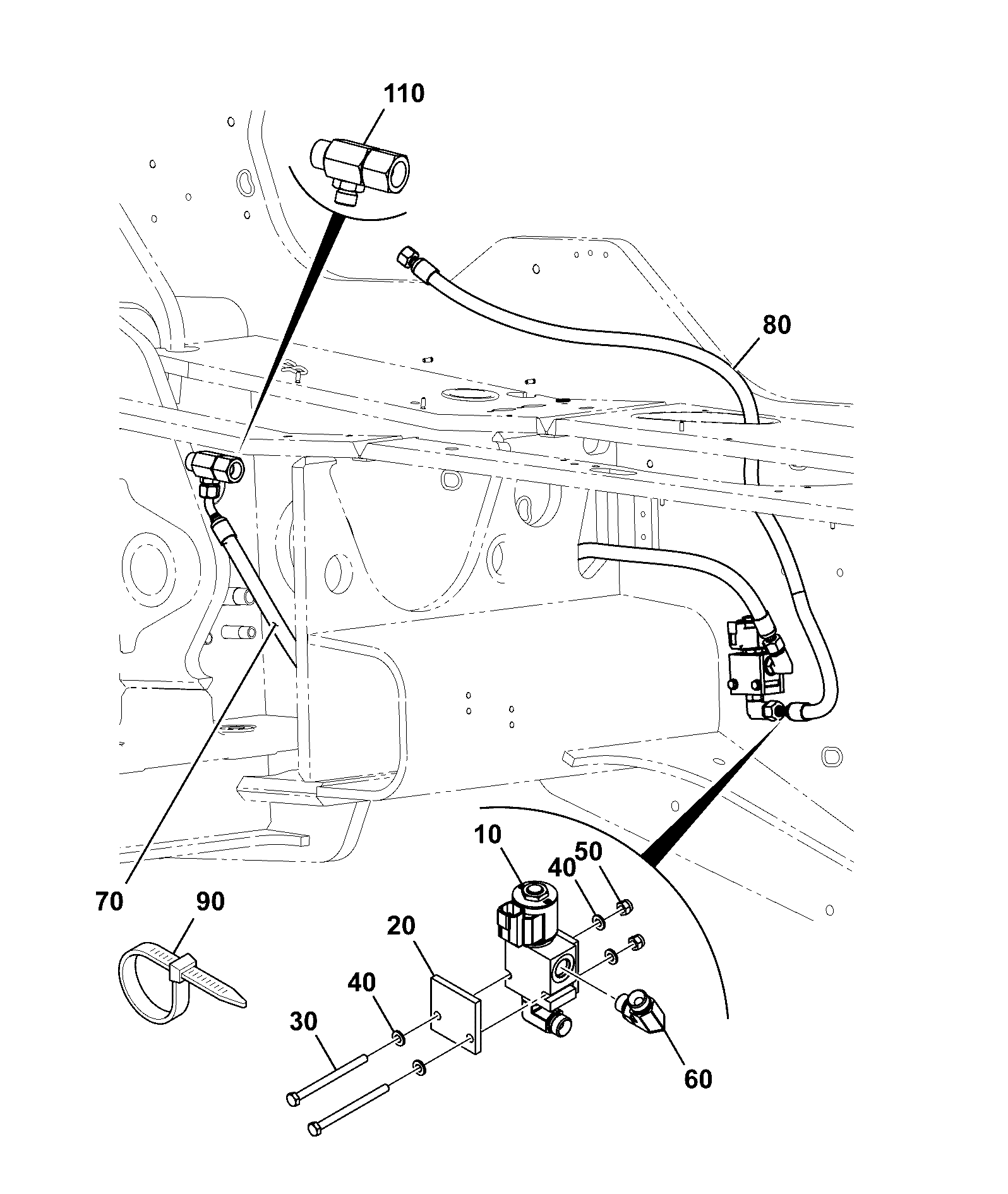

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| HOSE -04 BSP PILOT 1200mm 400/L4815 | 1 | $86.14 | ||||
| HOSE SLEEVE 1/4BSP PILOT 334/C9608 | 1 | $218.66 | ||||
| 20 | HOSE -10 BSP HP 1200mm B 333/E4462 | 1 | $134.95 | |||
| 50 | HOSE - 10 BSP HP 6680mm B 333/E9608 | 1 | $568.42 | |||
| 60 | SA HOSE 1/4BSP PILOT 1200 400/L4814 | 1 | $88.90 | |||
| 70 | HOSE -04 BSP PILOT 2050mm 333/F2239 | 1 | $222.22 | |||
| 80 | HOSE 1/4 BSP 1200MM 649/51245 | 1 | $125.47 | |||
| 90 | HOSE -04 BSP PILOT 1200mm 333/H2096 | 1 | $234.03 | |||
| 100 | HOSE 1/2BSP 1200mm 613/05800 | 1 | $141.46 | |||
| 110 | HOSE 1/2BSP 1150mm 613/80142 | 1 | $69.85 | |||
| 120 | HOSE -10 BSP HP 930mm A 333/H1476 | 1 | $136.64 | |||
| 130 | HOSE 5/8 ST/90-15 LONG 614/23400 | 1 | $57.24 | |||
| 150 | HOSE 5/8 BSP 545mm COMPAC 334/C7604 | 1 | $98.97 | |||
| 170 | Sleeve PVC 647/02507 647/02508 | 1 | $27.36 | |||
| 180 | WA EXT'N PIPE 335/13117 | 1 | $401.33 | |||
| 190 | WA LH BOOM PIPE 335/14386 400/M9167 | 1 | $1,407.92 | |||
| 200 | WA RH BOOM PIPES 335/14387 400/M9248 | 1 | $1,134.97 | |||
| 210 | ADAPTOR. G1/4A - 7/16 SAE 816/90167 | 1 | $126.95 | |||
| 220 | ADAPTOR G5/8A x G1/2. 816/90180 | 1 | $325.37 | |||
| 230 | ADAPTER, TEE 816/90404 | 1 | $73.80 | |||
| 240 | ADAPTOR - TEE 816/90860 | 1 | $32.33 | |||
| 250 | SET-SCREW M_8 L-_16mm 1315/0303D | 1 | $0.86 | |||
| 260 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 270 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 280 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 290 | SPRING WASHER M8 1425/0007D | 1 | $1.52 | |||
| 300 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 310 | SETSCREW M8x35 1315/0309D | 1 | $2.40 | |||
| 320 | SET-SCREW M_8 L-_40mm 1315/0310D | 1 | $17.79 | |||
| 340 | WA LIFT PIPE LH - LC 400/M7177 | 1 | $351.96 | |||
| 360 | HOSE HYDRAULIC (HP 611/04500 | 1 | $54.86 | |||
| 370 | HOSE -10 BSP HP 490mm C 333/E4161 | 1 | $107.41 | |||
| 380 | HOSE ASSY 614/26600 | 1 | $80.99 | |||
Showing 1 to 33 of 33 parts
