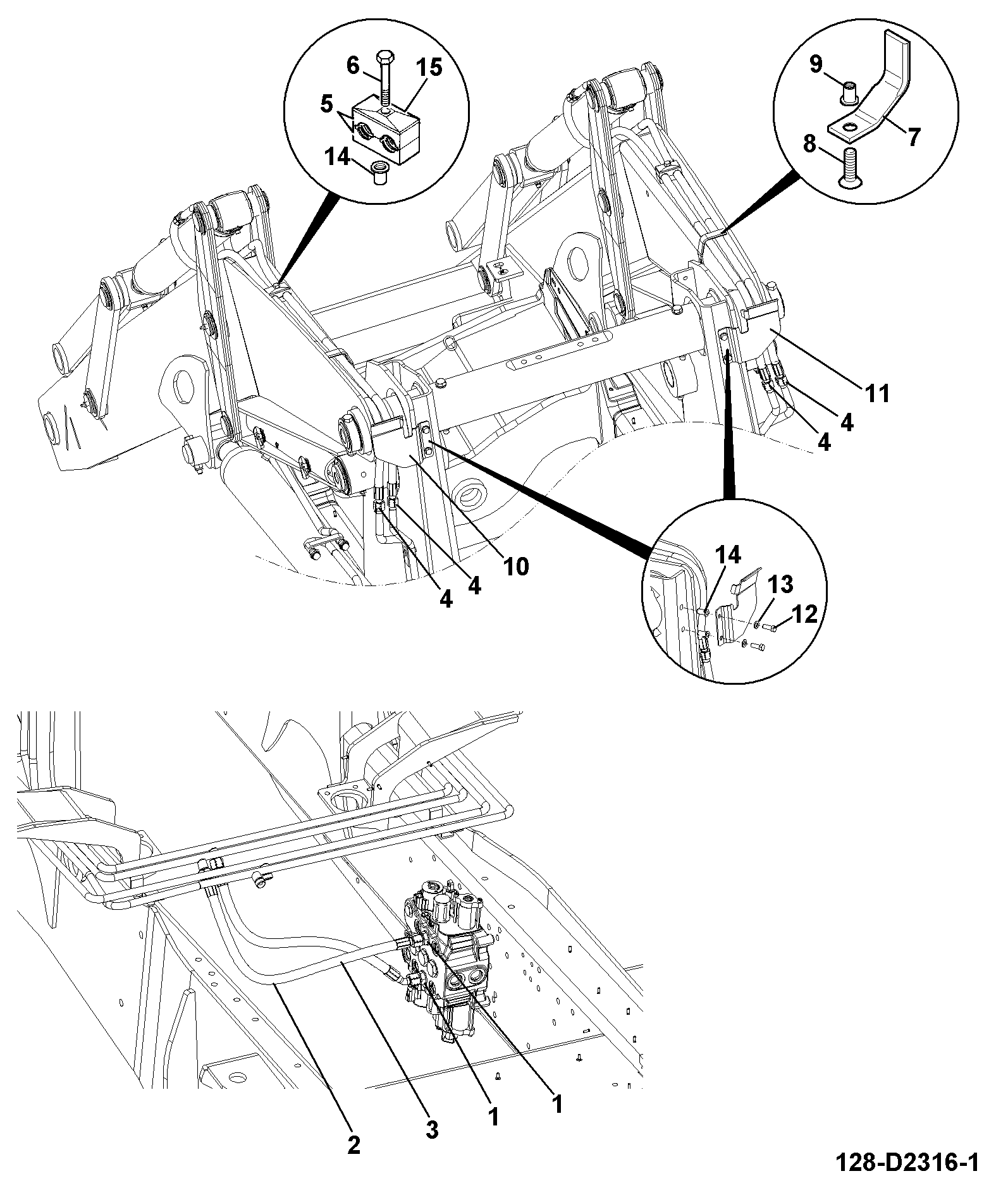

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA AUXILARY PIPE LH 335/07274 | 1 | $324.10 | |||
| 2 | WA AUXILARY PIPE RH 335/07275 | 1 | $289.26 | |||
| 3 | R/H PIPE loader short 5/8 332/G9238 | 1 | $275.73 | |||
| 4 | L/H PIPE loader short 5/8 332/G9230 | 1 | $204.37 | |||
| 5 | HOSE 5/8 BSP HP 540A 34AP/AA054 | 1 | $63.35 | |||
| 7 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
| 8 | ADAPTOR 45 DEG 7/8" UNF X G5/8 334/L7435 | 1 | $99.72 | |||
| 9 | HOSE 5/8 BSP HP 800A GUARD 332/H4218 | 1 | $124.66 | |||
| 10 | PLUG BLANKING 5/8 BSP M 816/90913 | 1 | $15.33 | |||
| 11 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 12 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 13 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 14 | DUAL HOSE CLAMP SET 821/10431 | 1 | $1.52 | |||
| 15 | CLAMP PLATE 821/00496 | 1 | $4.93 | |||
| 16 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 19 | O RING 2401/0203 | 1 | $0.65 | |||
| 20 | ADAPTOR G5/8A X G3/8 332/G9222 | 1 | $30.96 | |||
| 21 | EXTENDED ADAPTOR G5/8A X G3/8 333/E0163 | 1 | $24.03 | |||
| 22 | Hose HP 5/8BSP X 34AP/AA052 | 1 | $58.84 | |||
Showing 1 to 19 of 19 parts
