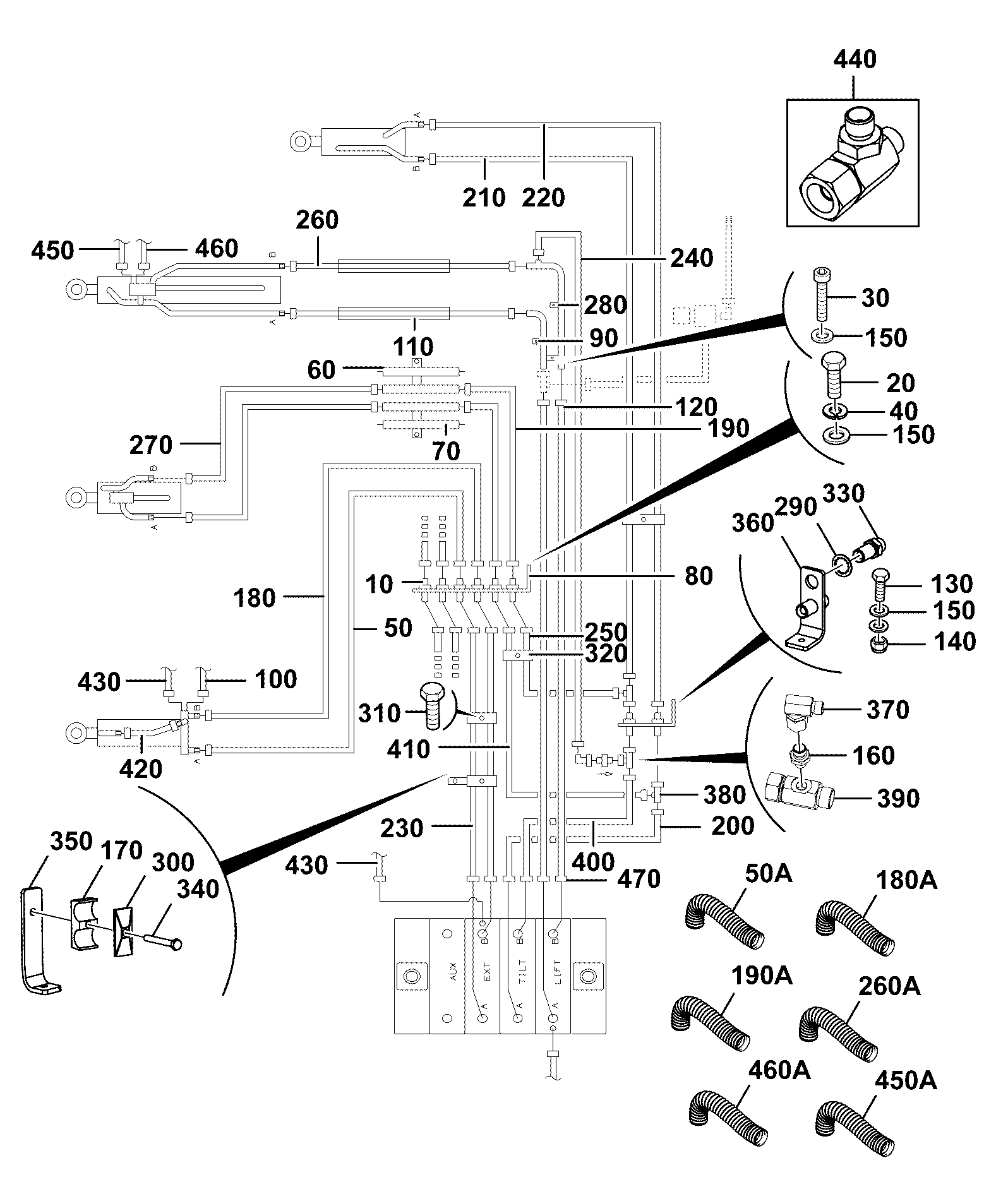

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | (W) (P) ADAPTOR G5/8A x G5/8A 816/90339 | 1 | $30.50 | |||
| 20 | SET-SCREW M_8 L-_16mm 1315/0303D | 1 | $0.86 | |||
| 30 | CAP SCREW M8 x 25 G12.9 MICRO-EN 1392/3307D | 1 | $6.02 | |||
| 40 | SPRING WASHER M8 1425/0007D | 1 | $1.52 | |||
| 50 | SA HOSE 5/8BSP 850 HP B S 334/C9529 | 1 | $125.79 | |||
| 60 | WA LH UNDERBOOM PIPES 5/8 400/M7401 | 1 | $603.65 | |||
| 70 | WA RH UNDERBOOM PIPES 5/8 400/M7387 | 1 | $637.89 | |||
| 80 | WA REAR BOOM HOSE GUIDE 334/E5432 | 1 | $50.01 | |||
| 90 | WA LIFT RAM FEED PIPE 334/C3452 | 1 | $168.22 | |||
| 100 | SA HOSE 1200MM GREEN 334/C5818 | 1 | $63.46 | |||
| 120 | HOSE -10 BSP HP 450mm B 333/H2735 | 1 | $104.20 | |||
| 130 | BOLT M8 x 40 G8.8 1315/3310D | 1 | $2.21 | |||
| 140 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 150 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 160 | ADAPTOR. G1/4A - 7/16 SAE 816/90167 | 1 | $126.95 | |||
| 170 | PIPE CLAMP 821/00350 | 1 | $42.80 | |||
| 180 | SA HOSE 5/8BSP 715 HP B S 334/C9549 | 1 | $118.61 | |||
| 190 | SA HOSE 1/2BSP 660mm HP S 334/C9238 | 1 | $92.43 | |||
| 200 | HOSE 1/2BSP 840mm 613/33400 | 1 | $68.24 | |||
| 210 | HOSE 1/2BSP 1000mm 332/C0033 | 1 | $123.32 | |||
| 220 | HOSE - 08 BSP HP 1020mm A 333/E2517 | 1 | $83.45 | |||
| 230 | HOSE -10 BSP HP 1900mm B 333/H2940 | 1 | $308.37 | |||
| 240 | HOSE 04 BSP HP 960mm B 611/28900 334/F9840 | 1 | $79.71 | |||
| 250 | HOSE - 08 BSP HP 970mm B 333/E2450 | 1 | $68.65 | |||
| 260 | SA HOSE 5/8BSP 930mm HP S 334/C9396 | 1 | $125.51 | |||
| 280 | WA LEFT LIFT FEED PIPE 334/C3400 | 1 | $118.89 | |||
| 290 | WASHER 7/8" INT LOCK 1418/0018Z | 1 | $5.34 | |||
| 300 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 310 | BOLT M8x50 1315/3312D | 1 | $4.21 | |||
| 320 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $34.86 | |||
| 330 | ADAPTOR 1/2BSP X1/2 BSP BULKHEAD 816/90032 | 1 | $30.50 | |||
| 340 | BOLT M8 x 65 G8.8 (P564) 1315/3315D | 1 | $14.33 | |||
| 370 | ELBOW ADAPTOR 1/4BSP (P493) 816/90004 | 1 | $35.04 | |||
| 380 | ADAPTOR TEE 816/90270 | 1 | $97.34 | |||
| 390 | ADAPTER, TEE 816/90404 | 1 | $73.80 | |||
| 400 | HOSE - 08 BSP HP 760mm B 333/E2508 | 1 | $123.39 | |||
| 410 | HOSE - 1/2 1040 MM 332/W2449 | 1 | $133.90 | |||
| 420 | HOSE 5/8 BSP 545mm COMPAC 334/C7604 | 1 | $98.97 | |||
| 430 | SA HOSE 2050MM ORANGE 334/C5817 | 1 | $127.30 | |||
| 440 | ADAPTOR - TEE 816/90860 | 1 | $32.33 | |||
| 450 | SA HOSE 1850MM RED 402/X1276 | 1 | $91.09 | |||
| 460 | SA HOSE 1/4BSP PILOT 1200 400/L4814 | 1 | $88.90 | |||
| 470 | HOSE 5/8 ST/90-15 LONG 614/23400 | 1 | $57.24 | |||
Showing 1 to 43 of 43 parts
Related Assemblies
-
DIAG-E120-260-1-401675 E120-260-1 HYDRAULIC CIRCUITS LOADER END SRS LIFT END
View Diagram -

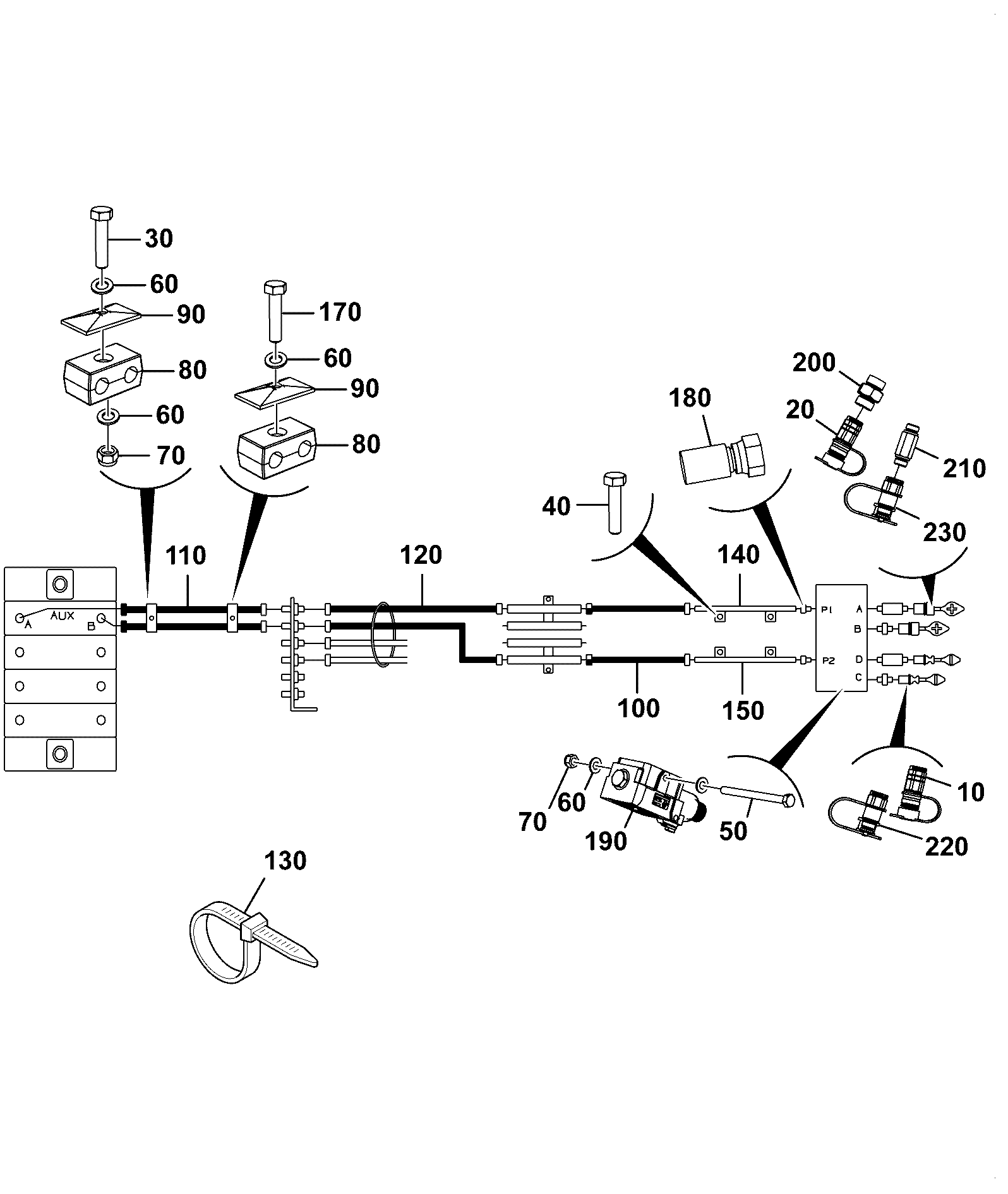

DIAG-E120-240-1-401675 E120-240-1 HYDRAULIC CIRCUITS LOADER END AUXILIARY TWIN, TOW HITCH
View Diagram -

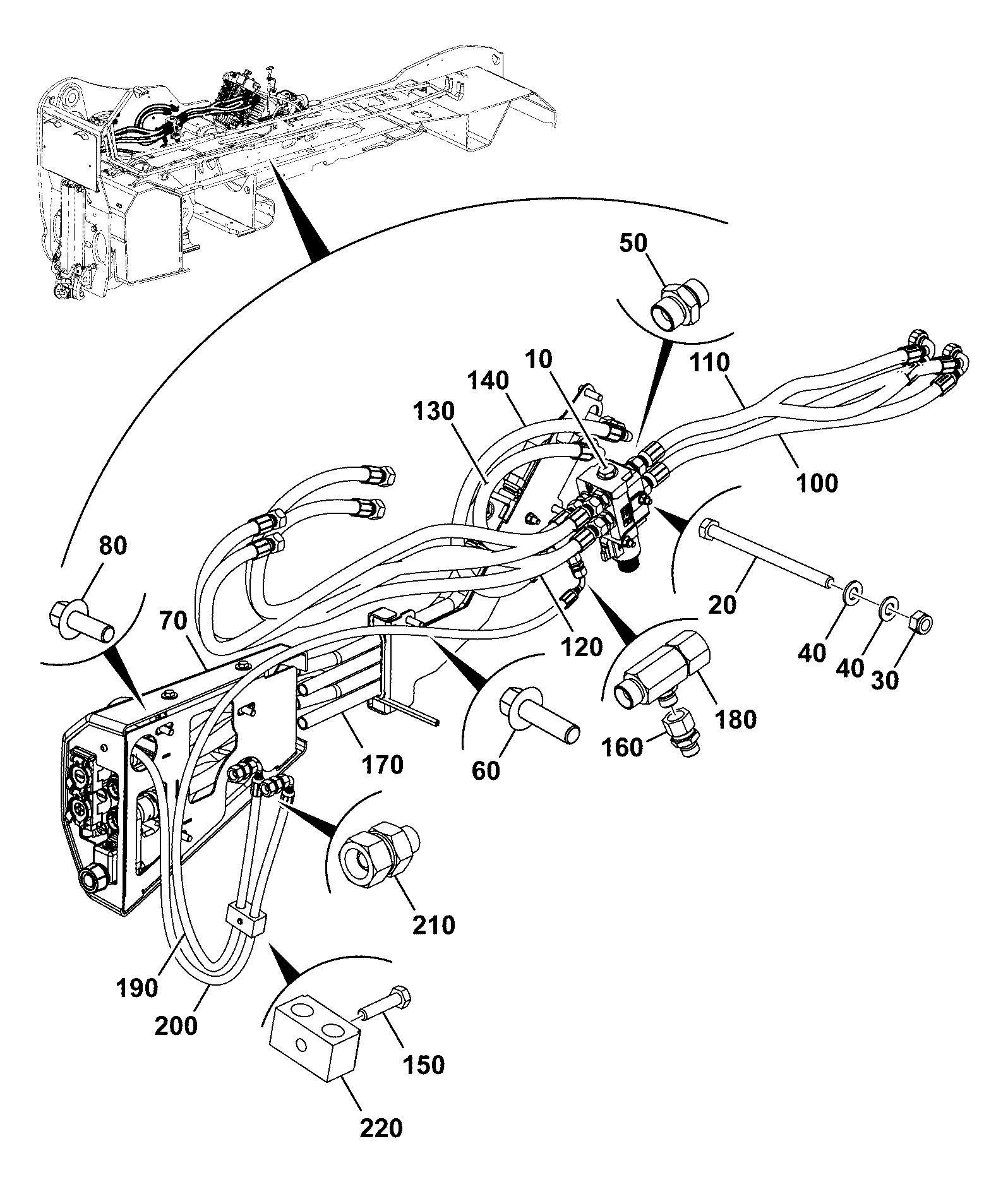

DIAG-E120-75-5-401675 E120-75-5 HYDRAULIC CIRCUITS LOADER END AUXILIARY 2ND FRONT, STD HYD FLOW
View Diagram
