Scroll to zoom Click a part # to view details

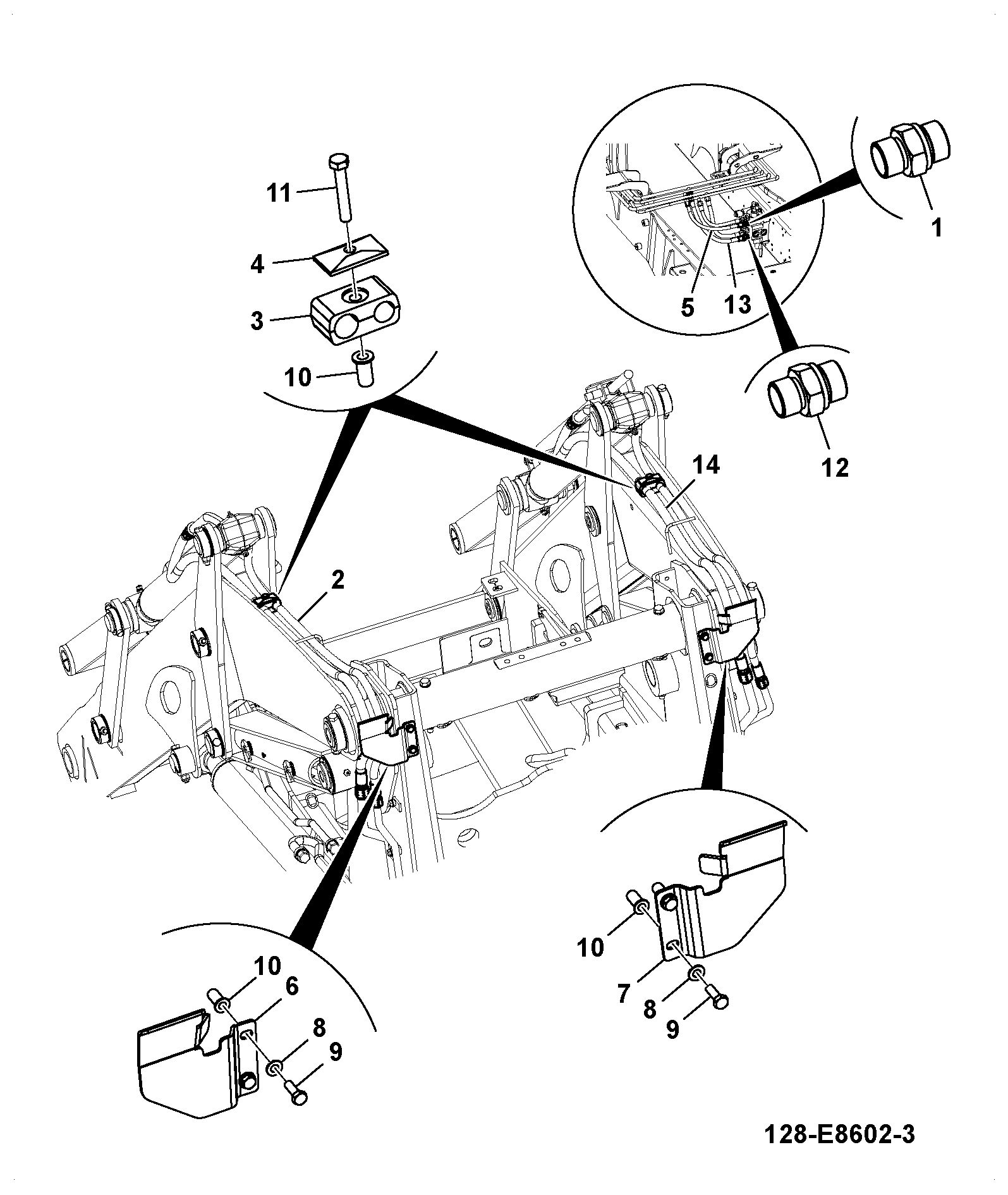

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 2 | HOSE 3/8BSP 1760mm 612/80078 | 1 | $111.32 | |||
| 3 | CLAMP MOULDING TWIN CHILLER (P572) 333/Y9459 | 1 | $2.56 | |||
| 4 | CLAMP COVER PLATE 821/00335 | 1 | $8.08 | |||
| 5 | HOSE -08 BSP HP 545MM A 334/Y9370 | 1 | $24.00 | |||
| 6 | R/H HOSE GUIDE 333/E7506 | 1 | $22.17 | |||
| 7 | L/H HOSE GUIDE 333/E6403 | 1 | $6.05 | |||
| 8 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 9 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 10 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 11 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 12 | ADAPTOR 45 DEG 7/8" UNF X G5/8 334/L7435 | 1 | $99.72 | |||
| 13 | HOSE -10 BSP HP 560MM A 334/Y9373 | 1 | $29.47 | |||
| 14 | HOSE -08 BSP HP 1760mm A 335/G8894 | 1 | $82.56 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-

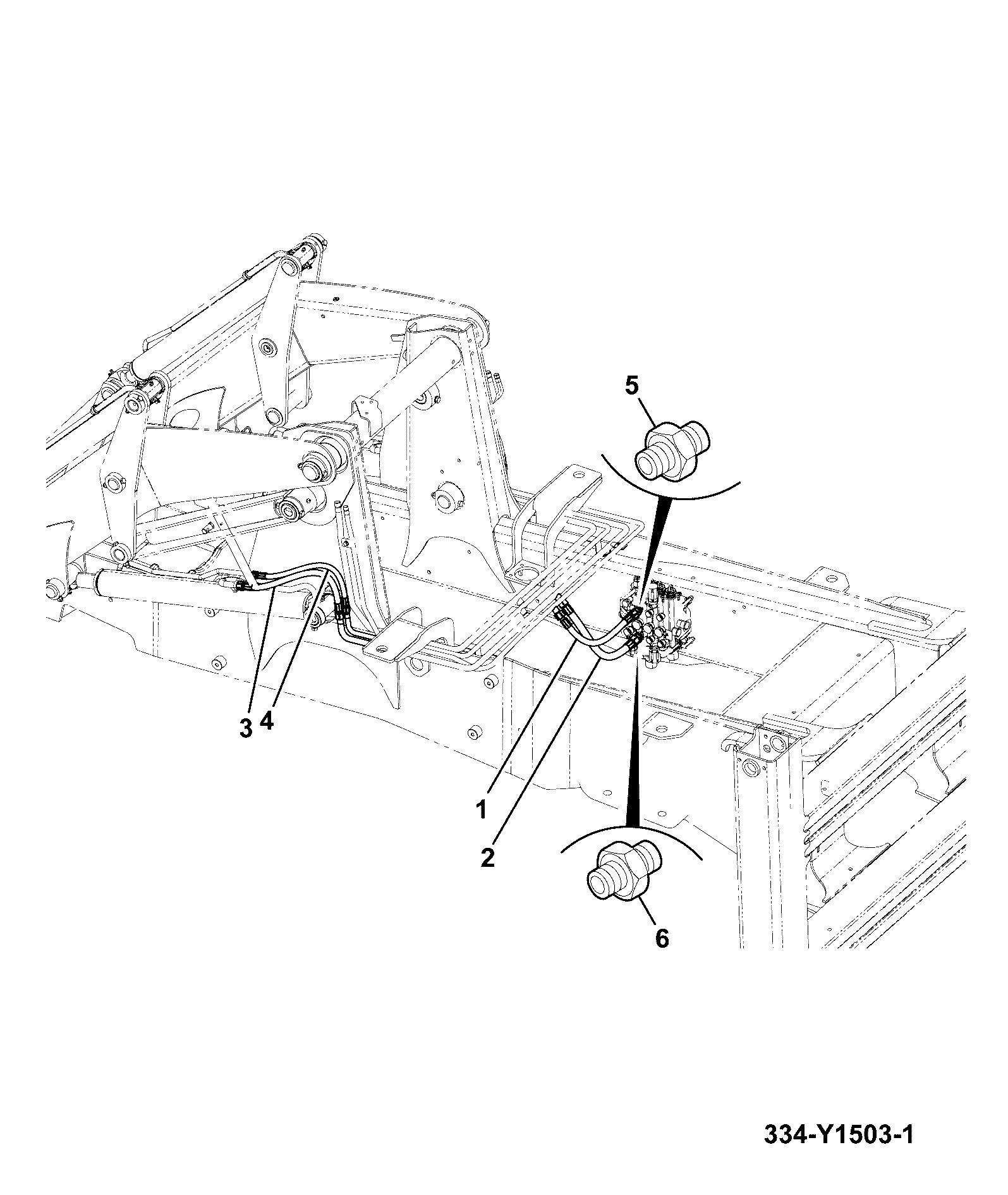

DIAG-E120-20-1-394745 E120-20-1 HYDRAULIC CIRCUITS LOADER END LOADER LIFT RAM
View Diagram -
DIAG-E120-25-5-394745 E120-25-5 HYDRAULIC CIRCUITS LOADER END SHOVEL RAM
View Diagram -

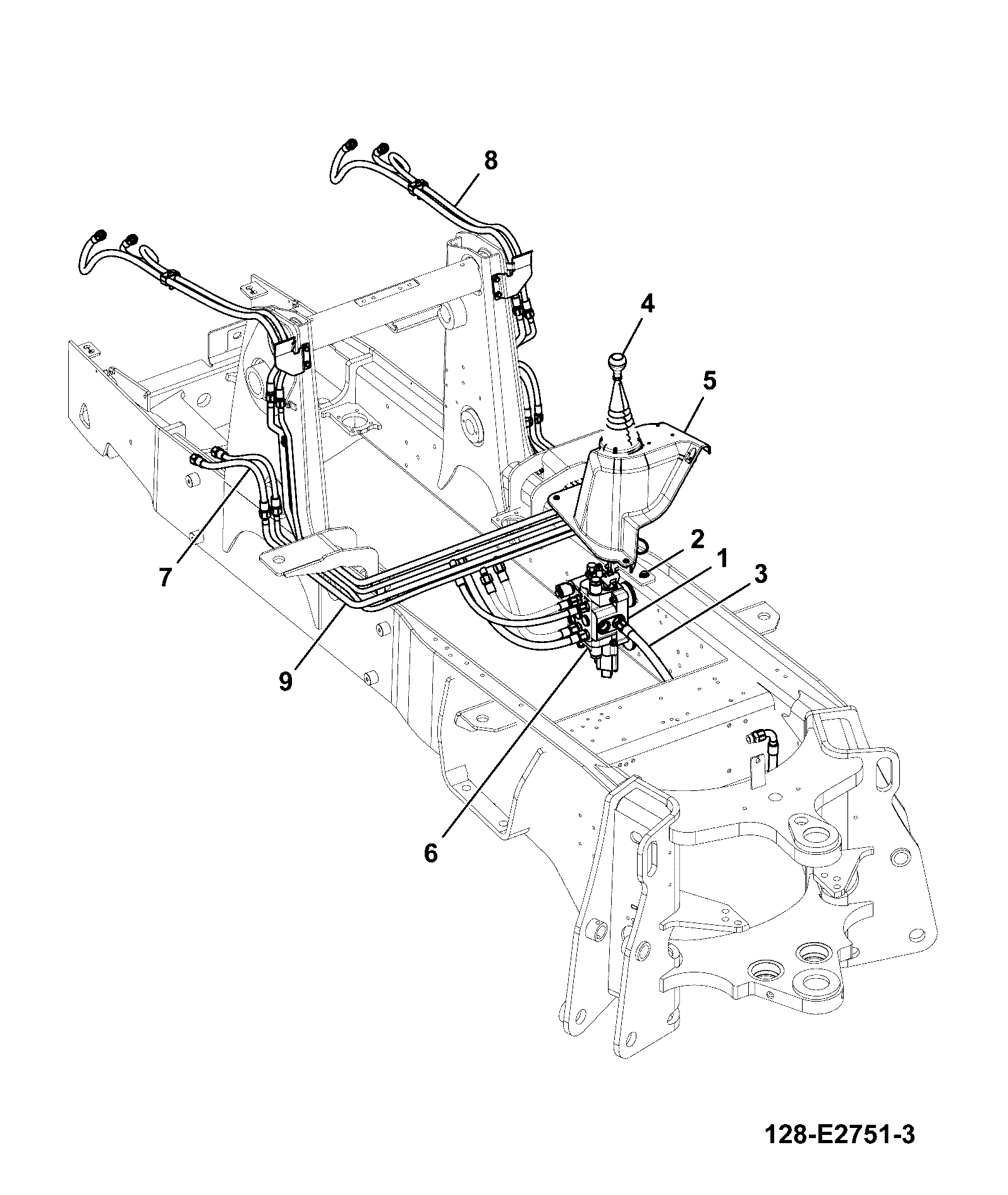

DIAG-E120-5-1-394745 E120-5-1 HYDRAULIC CIRCUITS LOADER END LOADER CONTROLS
View Diagram
