Scroll to zoom Click a part # to view details

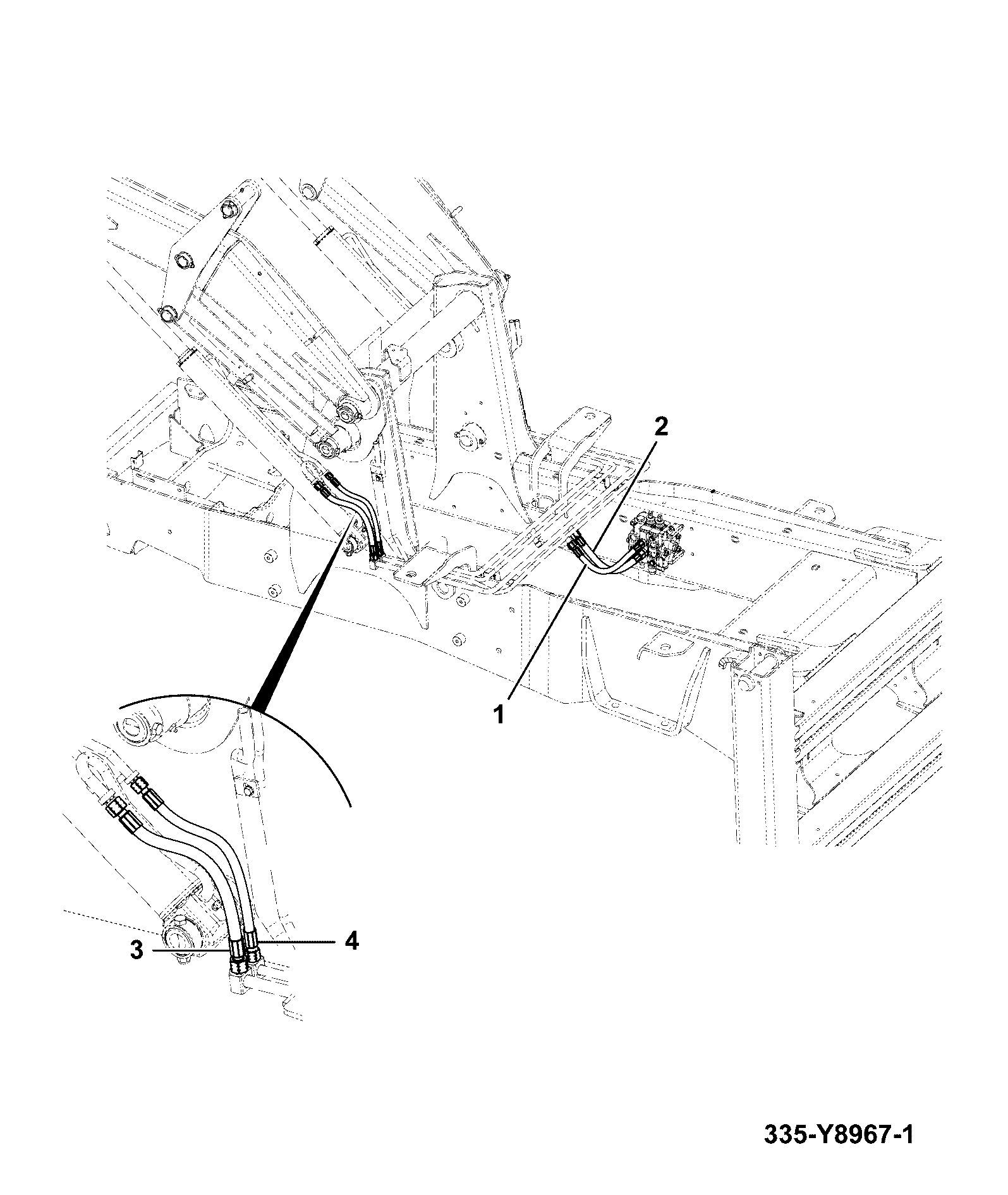

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE -06 BSP HP 1200mm B 333/F7219 | 1 | $77.94 | |||
| 2 | HOSE 5/8BSP 1630mm 614/21100 | 1 | $103.25 | |||
| 3 | HOSE -10 BSP HP 800mm B 335/H2973 | 1 | $97.05 | |||
| 4 | HOSE 5/8BSP 950mm 336/Y2209 614/20900 | 1 | $153.58 | |||
| 5 | WA P-LINE PIPE 401/H3023 | 1 | $33.09 | |||
| 6 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 7 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 8 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 9 | BOLT M10x70 1315/3416Z | 1 | $4.90 | |||
| 10 | HOSE CLAMP 40/303576 | 1 | $0.65 | |||
| 11 | CLAMP PLATE 821/00496 | 1 | $4.93 | |||
| 12 | SPACER 10.2x30x10 336/Y2395 | 1 | $0.86 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-E120-15-1-394738 E120-15-1 HYDRAULIC CIRCUITS LOADER END PIPELINES ASSEMBLY
View Diagram -
DIAG-E120-35-1-394738 E120-35-1 HYDRAULIC CIRCUITS LOADER END ASSEMBLY SHOVEL RAM
View Diagram -
DIAG-E120-10-1-394738 E120-10-1 HYDRAULIC CIRCUITS LOADER END LIFT RAM
View Diagram
