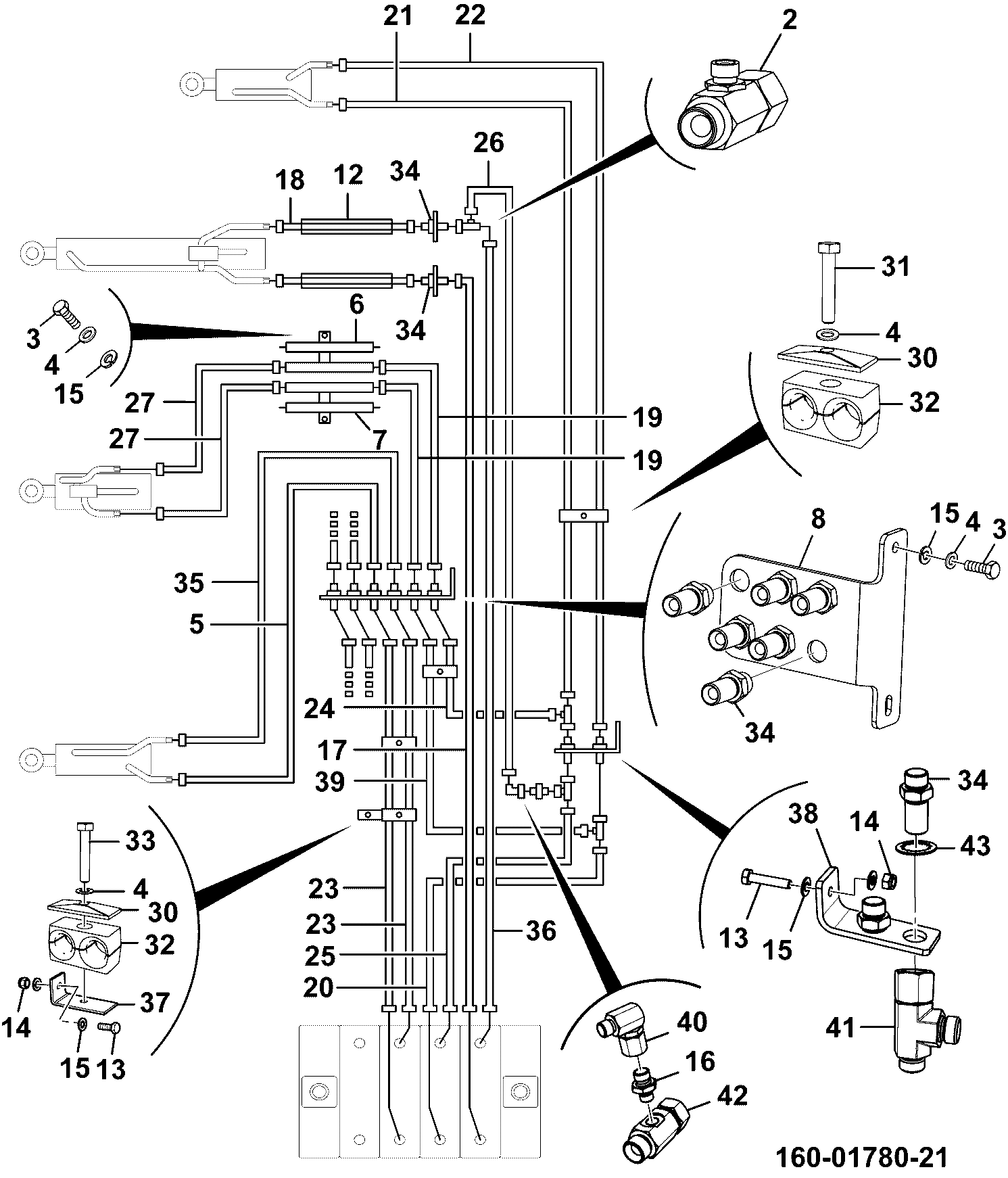

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| HOSE SLEEVE 1/2BSP 1200mm 334/C9323 | 1 | $65.31 | ||||
| 2 | CL2 BSP ADAPTOR 816/90284 | 1 | $46.32 | |||
| 3 | SET SCREW M8x16 1315/0303Z | 1 | $2.03 | |||
| 4 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 5 | SA HOSE 1/2BSP 850 HP B S 334/C9441 | 1 | $106.86 | |||
| 6 | WA L.H. PIPE 400/L9209 | 1 | $447.69 | |||
| 7 | WA R.H. PIPE 400/L9203 | 1 | $393.00 | |||
| 8 | WA REAR BOOM GUIDE 332/E6896 334/F3460 | 1 | $54.14 | |||
| 12 | TUBE-2.4 METRES 647/02721 647/02703 | 1 | $195.62 | |||
| 13 | BOLT M8x40 1315/3310Z | 1 | $3.09 | |||
| 14 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 15 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 16 | ADAPTOR. G1/4A - 7/16 SAE 816/90167 | 1 | $126.95 | |||
| 17 | HOSE 1/2 BSP 1360 332/E8801 | 1 | $92.89 | |||
| 18 | SA HOSE 1/2BSP 1255mm HP 334/C9322 | 1 | $114.96 | |||
| 19 | SA HOSE 1/2BSP 660mm HP S 334/C9238 | 1 | $92.43 | |||
| 20 | HOSE 1/2BSP 840mm 613/33400 | 1 | $68.24 | |||
| 21 | HOSE 1/2BSP 1000mm 332/C0033 | 1 | $123.32 | |||
| 22 | HOSE - 08 BSP HP 1020mm A 333/E2517 | 1 | $83.45 | |||
| 23 | HOSE 613/24300 | 1 | $218.85 | |||
| 24 | HOSE - 08 BSP HP 970mm B 333/E2450 | 1 | $68.65 | |||
| 25 | HOSE - 08 BSP HP 760mm B 333/E2508 | 1 | $123.39 | |||
| 26 | #4 BSP HP 1010mm B 611/24300 | 1 | $59.19 | |||
| 27 | SA HOSE 6780mm RED 333/D6586 402/X2831 | 1 | $282.74 | |||
| 30 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 31 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 32 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $34.86 | |||
| 33 | BOLT M8 x 65 G8.8 1315/3315Z | 1 | $4.41 | |||
| 34 | ADAPTOR 1/2BSP X1/2 BSP BULKHEAD 816/90032 | 1 | $30.50 | |||
| 35 | SA HOSE 1/2BSP 720 HP B S 334/C9483 | 1 | $102.90 | |||
| 36 | Hose 1/2 bsp 740mm 332/U0361 | 1 | $132.46 | |||
| 37 | HOSE BRKT 333/E1352 | 1 | $28.19 | |||
| 38 | BULKHEAD MOUNTING PLT 333/E1662 | 1 | $13.98 | |||
| 39 | HOSE - 1/2 1040 MM 332/W2449 | 1 | $133.90 | |||
| 40 | ELBOW ADAPTOR 1/4BSP (P493) 816/90004 | 1 | $35.04 | |||
| 41 | ADAPTOR TEE 816/90270 | 1 | $97.34 | |||
| 42 | ADAPTER, TEE 816/90404 | 1 | $73.80 | |||
| 43 | WASHER 7/8" INT LOCK 1418/0018Z | 1 | $5.34 | |||
Showing 1 to 38 of 38 parts
Related Assemblies
-
DIAG-E120-60-1-402571 E120-60-1 HYDRAULIC CIRCUITS LOADER END LOADER AUXILIARY LOADER VALVE TO BOOM
View Diagram -
DIAG-E120-200-5-402571 E120-200-5 HYDRAULIC CIRCUITS LOADER END LIFT END
View Diagram -

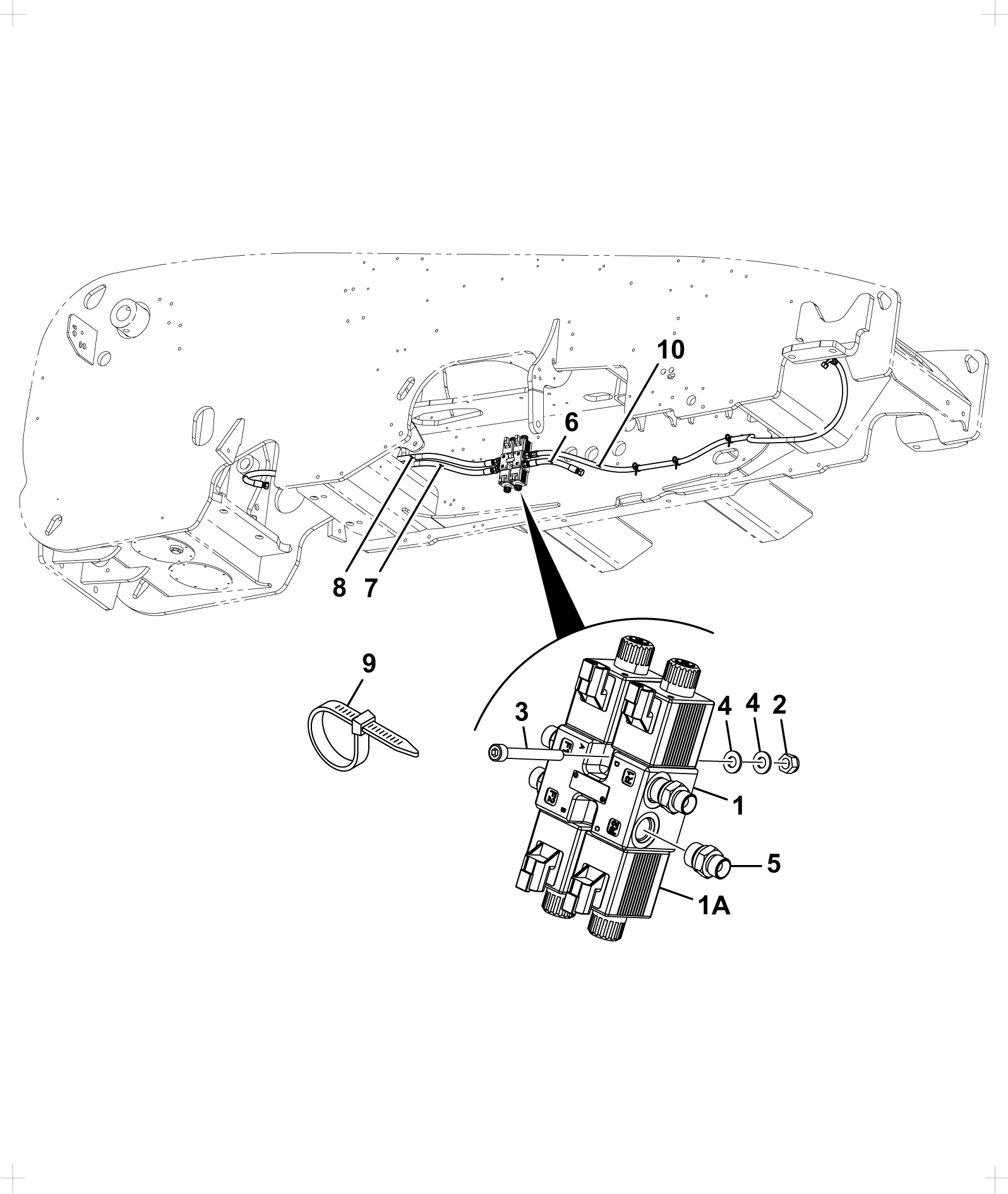

DIAG-E190-5-1-402571 E190-5-1 OTHER HYDRAULIC CIRCUITS STEER VALVE AUTO
View Diagram
