Scroll to zoom Click a part # to view details

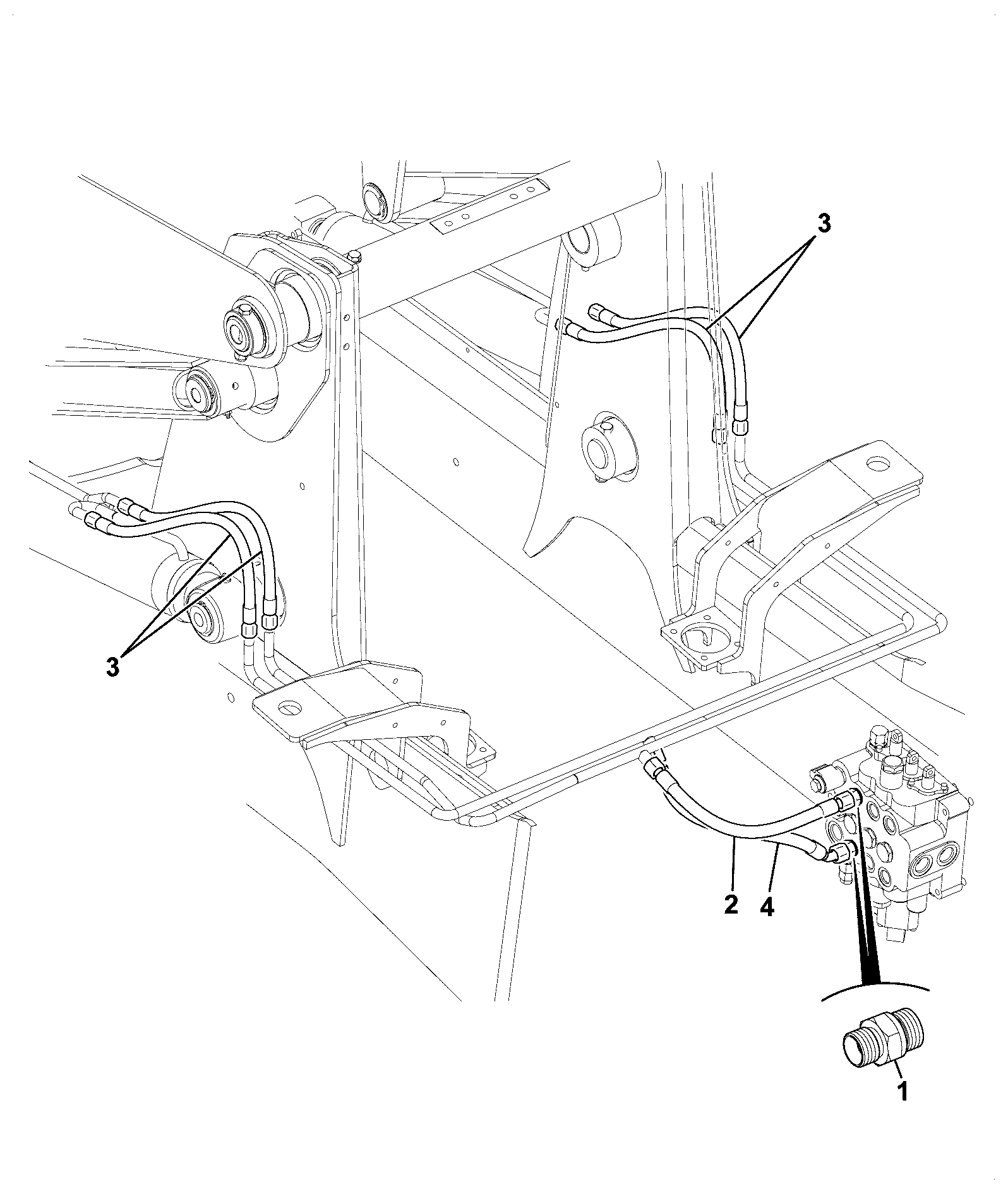

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 2 | HOSE 1/2 BSP HP 680A 33AP/AA068 | 1 | $52.60 | |||
| 3 | HOSE 3/8 BSP HP 18 333/C3528 | 1 | $119.86 | |||
| 11 | TWIN CLAMP MOULDING 821/00347 | 1 | $31.20 | |||
| 12 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 21 | HOSE GUIDE 331/26243 | 1 | $11.96 | |||
| 22 | SOCKET SCREW M10x40 332/D3982 | 1 | $1.91 | |||
| 23 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 31 | R/H HOSE GUIDE 333/E7506 | 1 | $22.17 | |||
| 32 | L/H HOSE GUIDE 333/E6403 | 1 | $6.05 | |||
| 33 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 34 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 35 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 36 | CLAMP COVER PLATE 821/00335 | 1 | $8.08 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-E120-35-1-394802 E120-35-1 HYDRAULIC CIRCUITS LOADER END LOADER CROSSOVER SMOOTH RIDE SYSTEM BUILDS
View Diagram -

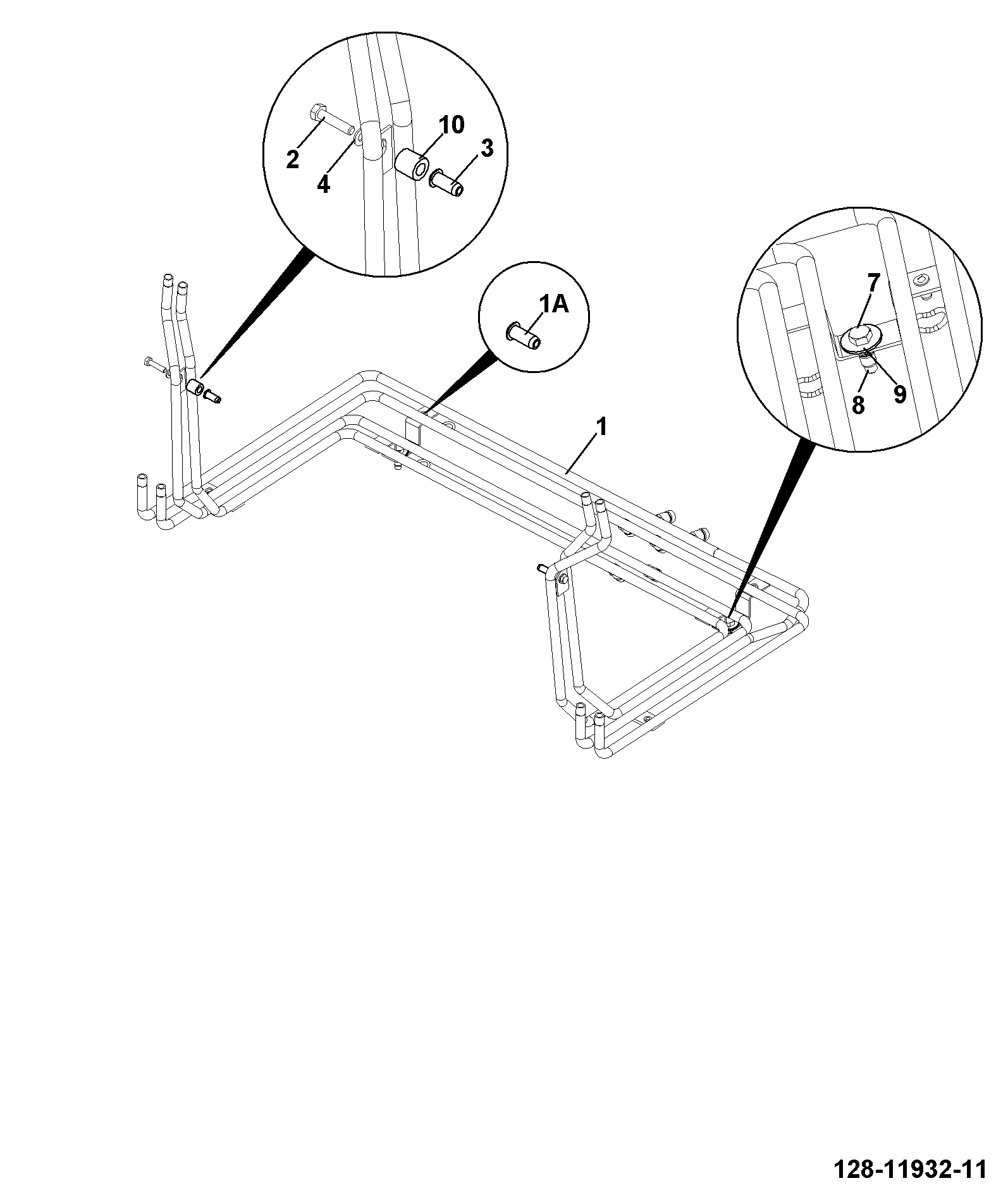

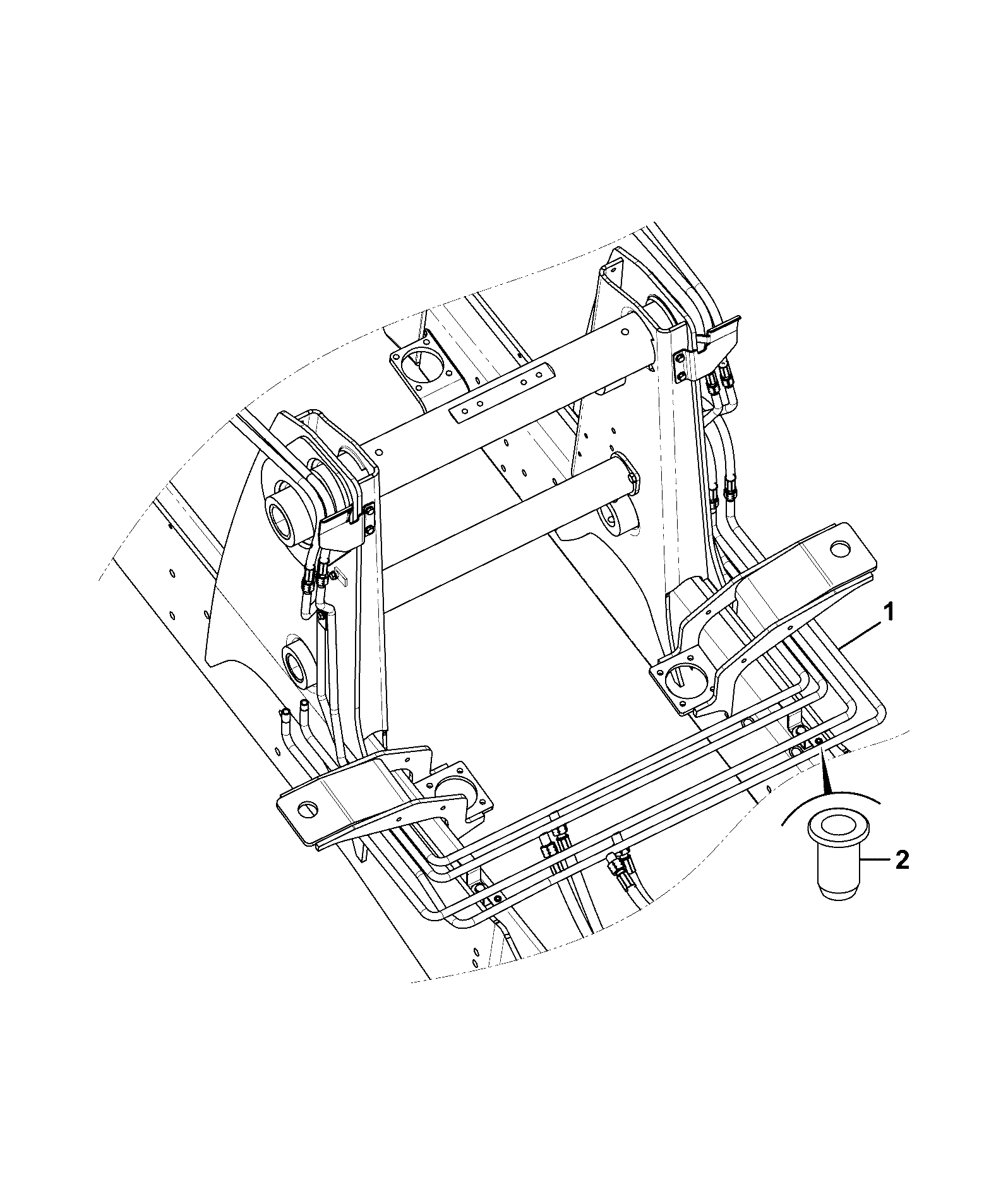

DIAG-E120-5-1-394802-10792772 E120-5-1 HYDRAULIC CIRCUITS LOADER END LOADER PIPES CROSSOVER
View Diagram -
DIAG-E120-1-1-394802 E120-1-1 HYDRAULIC CIRCUITS LOADER END LOADER LIFT
View Diagram
