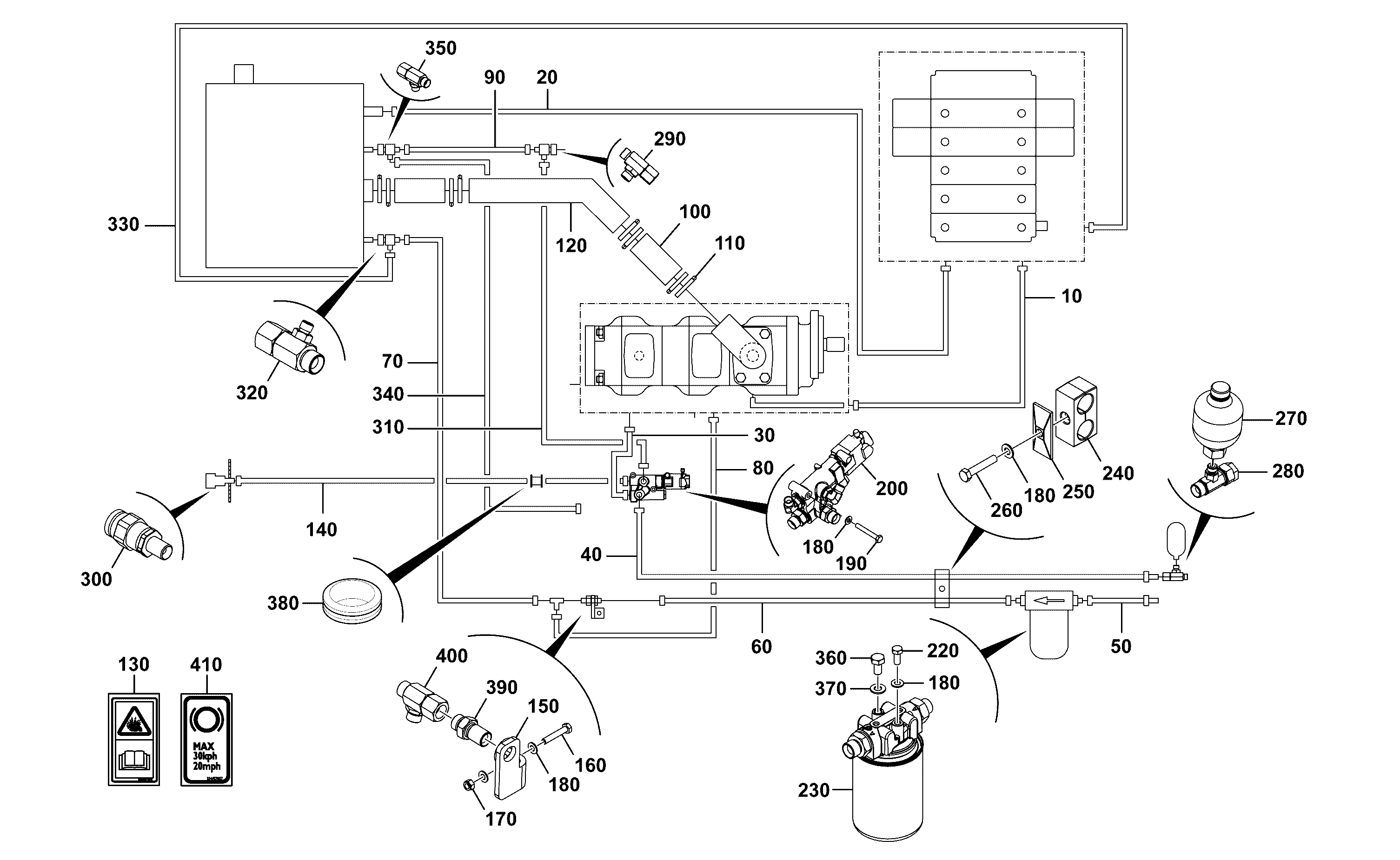

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 20 | WA LEFT LIFT FEED PIPE 333/P9176 | 1 | $287.21 | |||
| 30 | SET SCREW M8x16 1315/0303Z | 1 | $2.03 | |||
| 40 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 50 | HOSE 1/2BSP 850mm 613/36009 | 1 | $76.79 | |||
| 60 | WA L.H. PIPE 333/C5166 400/M6869 | 1 | $444.45 | |||
| 70 | WA R.H. PIPE 333/C5164 400/M6865 | 1 | $471.57 | |||
| 80 | WA REAR BOOM GUIDE 332/E6896 334/F3460 | 1 | $54.14 | |||
| 90 | WA LIFT RAM FEED PIPE 333/P9177 | 1 | $207.69 | |||
| 100 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $0.56 | |||
| 110 | Sleeve PVC 647/02507 647/02508 | 1 | $27.36 | |||
| 120 | PVC SLEEVE 38 x 790mm 647/02723 | 1 | $16.16 | |||
| 130 | BOLT M8x40 1315/3310Z | 1 | $3.09 | |||
| 140 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $6.63 | |||
| 150 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 160 | ADAPTOR. G1/4A - 7/16 SAE 816/90167 | 1 | $126.95 | |||
| 170 | HOSE 1/2" BSP 470mm 613/22300 | 1 | $97.73 | |||
| 180 | HOSE 1/2BSP 715mm 613/22800 | 1 | $134.47 | |||
| 190 | HOSE 26 1/2 STR/STR 613/01000 | 1 | $102.96 | |||
| 200 | HOSE 1/2BSP 840mm 613/33400 | 1 | $68.24 | |||
| 210 | HOSE 1/2BSP 1000mm 332/C0033 | 1 | $123.32 | |||
| 220 | HOSE - 08 BSP HP 1020mm A 333/E2517 | 1 | $83.45 | |||
| 230 | HOSE 613/24300 | 1 | $218.85 | |||
| 240 | BSP HP 750mm B 611/80141 | 1 | $45.53 | |||
| 250 | HOSE - 08 BSP HP 970mm B 333/E2450 | 1 | $68.65 | |||
| 260 | HOSE 36 1/2 STR/STR 613/01300 | 1 | $132.81 | |||
| 270 | SA HOSE 6740mm YELLOW 333/E0841 402/X2741 | 1 | $338.29 | |||
| 280 | ADAPTOR 1/2BSP X1/2 BSP BULKHEAD 816/90032 | 1 | $30.50 | |||
| 300 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 310 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 320 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $4.84 | |||
| 330 | BOLT M8 x 65 G8.8 1315/3315Z | 1 | $4.41 | |||
| 340 | ADAPTOR TEE 816/90270 | 1 | $25.86 | |||
| 350 | ADAPTER, TEE 816/90404 | 1 | $73.80 | |||
| 360 | ELBOW ADAPTOR 1/4BSP (P493) 816/90004 | 1 | $35.04 | |||
| 370 | HOSE BRKT 333/E1352 | 1 | $28.19 | |||
| 380 | BULKHEAD MOUNTING PLT 333/E1662 | 1 | $13.98 | |||
| 390 | HOSE - 08 BSP HP 760mm B 333/E2508 | 1 | $123.39 | |||
| 400 | HOSE - 1/2 1040 MM 332/W2449 | 1 | $133.90 | |||
Showing 1 to 38 of 38 parts
Related Assemblies
-

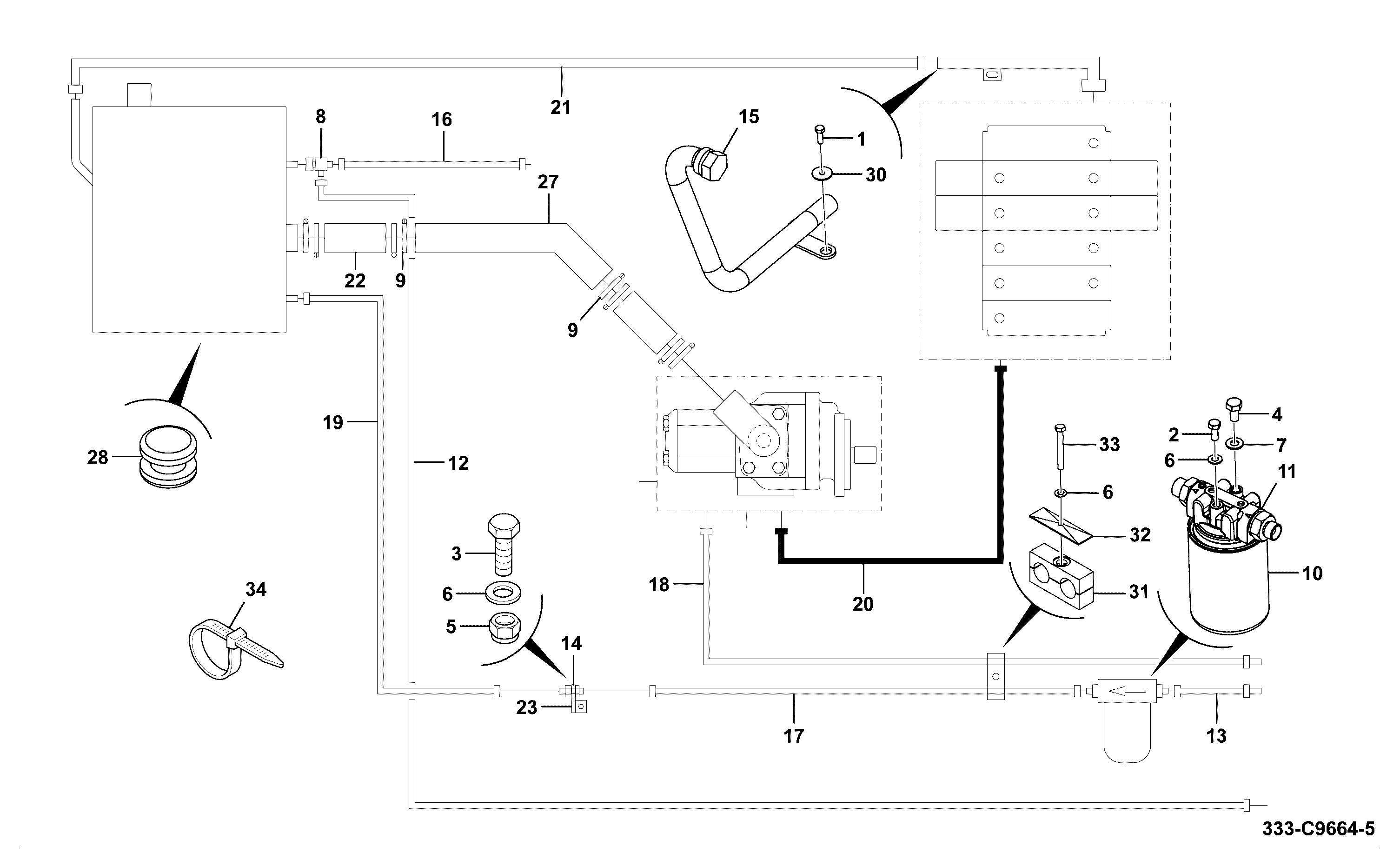

DIAG-E130-55-1-400935 E130-55-1 HYDRAULIC CIRCUITS CHASSIS
View Diagram -

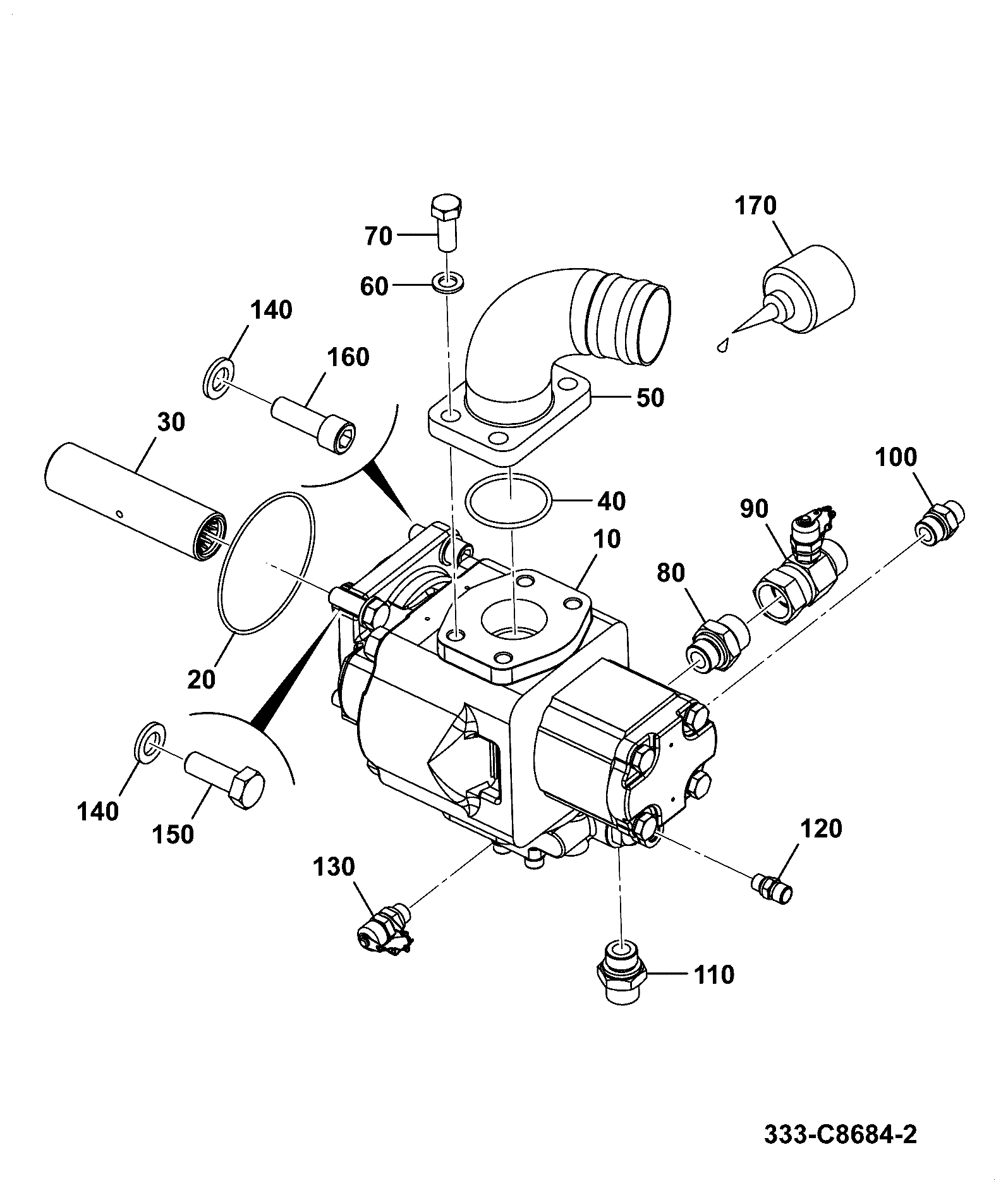

DIAG-E200-5-1-400935 E200-5-1 PUMP/MOTOR INSTALLATION ASSEMBLIES PUMP 105 L/Min
View Diagram -
DIAG-E100-125-1-400935 E100-125-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES NEUTRAL CCT
View Diagram
