Scroll to zoom Click a part # to view details

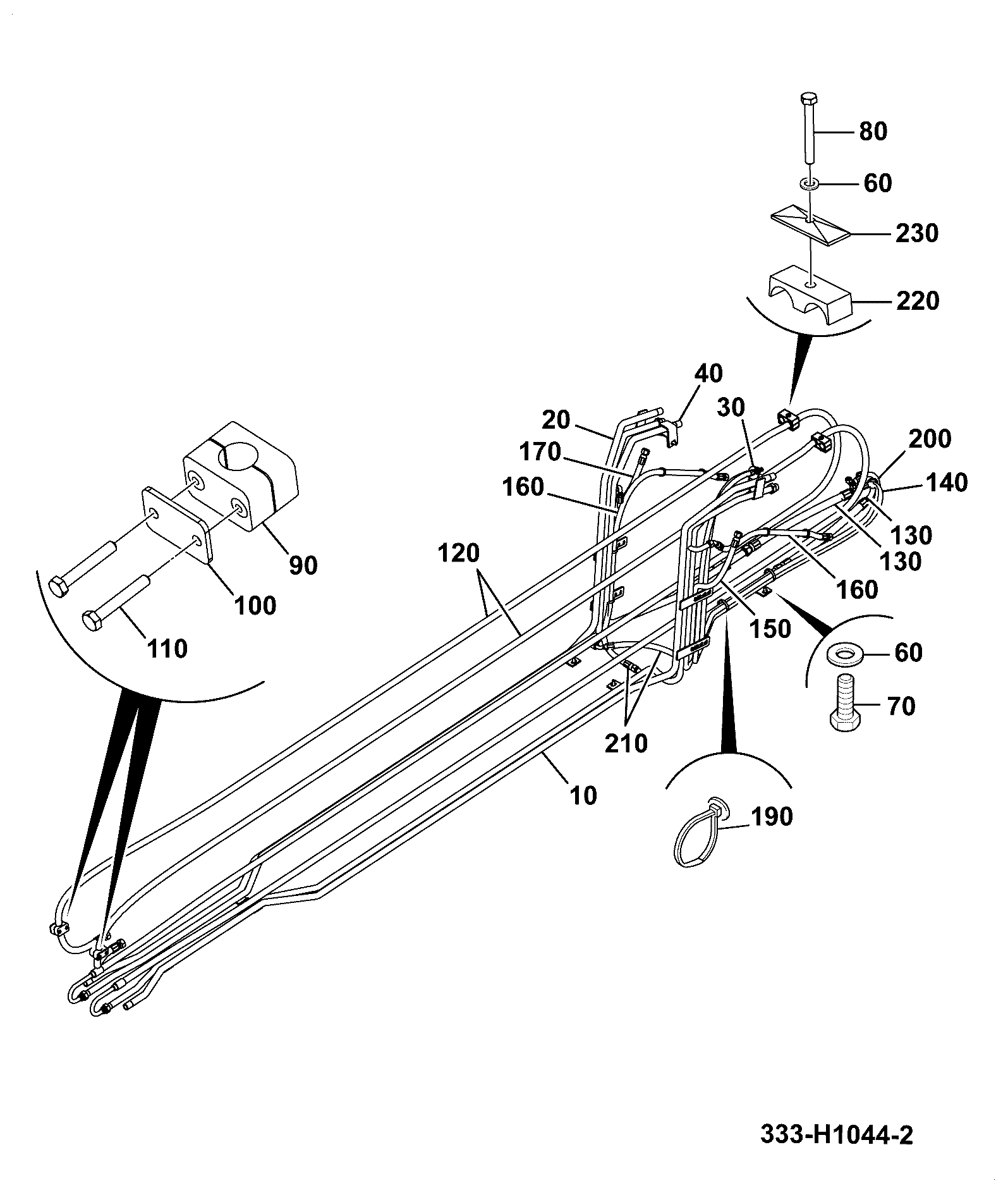

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | WA LH BOOM PIPES 5YJ/K 400/Z8678 | 1 | $689.41 | |||
| 20 | WA RH BOOM PIPES 5AW 400/M7357 | 1 | $1,066.17 | |||
| 30 | WA LH EXT PIPE 5YJ/K 400/Z8708 | 1 | $431.12 | |||
| 40 | WA RH EXT PIPE 5YJ/K 400/Z8716 | 1 | $429.63 | |||
| 60 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 70 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 90 | CLAMP HOUSING 821/00307 | 1 | $32.36 | |||
| 100 | CLAMP PLATE 332/C2625 | 1 | $10.34 | |||
| 110 | SET SCREW M6 x 40 G8.8 1315/0210D | 1 | $0.81 | |||
| 120 | HOSE -08 BSP HP 7825mm B 334/F3713 | 1 | $319.60 | |||
| 130 | HOSE -10 BSP HP 550 mm B 614/80055 | 1 | $61.53 | |||
| 140 | SA HOSE 04 700 WHITE 333/D8175 | 1 | $84.03 | |||
| 150 | SA HOSE-06 BSP HP 330 B S 334/C9359 | 1 | $78.94 | |||
| 150A | HOSE SLEEVE 3/8BSP 263MM 334/C9356 | 1 | $15.92 | |||
| 160 | SA HOSE-06 BSP HP 875 A S 334/C9406 | 1 | $89.46 | |||
| 170 | SA HOSE-06 BSP HP 380 B S 334/C9380 | 1 | $80.67 | |||
| 180 | SA HOSE-06 BSP HP 800 B S 400/V9099 | 1 | $77.18 | |||
| 180A | HOSE SLEEVE 3/8BSP 729MM 400/V9104 | 1 | $21.61 | |||
| 190 | CABLE TIE LOCKING(KANBAN) 826/11436 | 1 | $2.75 | |||
| 200 | SA HOSE 04 700 RED 333/D8194 | 1 | $65.96 | |||
| 210 | SA HOSE-06 BSP HP 270 B S 334/C9153 | 1 | $103.69 | |||
| 220 | PIPE CLAMP 821/00350 | 1 | $42.80 | |||
| 230 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 240 | SA HOSE-10 BSP HP 550 B S 334/C9624 | 1 | $108.22 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-E120-70-1-402725 E120-70-1 HYDRAULIC CIRCUITS LOADER END BOOM 550-80
View Diagram -
DIAG-E120-50-1-402725 E120-50-1 HYDRAULIC CIRCUITS LOADER END LIFT RAM SRS
View Diagram -
DIAG-E130-9-1-402725 E130-9-1 HYDRAULIC CIRCUITS CHASSIS HITCH AND REAR AUXILIARY
View Diagram
