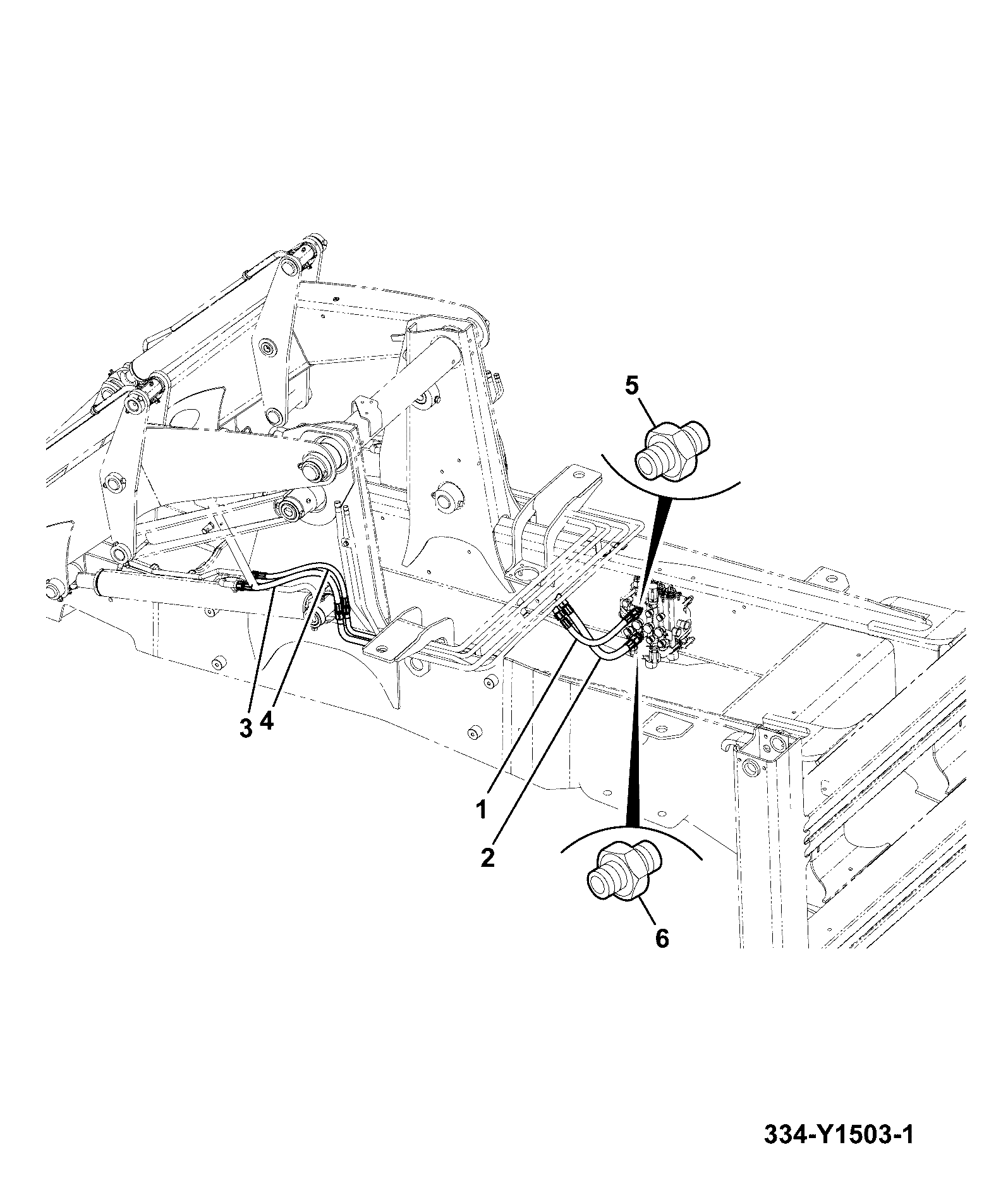

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | LH AUX FEED PIPE 332/Y2955 | 1 | $64.72 | |||
| 20 | RH AUX FEED PIPE 335/04374 | 1 | $64.72 | |||
| 30 | L/H PIPE LDR. SHORT 3/8" 335/03247 | 1 | $342.52 | |||
| 40 | R/H PIPE LDR. SHORT 3/8" 335/03248 | 1 | $296.95 | |||
| 50 | HOSE 3/8BSP 530mm 612/80099 | 1 | $81.26 | |||
| 60 | HOSE 3/8BSP 700mm 612/80079 | 1 | $241.93 | |||
| 70 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 80 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 90 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 100 | PIPE CLAMP 40/303614 | 1 | $5.96 | |||
| 110 | BOLT M10x45 1315/3411Z | 1 | $5.64 | |||
| 120 | (W) (Pre-P)-BOLT M8x55 1315/3313Z | 1 | $2.47 | |||
| 130 | O-RING 828/00135 | 1 | $0.38 | |||
| 140 | ADAPTOR (M/M) 816/17071 816/90152 | 1 | $9.04 | |||
| 150 | HOSE SPIRAL 40/302889 | 1 | $4.14 | |||
| 160 | SPACER TUBE 658/00737 | 1 | $150.23 | |||
Showing 1 to 16 of 16 parts
