Scroll to zoom Click a part # to view details

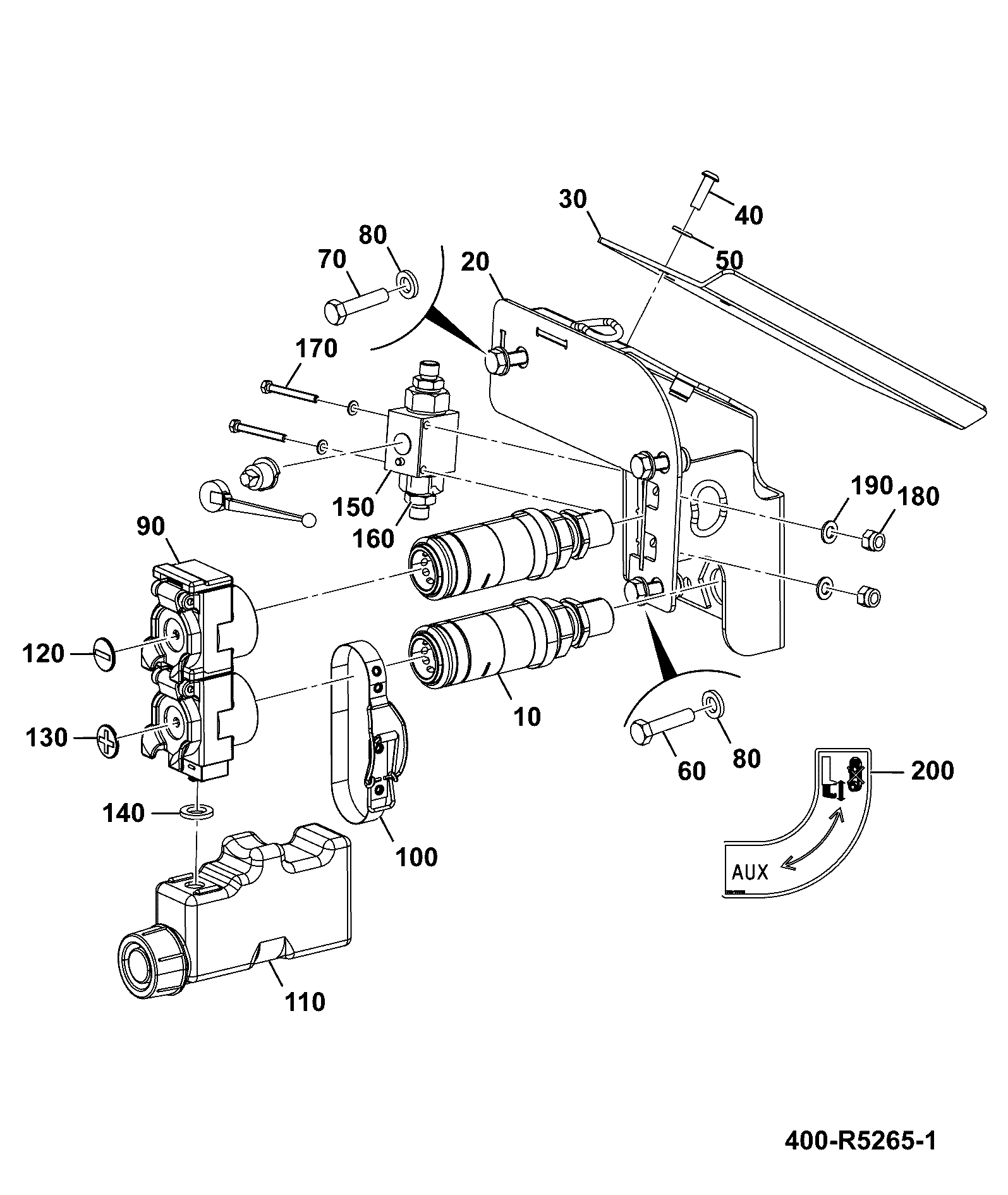

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 40 | ADAPTOR 1-1/16SAExG5/8A 816/90476 | 1 | $71.09 | |||
| 50 | ADAPTOR G5/8A-1-1/16UNF(M) 1620/0008 1620/2057 | 1 | $25.23 | |||
| 60 | Bolt M8 X 120 LG 1315/3322D | 1 | $4.11 | |||
| 70 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 80 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 90 | CL2 BSP ADAPTOR 816/90284 | 1 | $46.32 | |||
| 100 | RESTRICTOR G1/4A x G1/4 816/20068 816/90195 | 1 | $46.78 | |||
| 110 | ABI PIPE CLAMP DIA 23 821/00253 | 1 | $27.87 | |||
| 120 | CLAMP PLATE 332/C2625 | 1 | $10.34 | |||
| 130 | (W) (P) BOLT M6x40 1315/3210D | 1 | $5.10 | |||
| 140 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 160 | HOSE 5/8BSP 320mm 614/27000 | 1 | $53.90 | |||
| 170 | HOSE 614/24300 | 1 | $63.83 | |||
| 180 | HOSE 10 BSP HP 2450 A 333/F2913 | 1 | $150.74 | |||
| 190 | Hose 5/8"BSP 1585 332/C1348 | 1 | $111.46 | |||
| 200 | HOSE 5/8BSP 875mm 614/23300 | 1 | $180.15 | |||
| 210 | HOSE 1/2BSP 480mm 613/07300 | 1 | $80.24 | |||
| 220 | HOSE -08 BSP HP 480mm B 33AG/DA048 | 1 | $67.53 | |||
| 230 | HOSE -04 BSP HP 260mm B 400/S1452 | 1 | $71.79 | |||
| 240 | HOSE -04 BSP HP 1020mm B 31AG/BA102 | 1 | $63.68 | |||
| 250 | HOSE -04 BSP HP 600mm A 400/S1465 | 1 | $75.58 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-E190-40-1-402703 E190-40-1 OTHER HYDRAULIC CIRCUITS AUXILIARY REAR WITH HYD. HITCH
View Diagram -

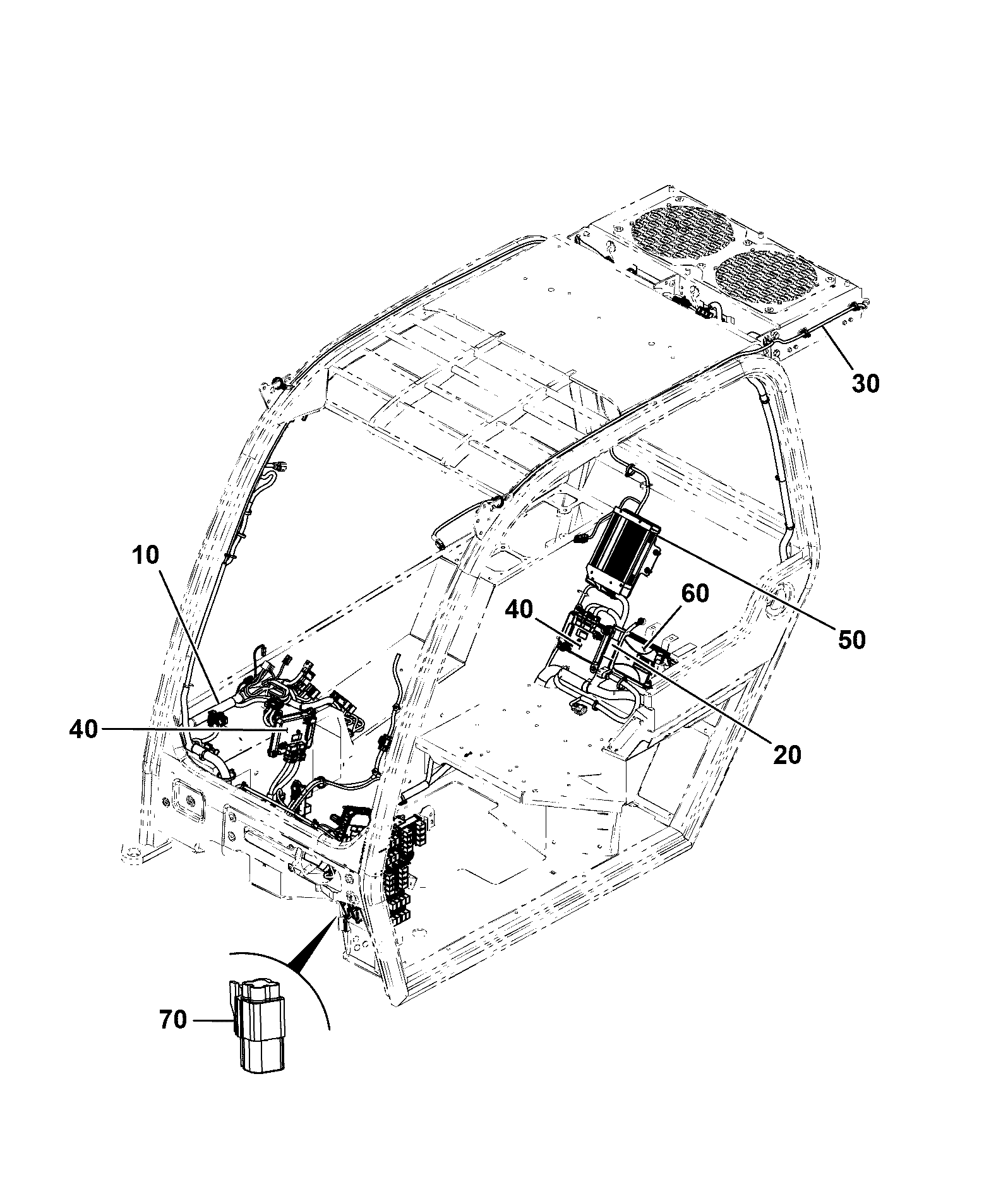

DIAG-C300-90-1-402703 C300-90-1 ELECTRICS CAB INSTALLATION ASSEMBLIES HARNESS PS760 SMJ + ATC
View Diagram -

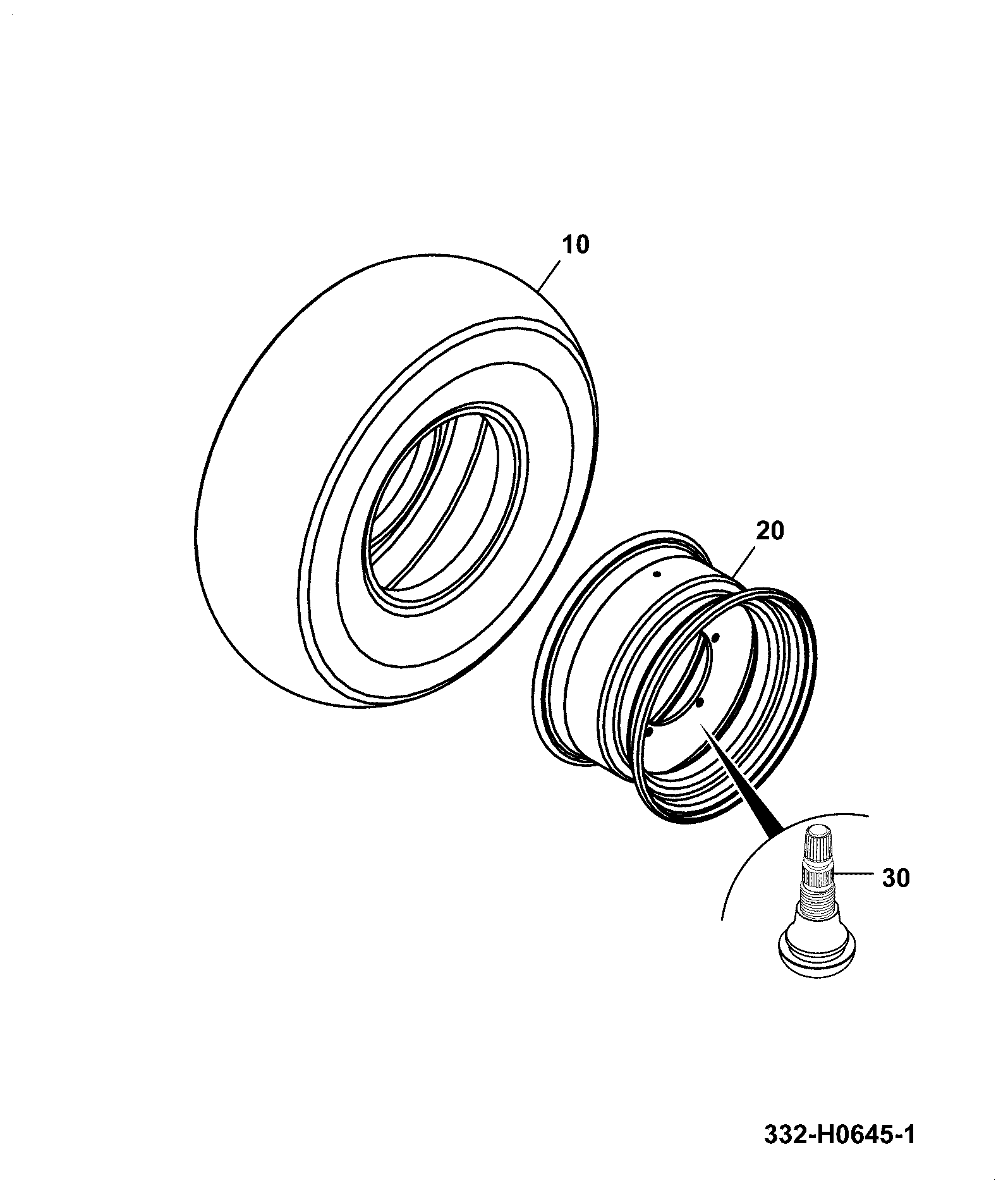

DIAG-F330-30-1-402703 F330-30-1 WHEELS AND TYRES FRONT AND REAR MICHELIN 480/80 R26 BIBLOAD
View Diagram
