Scroll to zoom Click a part # to view details

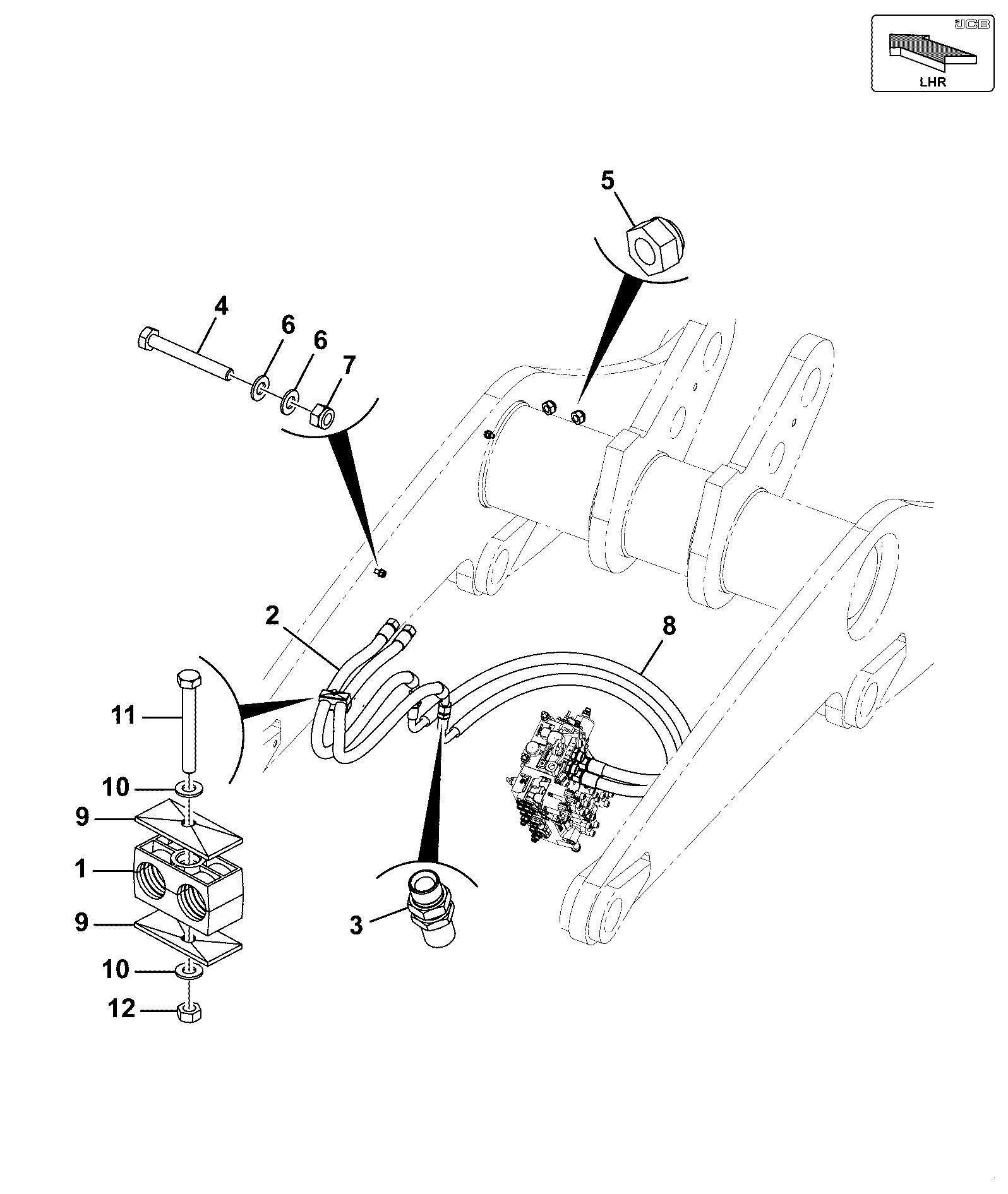

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA AUX ARM PIPEWORK 335/08589 | 1 | $265.67 | |||
| 2 | HOSE - 3/4 1360 MM 332/W2531 | 1 | $377.87 | |||
| 3 | ADAPTER 816/10159 | 1 | $25.45 | |||
| 4 | BOLT M10x80 1315/3418D | 1 | $2.43 | |||
| 5 | (S) CAP - 3/4"BSP 816/00196 | 1 | $37.26 | |||
| 6 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 7 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 8 | HOSE 3/4BSP 740mm 615/80067 | 1 | $112.44 | |||
| 10 | CLAMP DIA 28-28 PAIR 333/U6453 | 1 | $11.66 | |||
| 11 | COVER PLATE 821/00443 | 1 | $8.29 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | BOLT M8 x 1.25p x 70Lg 1315/3316D | 1 | $5.17 | |||
| 14 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
Showing 1 to 13 of 13 parts
