Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | WA LH TWIN AUX PIPE 5AW/5 400/M7125 | 1 | $277.54 | |||
| 10 | WA LH TWIN AUX PIPE 5AW/5TW 333/D0546 | 1 | $484.28 | |||
| 20 | WA RH AUX PIPE LONG 5AW/5 400/M7128 | 1 | $255.23 | |||
| 30 | WA RH AUX PIPE SHORT 5AW/ 400/M6860 | 1 | $160.91 | |||
| 30 | WA RH AUX PIPE SHORT 5AW/5TW 333/D0992 | 1 | $264.56 | |||
| 40 | FRONT MOUNTING BRACKET 333/C5251 | 1 | $25.90 | |||
| 50 | HOSE -10 BSP HP 8060mm B 333/D1251 | 1 | $725.25 | |||
| 60 | SA AUX BLOCK 332/G4865 | 1 | $852.95 | |||
| 70 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 80 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 90 | SET-SCREW M10 L-_16mm 1315/0403Z | 1 | $1.95 | |||
| 100 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 110 | 550-80 AUX HARNESS 721/C3866 | 1 | $847.84 | |||
| 120 | HOSE CLAMP 333/C2087 | 1 | $51.81 | |||
| 130 | AUX BLOCK MTG PLATE 333/D0837 | 1 | $136.34 | |||
| 140 | P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | |||
| 150 | SET-SCREW M_6 L-30mm 1315/0208Z | 1 | $0.33 | |||
| 160 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
| 170 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

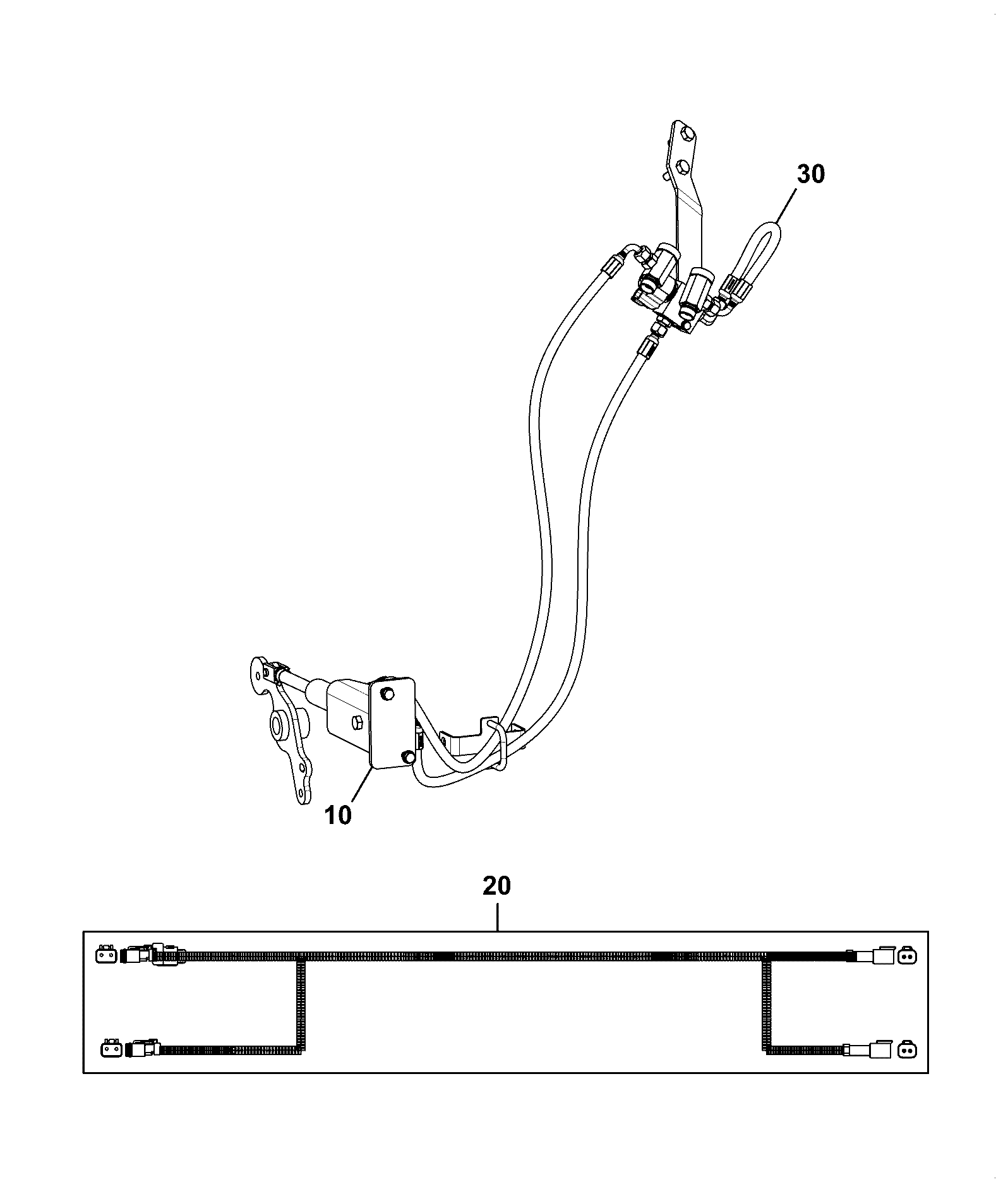

DIAG-E100-100-1-402739 E100-100-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HYDRAULIC PIN LOCK DOUBLE PIN DOUBLE ACTING
View Diagram -

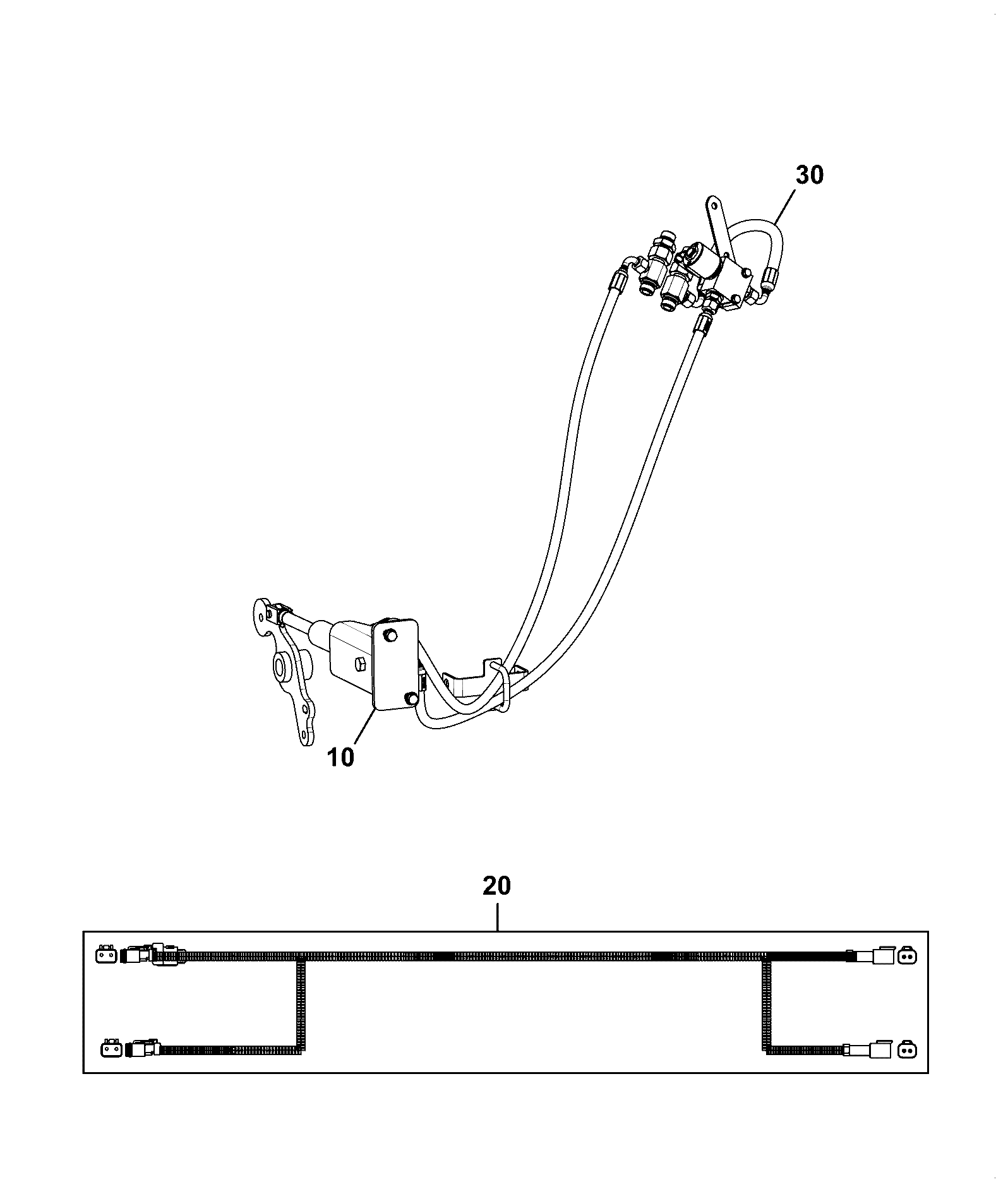

DIAG-E100-95-1-402739 E100-95-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HYDRAULIC PIN LOCK SINGLE PIN DOUBLE ACTING
View Diagram -
DIAG-E100-85-1-402739 E100-85-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HYDRAULIC PIN LOCK SINGLE PIN DOUBLE ACTING
View Diagram
