Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA. L/H PIPE loader aux.5 128/D5625 | 1 | $146.38 | |||
| 2 | WA. R/H PIPE loader aux.5 128/D5700 | 1 | $120.21 | |||
| 3 | R/H PIPE loader long 5/8 335/08592 332/F0910 | 1 | $344.94 | |||
| 4 | L/H PIPE loader long 5/8 335/08593 332/F0919 | 1 | $330.00 | |||
| 5 | HOSE 5/8 BSP HP 640A 34AP/AA064 | 1 | $67.07 | |||
| 6 | HOSE 5/8 BSP HP 540A 34AP/AA054 | 1 | $63.35 | |||
| 7 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
| 8 | ADAPTOR 45 DEG 7/8" UNF X G5/8 334/L7435 | 1 | $99.72 | |||
| 9 | SA HOSE 5/8 BSP HP 980MM 403/D9806 | 1 | $103.85 | |||
| 10 | PLUG BLANKING 5/8 BSP M 816/90913 | 1 | $15.33 | |||
| 11 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 12 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 13 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 14 | DUAL HOSE CLAMP SET 821/10431 | 1 | $1.52 | |||
| 15 | CLAMP PLATE 821/00496 | 1 | $4.93 | |||
| 16 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 19 | O RING 2401/0203 | 1 | $0.65 | |||
| 20 | ADAPTOR G5/8A X G3/8 332/G9222 | 1 | $30.96 | |||
| 22 | Hose HP 5/8BSP X 34AP/AA052 | 1 | $58.84 | |||
| 25 | (W) (P) LABEL - ISO-06A TYPE A 332/F5855 | 1 | $1.89 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-E110-10-1-394908 E110-10-1 HYDRAULIC CIRCUITS ATTACHMENTS CLAMSHOVEL 6 IN 1 CLAM RAMS 96"
View Diagram -

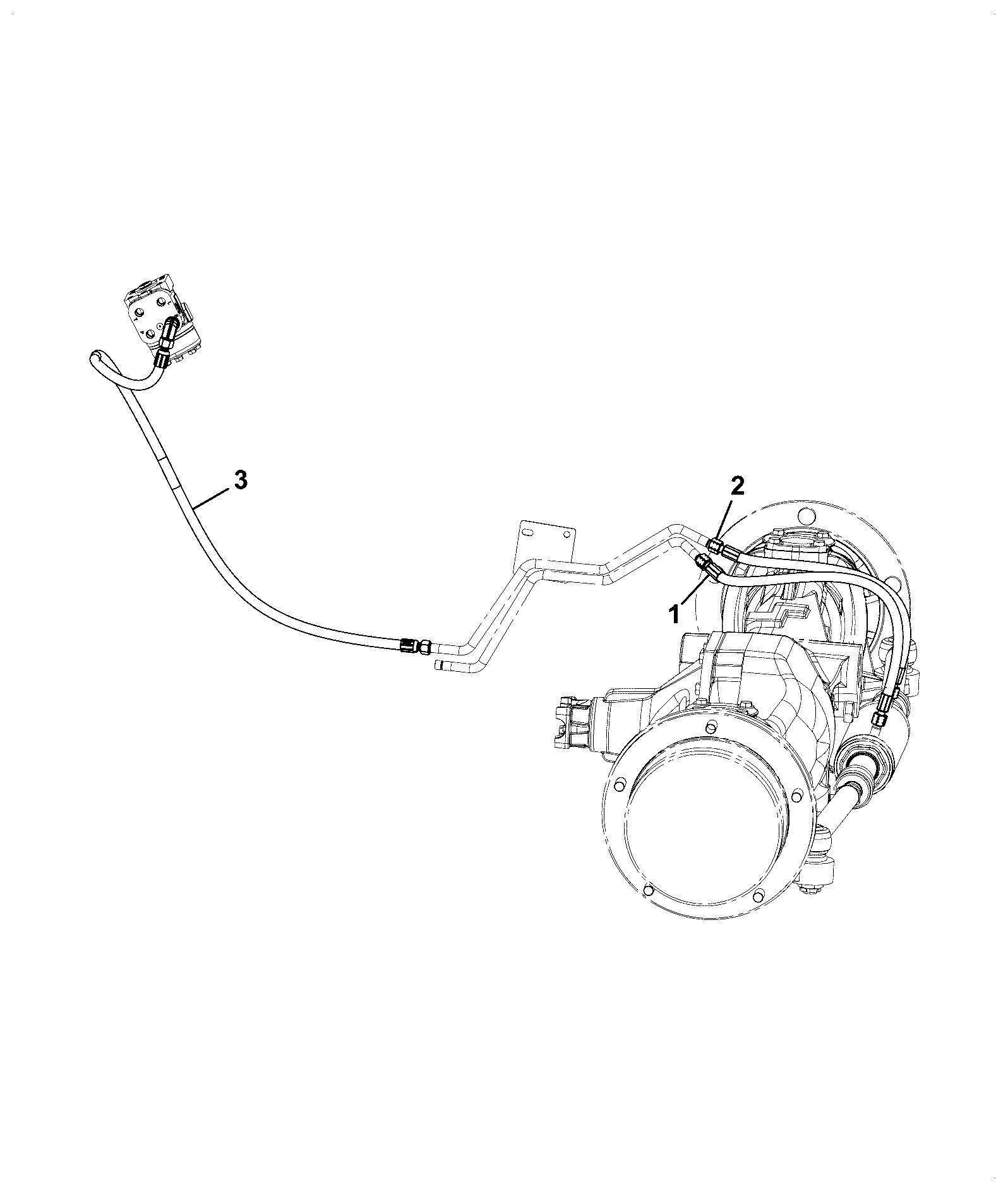

DIAG-E130-220-1-394908-10959812 E130-220-1 HYDRAULIC CIRCUITS CHASSIS STEER RAM AWS
