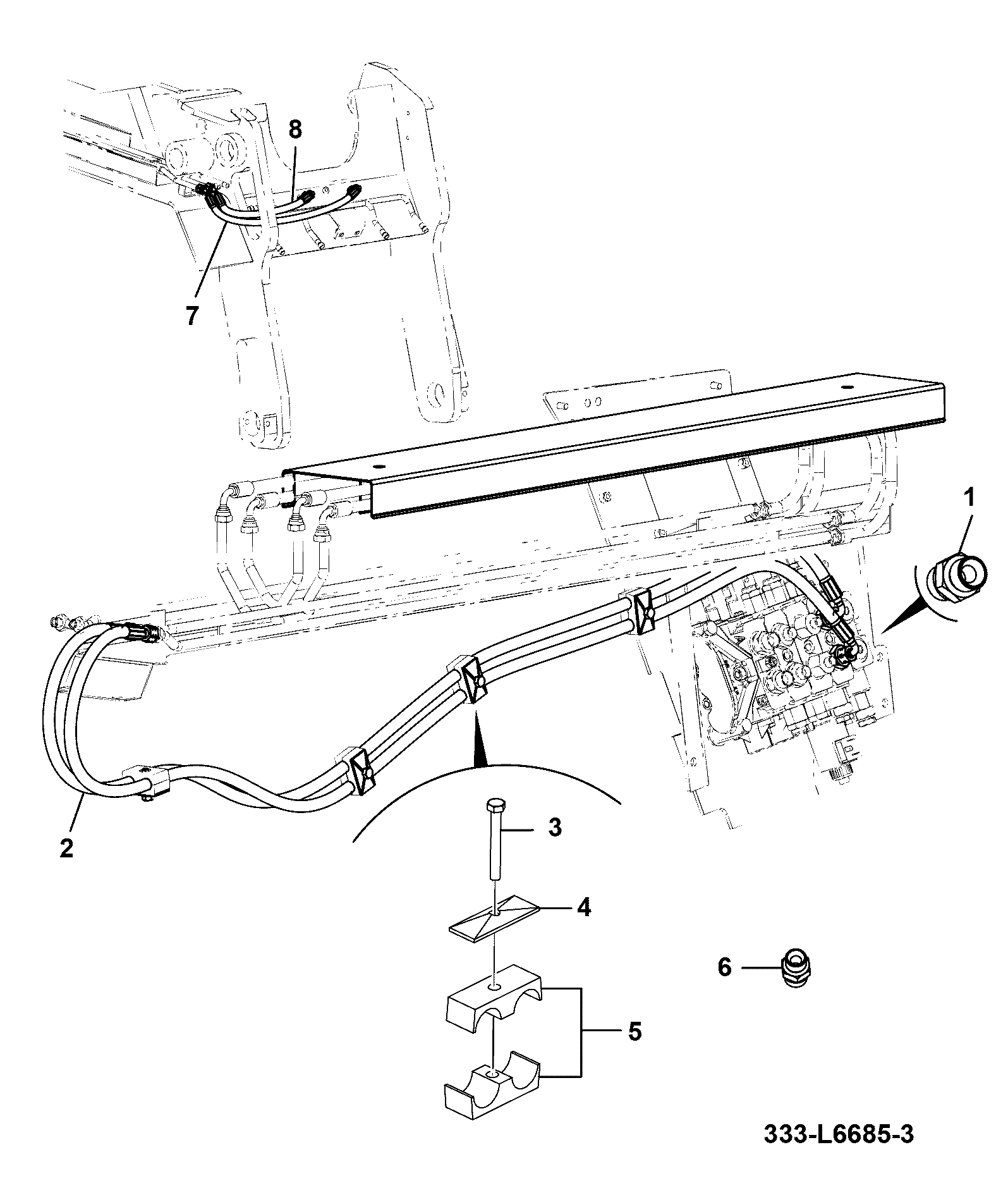

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | W.A. PIPE - 5M BOOM 335/13253 | 1 | $2,018.57 | |||
| 2 | TOP HOSE TRAY W.A.-5 METER 650/10294 | 1 | $469.09 | |||
| 3 | W.A. BOTTOM HOSE TRAY 335/09857 | 1 | $1,671.40 | |||
| 4 | HOSE 1/4 INCH STR-90 1640LG 611/80296 | 1 | $70.93 | |||
| 5 | HOSE 1/4 INCH STR-90 1500LG 611/80297 | 1 | $67.44 | |||
| 6 | HOSE 1/4" X 200MM 611/30500 | 1 | $77.74 | |||
| 7 | HOSE 1/4" X 225MM 611/30600 | 1 | $78.29 | |||
| 8 | HOSE 1/4BSP 575mm 611/05100 | 1 | $115.91 | |||
| 10 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 11 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 12 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 13 | SPRING-WASHER M10 1425/0008D | 1 | $0.44 | |||
| 14 | WA INNER BOOM FRONT PIPEWORK 333/P9839 | 1 | $330.96 | |||
| 15 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 16 | BUTTON HD.SCREW.M10X25 LG 826/01616 | 1 | $4.05 | |||
| 17 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 18 | HOSE 1/4 BSP HP 400C 31AP/CY040 | 1 | $50.51 | |||
| 19 | HOSE 1/4 BSP HP 400C 31AP/CC040 | 1 | $50.51 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-E120-20-1-397402 E120-20-1 HYDRAULIC CIRCUITS LOADER END AUX 1 ASSEMBLY,STANDARD
View Diagram -
DIAG-E120-65-5-397402 E120-65-5 HYDRAULIC CIRCUITS LOADER END AUXILIARY 2,ASSEMBLY
View Diagram -
DIAG-E120-65-15-397402 E120-65-15 HYDRAULIC CIRCUITS LOADER END AUXILIARY 2,ASSEMBLY
View Diagram
