Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | 2 SPOOL VALVE BLOCK 333/P9172 | 1 | $2,672.10 | |||
| 2 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 3 | WASHER 7/16 LARGE PLAIN 1412/0004Z | 1 | $1.52 | |||
| 4 | ADAPTOR G3/4A M/M 1604/0006 | 1 | $12.04 | |||
| 5 | WASHER BONDED 1" BSP 1406/0021 | 1 | $3.24 | |||
| 6 | ADAPTOR 1" SRAIGHT MALE KNJ0606 334/L6394 | 1 | $34.62 | |||
| 7 | WASHER BONDED 1"BSP 1406/0026 | 1 | $7.06 | |||
| 8 | HOSE-12 BSP HP 3400mm B 332/L7208 | 1 | $252.50 | |||
| 9 | HOSE - 3/4 2210 ST-ST 627/10405 | 1 | $263.94 | |||
| 10 | BLOCK 265/00938 | 1 | $42.24 | |||
| 11 | SET SCREW M8x60 1315/0314Z | 1 | $2.41 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 14 | CLAMP BODY (1 HALF = 1EA) 821/00442 | 1 | $25.26 | |||
| 15 | COVER PLATE 821/00443 | 1 | $8.29 | |||
| 16 | BOLT M8x75 1315/3317Z | 1 | $3.61 | |||
| 17 | HOSE-12 BSP IHP 1350mm B 335/B2385 | 1 | $128.13 | |||
| 19 | SET-SCREW M10 L-_50mm 1315/0412Z | 1 | $3.61 | |||
| 20 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 21 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 22 | HOSE-12 BSP HP 660mm B 332/L8109 | 1 | $88.14 | |||
| 23 | HOSE-12 BSP HP 1075mm A 336/F1096 | 1 | $171.13 | |||
| 24 | ADAPTOR G1/4A M/M 1604/0002 | 1 | $0.00 | |||
| 25 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.62 | |||
| 27 | RUBBER;GROMMET KMN0863 | 1 | $6.94 | |||
| 28 | GROMMET 828/00288 | 1 | $5.67 | |||
| 29 | TEE ADAPTOR M/F/M 816/90397 | 1 | $62.89 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

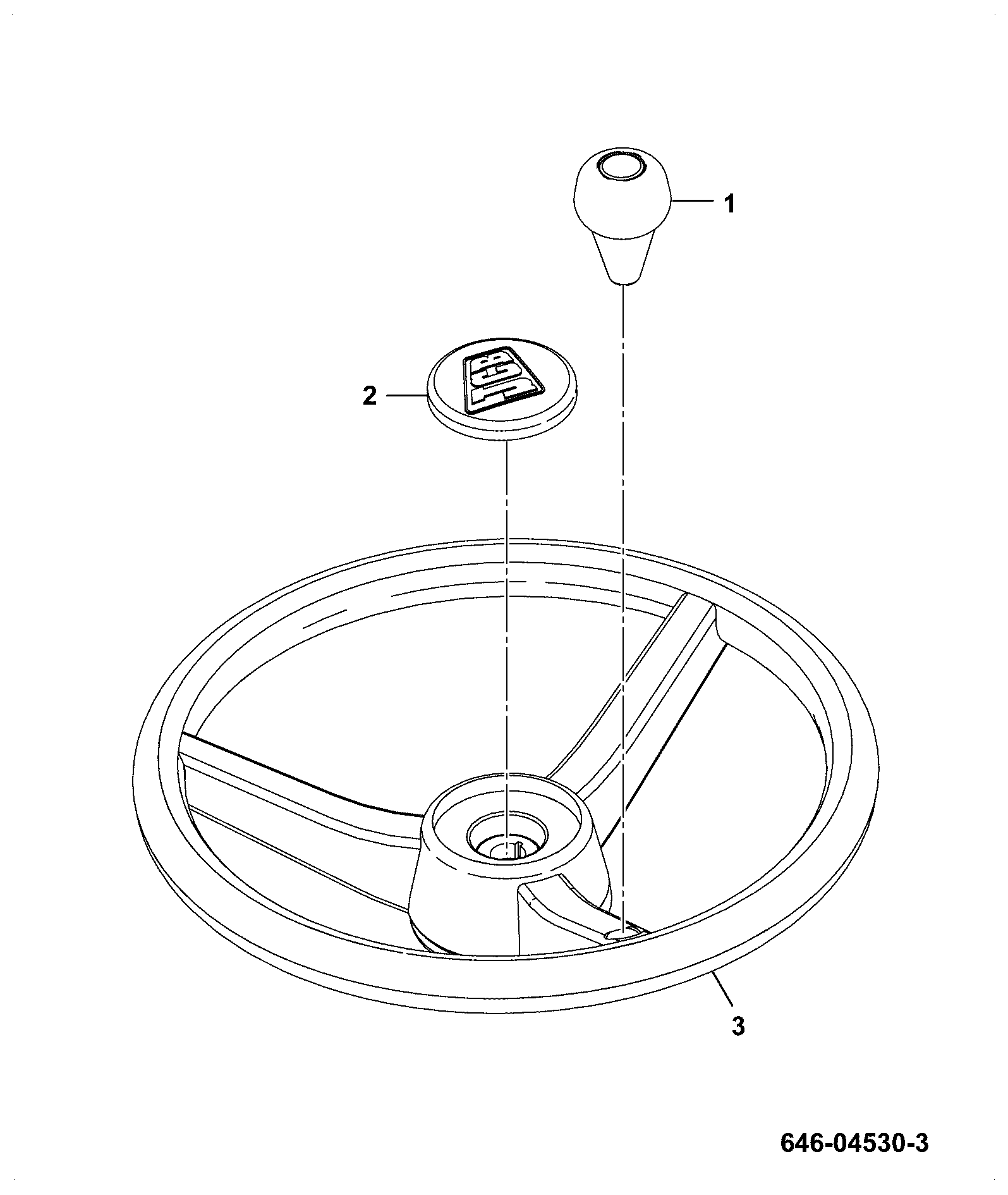

DIAG-D320-1-1-404759 D320-1-1 STEERING WHEEL ASSEMBLY
View Diagram -
DIAG-E130-1-1-404759 E130-1-1 HYDRAULIC CIRCUITS CHASSIS HOSES & FITTINGS SERVO CONTROL
View Diagram -
DIAG-D300-1-1-404759 D300-1-1 STEERING INSTALLATION ASSEMBLIES 430ZX
View Diagram
