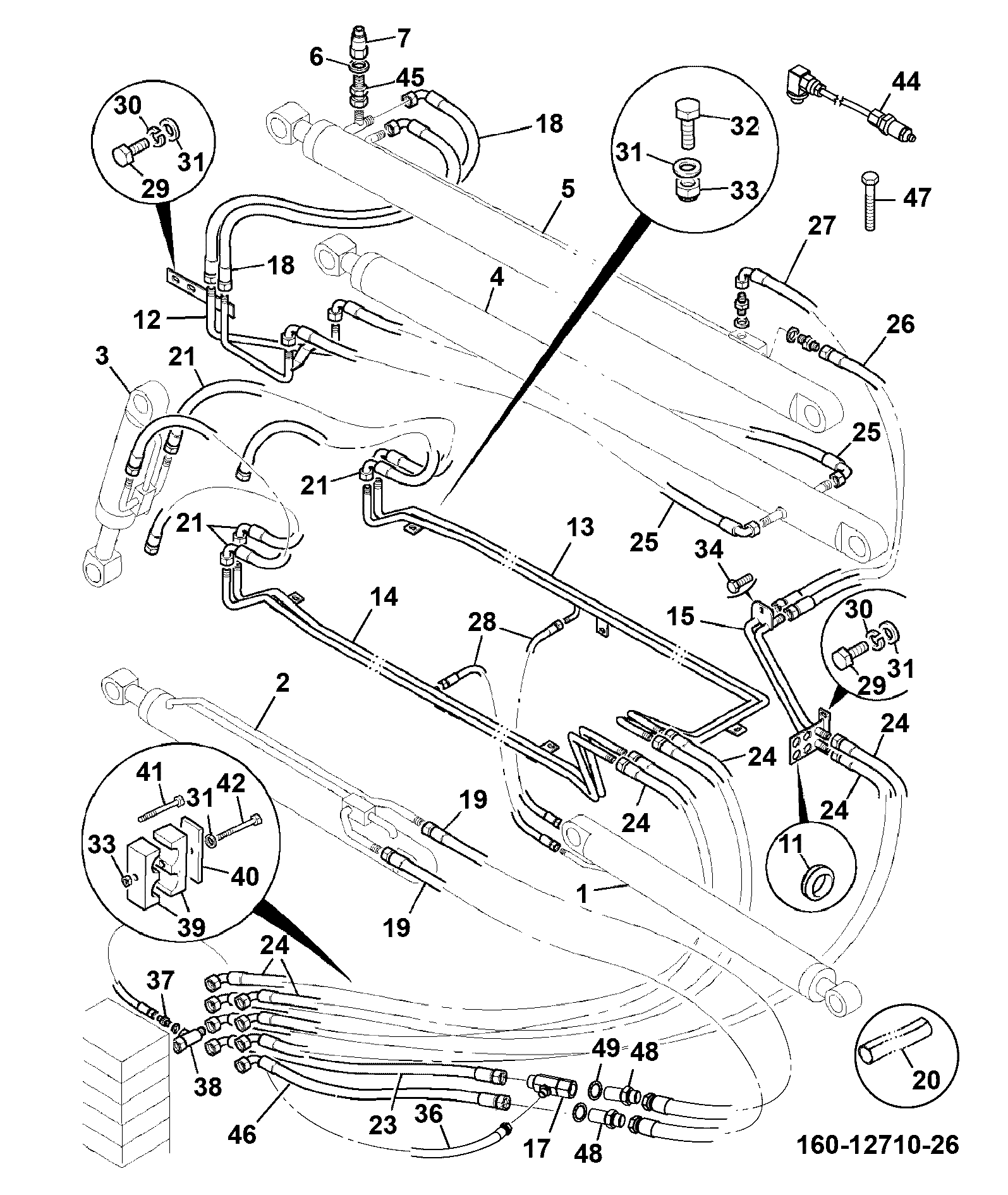

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | GA RAM P41 DISP REC 556/60437 | 1 | $2,915.23 | |||
| 2 | GA LIFT RAM 120x70 (P33-A 3 PORT) 563/60144 563/60160 | 1 | $6,586.37 | |||
| 3 | GA TILT RAM 130 X 75 (P33 REC) 565/60120 | 1 | $6,100.36 | |||
| 5 | GA OUT EXTN RAM 100X60 *SPACER* 559/60212 559/60311 | 1 | $5,994.77 | |||
| 6 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 7 | COUPLING QR MALE 3/8BSP 45/910700 | 1 | $60.31 | |||
| 11 | GROMMET 2410/0212 | 1 | $23.00 | |||
| 12 | WA PIPEWORK FRONT 335/01141 400/M7862 | 1 | $218.79 | |||
| 13 | WA BOOM PIPEWORK RH 335/01139 400/M7851 | 1 | $814.60 | |||
| 14 | WA PIPEWORK L/H 335/01140 400/M7860 | 1 | $761.29 | |||
| 15 | WA REAR PIPEWORK 335/03926 400/M7873 | 1 | $143.85 | |||
| 16 | WA LIFT RAM FEED PIPE 333/P9177 | 1 | $207.69 | |||
| 17 | WA LEFT LIFT FEED PIPE 333/P9176 | 1 | $287.21 | |||
| 18 | HOSE 1/2BSP 400mm 613/30700 | 1 | $96.07 | |||
| 19 | HOSE 1/2BSP 1255mm 613/06100 | 1 | $159.84 | |||
| 20 | TUBE-2.4 METRES 647/02721 647/02703 | 1 | $5.44 | |||
| 21 | HOSE 1/2" BSP 7660 629/80012 | 1 | $284.06 | |||
| 23 | HOSE 1/2" BSP 470mm 613/22300 | 1 | $97.73 | |||
| 24 | HOSE 613/24300 | 1 | $218.85 | |||
| 25 | HOSE - 08 BSP HP 3720mm B 333/C7472 | 1 | $309.43 | |||
| 26 | HOSE 41 1/2 STR/STR 613/03600 | 1 | $40.35 | |||
| 27 | HOSE 1/2BSP 1130mm 613/20700 | 1 | $142.16 | |||
| 28 | HOSE 1/4BSP 310mm 611/21100 | 1 | $182.90 | |||
| 29 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $0.56 | |||
| 30 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 31 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 32 | BOLT M8x40 1315/3310Z | 1 | $3.09 | |||
| 33 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $6.63 | |||
| 34 | BOLT M8x30 1315/3308Z | 1 | $0.50 | |||
| 36 | HOSE 04 BSP HP 960mm B 611/28900 334/F9840 | 1 | $79.71 | |||
| 37 | ADAPTOR. G1/4A - 7/16 SAE 816/90167 | 1 | $126.95 | |||
| 38 | ADAPTER, TEE 816/90404 | 1 | $73.80 | |||
| 39 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $4.84 | |||
| 40 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 41 | BOLT M8x45 1315/3311Z | 1 | $0.70 | |||
| 42 | BOLT M8x80(KANBAN) 1315/3318Z | 1 | $2.44 | |||
| 45 | ADAPTOR 3/8"M-1/4"F 816/20044 | 1 | $14.18 | |||
| 46 | HOSE 1/2BSP 580mm 613/29600 | 1 | $107.10 | |||
| 47 | (W) BOLT M8X90 1315/3319Z | 1 | $2.78 | |||
Showing 1 to 39 of 39 parts
Related Assemblies
-

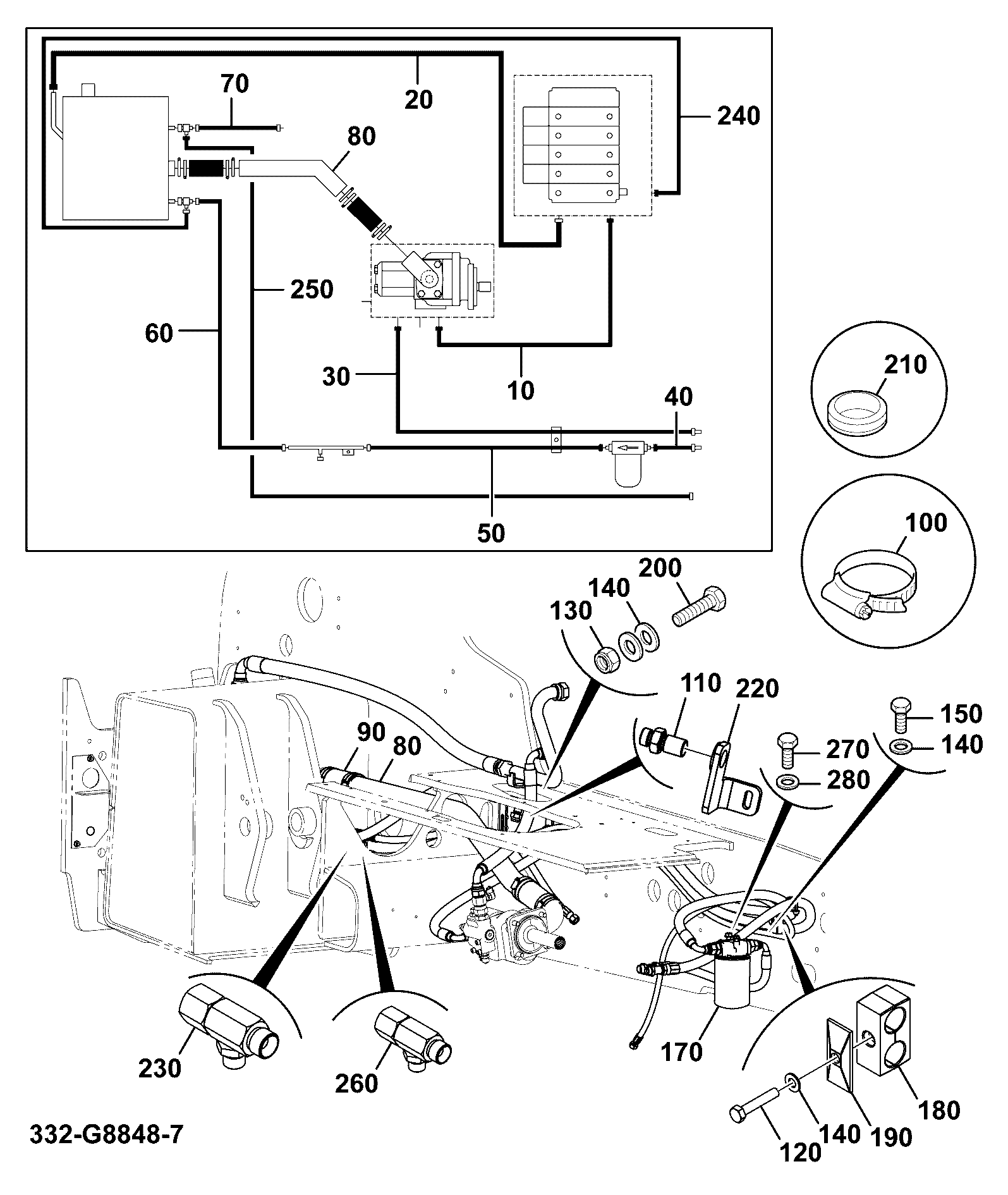

DIAG-E100-105-1-401793 E100-105-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES NEUTRAL CIRCUIT, SWAY
View Diagram -

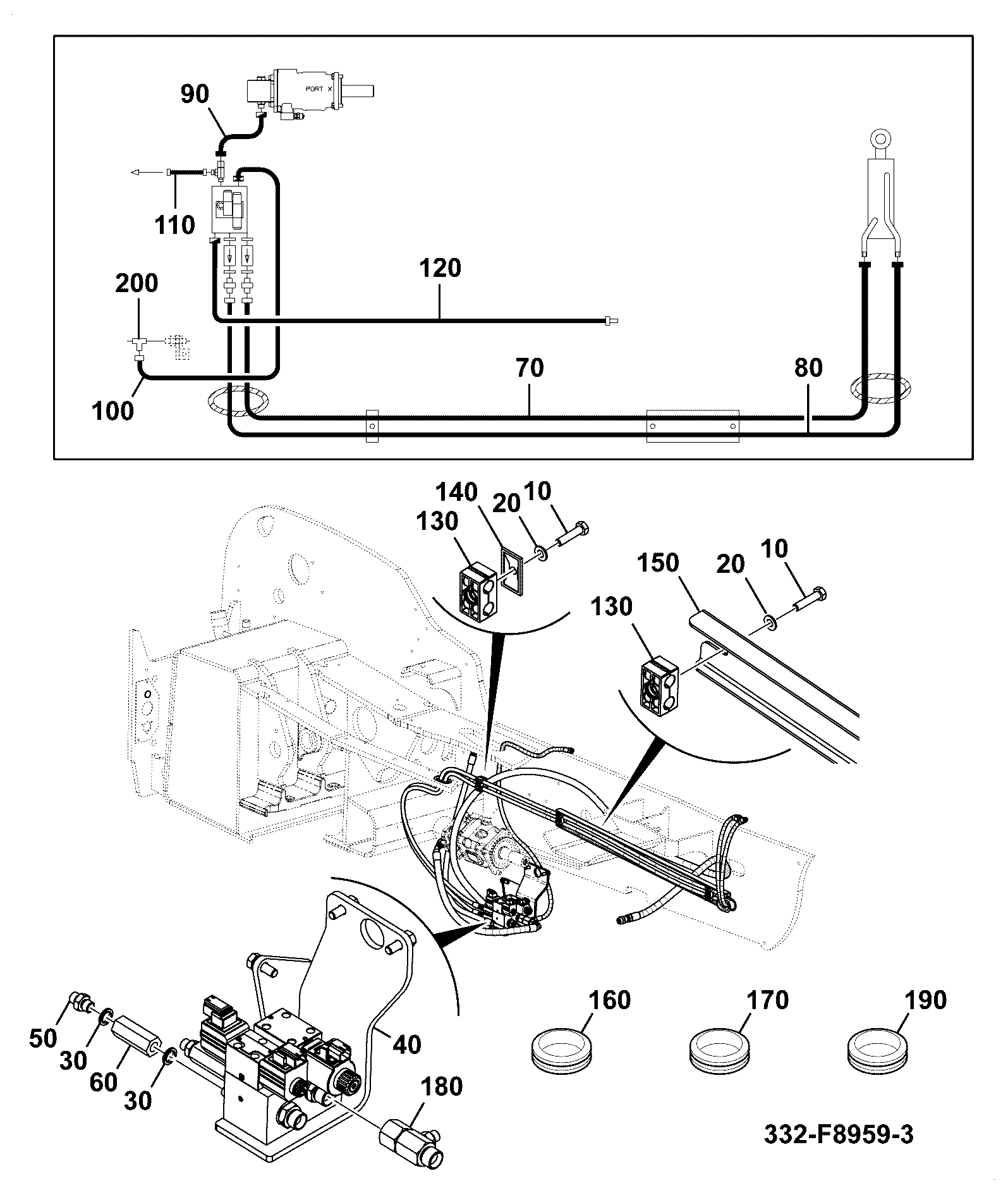

DIAG-E120-1-5-401793 E120-1-5 HYDRAULIC CIRCUITS LOADER END LIFT END
View Diagram -
DIAG-E100-80-1-401793 E100-80-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES NEUTRAL CIRCUIT, FIXED
View Diagram
