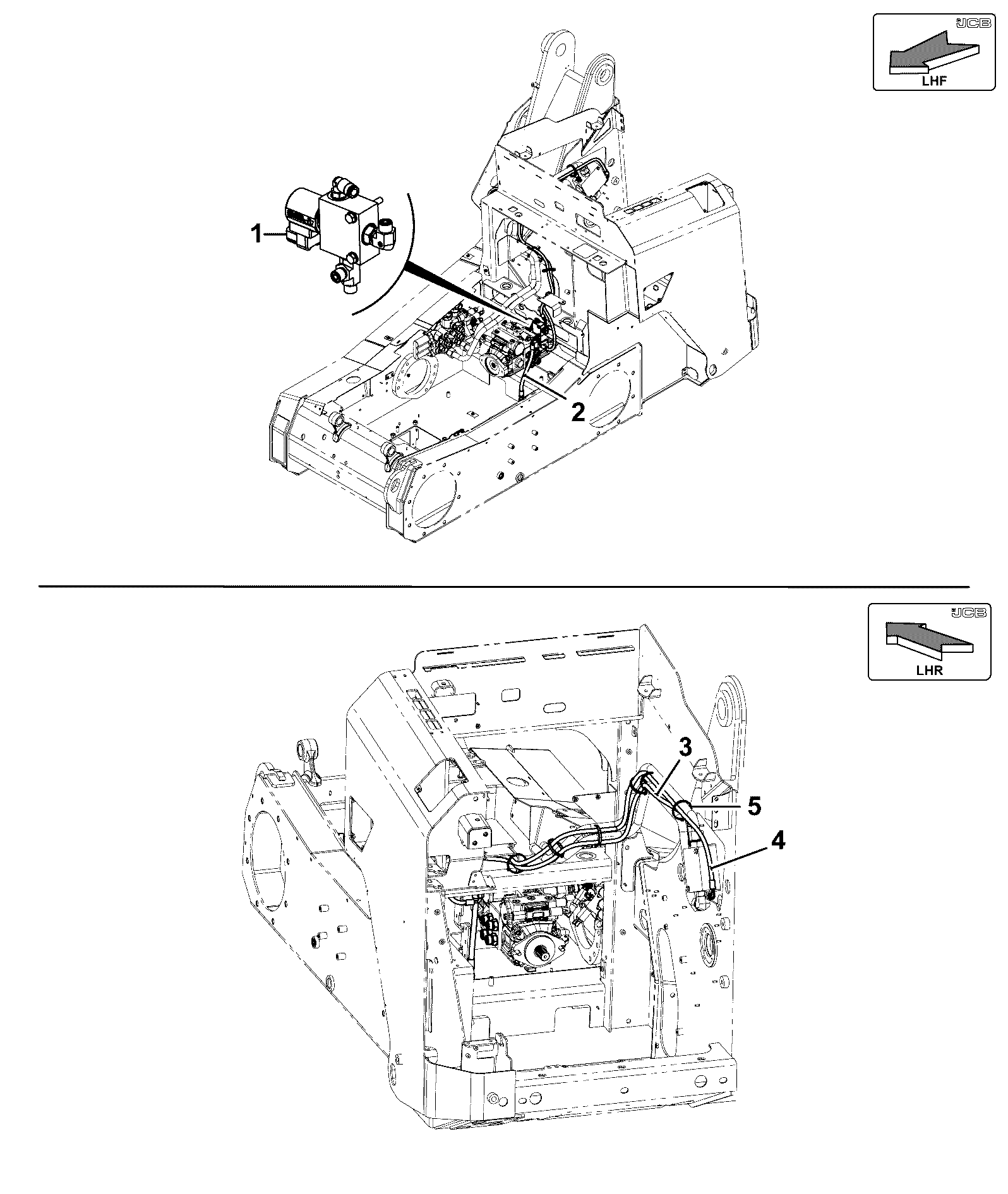

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | TUBE ASSY - 3B AUX TB 333/X6102 | 1 | $259.19 | |||
| 2 | TUBE ASSY - 3A AUX TB 333/X6101 | 1 | $256.97 | |||
| 3 | TUBE ASSY - AUX 3B LOADER ARM HB 401/M9136 | 1 | $418.73 | |||
| 4 | TUBE ASSY - AUX 3A LOADER SUB ASSMBLY 401/M9113 | 1 | $314.08 | |||
| 5 | E ASSY - AUX LOADER ARM CD HB 333/X8763 | 1 | $133.00 | |||
| 6 | HOSE -12 PTC HP 1150MM B 401/M7995 | 1 | $231.44 | |||
| 8 | HOSE -12 PTC HP 1100MM A 401/M8007 | 1 | $163.85 | |||
| 9 | HOSE -08 ORFS HP 1300MM C 333/X8824 | 1 | $225.68 | |||
| 10 | HOSE -08 ORFS LP 1320MM B 333/X7906 | 1 | $103.21 | |||
| 11 | HOSE -08 ORFS HP 1120MM B 333/X7839 | 1 | $127.17 | |||
| 13 | ORFS BLKHD 45 DEG -08 1708/0808 | 1 | $21.10 | |||
| 15 | WA CLAMP PLATE (PLATED) 333/X8285 | 1 | $60.94 | |||
| 17 | BOLT M_8 L-_30mm G-_8.8 1315/3308D | 1 | $1.39 | |||
| 18 | HOSE -06 ORFS HP 505MM A (SUB ASSMBLY) 333/X9305 | 1 | $114.86 | |||
| 19 | PIPE CLAMP - SINGLE -8 333/X3494 | 1 | $3.20 | |||
| 20 | PIPE CLAMP SINGLE -16 332/X3517 | 1 | $3.46 | |||
| 21 | STAUFF CLAMP TOP PLATE 332/G1765 | 1 | $1.43 | |||
| 22 | SET SCREW M6 x 40 G8.8 1315/0210D | 1 | $0.81 | |||
| 23 | ADAPTOR ORFS M -08/M -08 BULKHEAD ST 1705/0808 | 1 | $9.99 | |||
| 24 | HOSE -06 ORFS HP 520MM A 333/X9298 | 1 | $122.67 | |||
| 26 | BOLT M_8 L-_20mm FLANGED 1317/3305D | 1 | $1.26 | |||
| 27 | P-CLIP 18mm 332/X8091 | 1 | $2.78 | |||
| 28 | CLAMP-TWIN COVER PLATE 332/X1906 | 1 | $1.08 | |||
| 29 | PIPE CLAMP TWIN -16 332/X1895 | 1 | $15.27 | |||
| 30 | ADAPTOR ORFS M -16/SAE ORB -12 1751/1216 | 1 | $17.94 | |||
| 31 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 32 | BOLT M8 x 65 G8.8 (P564) 1315/3315D | 1 | $14.33 | |||
| 33 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 34 | ADA ORFS M-08/M-08 BULKHEAD 90 1707/0808 | 1 | $9.52 | |||
| 35 | HOSE CLAMP - DIN 428/28 PAH 333/X8330 | 1 | $11.98 | |||
| 36 | CLAMP COVER PLATE - DIN GD 4D W3 333/X8337 | 1 | $33.79 | |||
| 37 | BOLT M_8 L-_60mm FLANGED HEX GRADE 8.8 1317/3314D | 1 | $2.12 | |||
| 38 | CONNECTOR-7P 333/X2588 | 1 | $17.06 | |||
| 39 | TANK CONNECTOR O-RING - 37P 333/X2589 | 1 | $39.99 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-
DIAG-E110-10-1-395466 E110-10-1 HYDRAULIC CIRCUITS ATTACHMENTS PILOT CIRCUIT-CHANGE O
View Diagram -
DIAG-E110-20-1-395466 E110-20-1 HYDRAULIC CIRCUITS ATTACHMENTS GA PILOT VALVE
View Diagram -
DIAG-E110-20-3-395466 E110-20-3 HYDRAULIC CIRCUITS ATTACHMENTS PILOT VALVE
View Diagram
