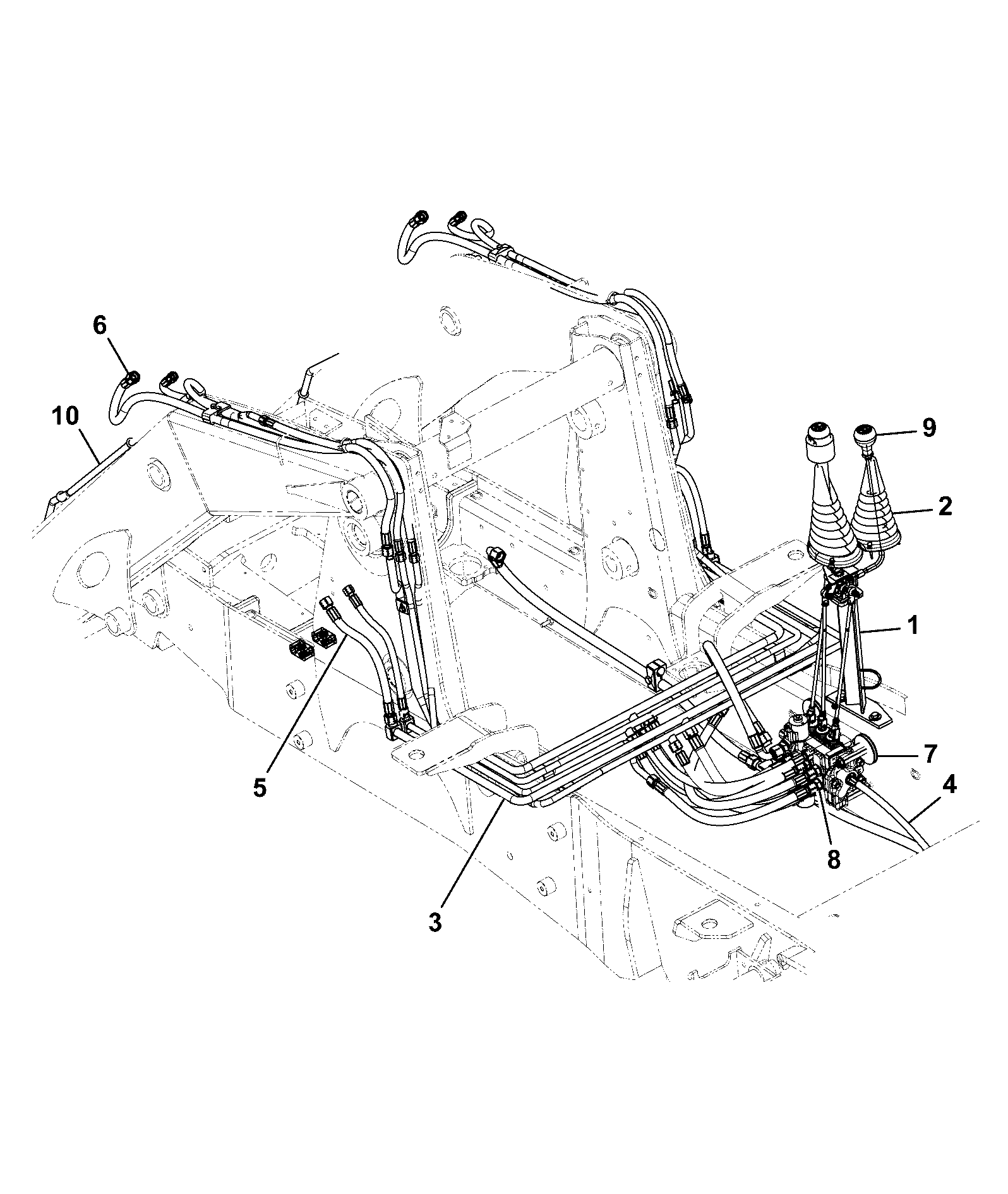

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIPE (kitting) 123/08063 333/F5150 | 1 | $166.87 | |||
| 2 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 3 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 4 | HOSE -12 BSP HP 940mm B 334/Y9575 | 1 | $117.38 | |||
| 5 | MOUNT HOSE JUNCTION 334/Y9544 | 1 | $18.73 | |||
| 6 | BACK NUT 3/4"BSP 1356/0206Z | 1 | $7.18 | |||
| 7 | HOSE -12 BSP LP 3900mm C 334/Y9569 | 1 | $207.26 | |||
| 8 | ADAP ELBOW 3/4 816/90163 | 1 | $18.47 | |||
| 9 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
| 10 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 11 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
Showing 1 to 11 of 11 parts
Related Assemblies
-
DIAG-E110-5-1-394869 E110-5-1 HYDRAULIC CIRCUITS ATTACHMENTS HAMMER RETURN
View Diagram -
DIAG-E100-10-1-394869 E100-10-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES CONTROL 3 SPOOL LOADER ARM, SRS, RBC, 3DX XTRA
View Diagram -
DIAG-E110-10-1-394869 E110-10-1 HYDRAULIC CIRCUITS ATTACHMENTS SHOVEL RAM
View Diagram
