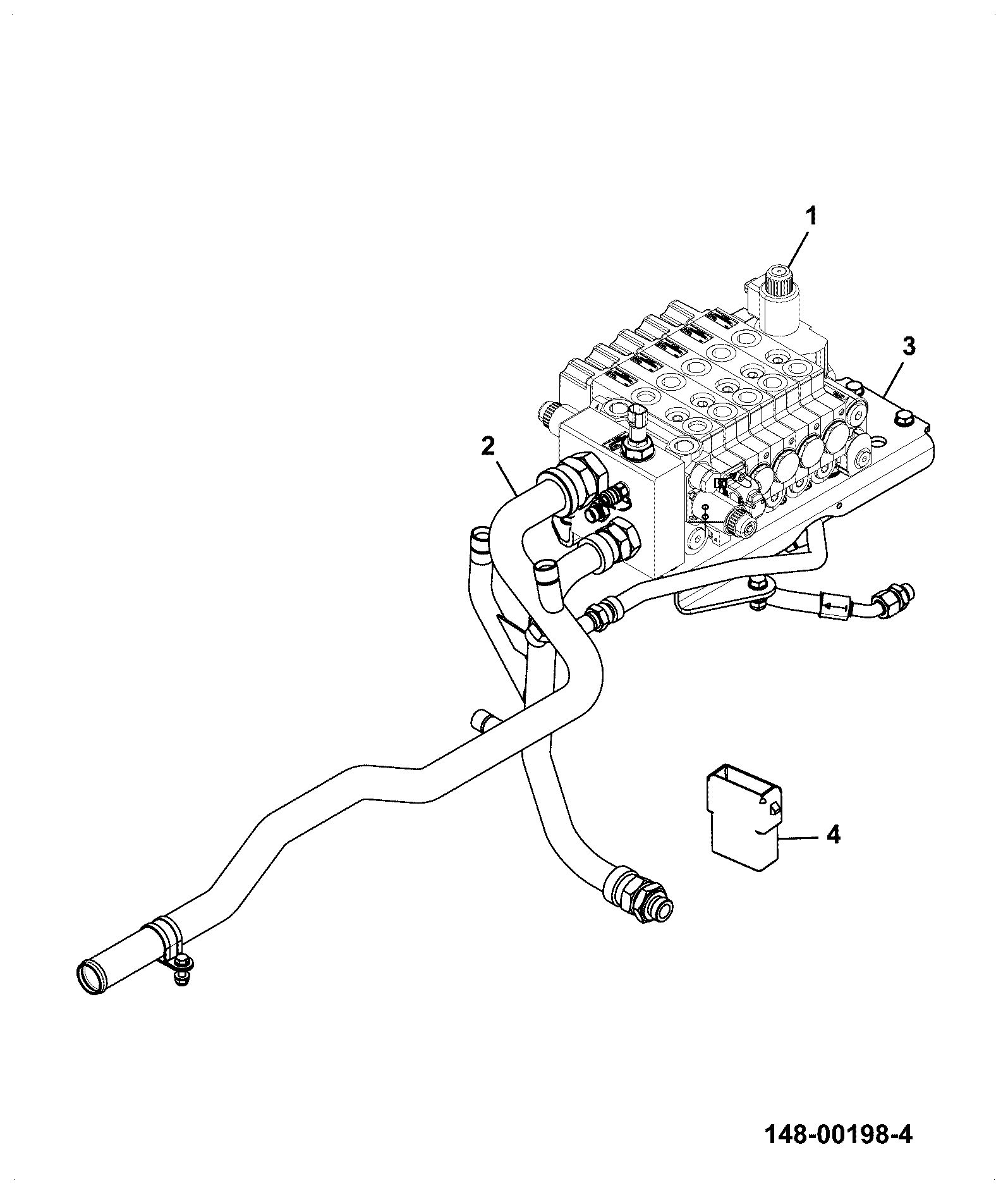

E110-1-1 REAR HITCH HYDRAULIC NO HITCH Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	MALE HEX PLUG 22MM 334/T7690	1	AVAILABLE TO ORDER	$4.26	Quantity
2	(W) (P) GROMMET 2410/1312	1	AVAILABLE TO ORDER	$10.61	Quantity
3	PLUG 3/4 "O RING BOSS 1745/0003	1	AVAILABLE TO ORDER	$2.56	Quantity

Showing 1 to 3 of 3 parts

DIAG-E101-1-1-393696 E101-1-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES SALES SPECIALS QUICK HITCH COUPLING, 3 FRONT AND 3 REAR
View Diagram
DIAG-E190-50-1-393696 E190-50-1 OTHER HYDRAULIC CIRCUITS AUXILIARY AUX COMMON HYDRAULICS
View Diagram
DIAG-E300-10-1-393696 E300-10-1 VALVE INSTALLATION ASSEMBLIES 6-SPOOL 100L FLOW
View Diagram
