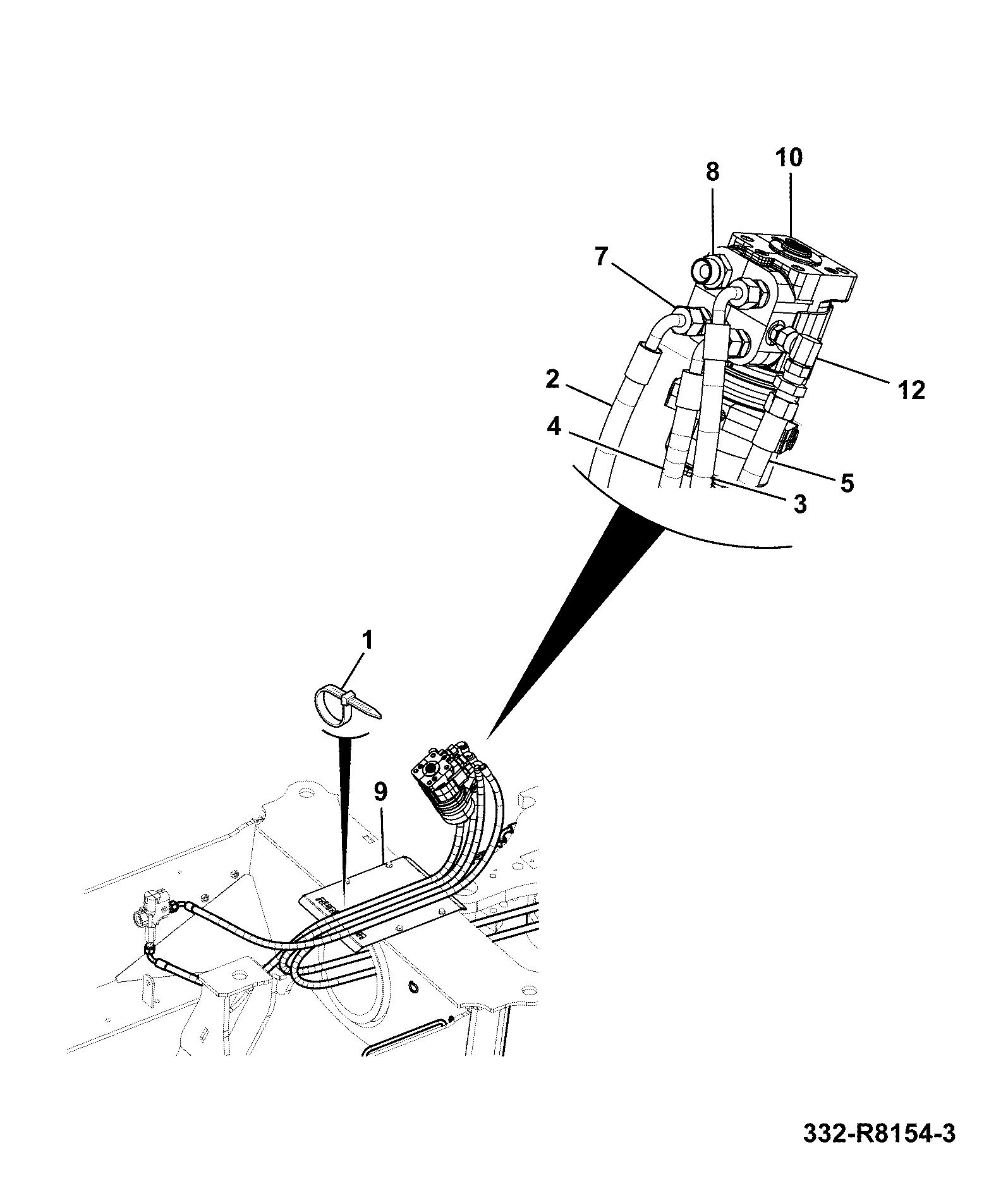

E100-80-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES 4 SPOOL SERVO ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
4	SERVO CONTROL DECAL, 4 SP S5 401/D1237	1	AVAILABLE TO ORDER	$12.17	Quantity
5	(P) GROMMET 2410/1001	1	AVAILABLE TO ORDER	$0.68	Quantity
6	ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055	1	2 IN STOCK	$4.51	Quantity
7	HOSE 1/2" BSP 615mm LONG 613/43200	1	AVAILABLE TO ORDER	$238.72	Quantity

Showing 1 to 4 of 4 parts

DIAG-E100-65-1-404387 E100-65-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES 4 SPOOL HIGH SPEED SERVO ASSEMBLY
View Diagram
DIAG-E100-90-1-404387 E100-90-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES STEERING HYDRAULICS ASSEMBLY
View Diagram
DIAG-E100-60-1-404387 E100-60-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES 4 SPOOL HIGH SPEED SERVO ASSEMBLY
View Diagram
