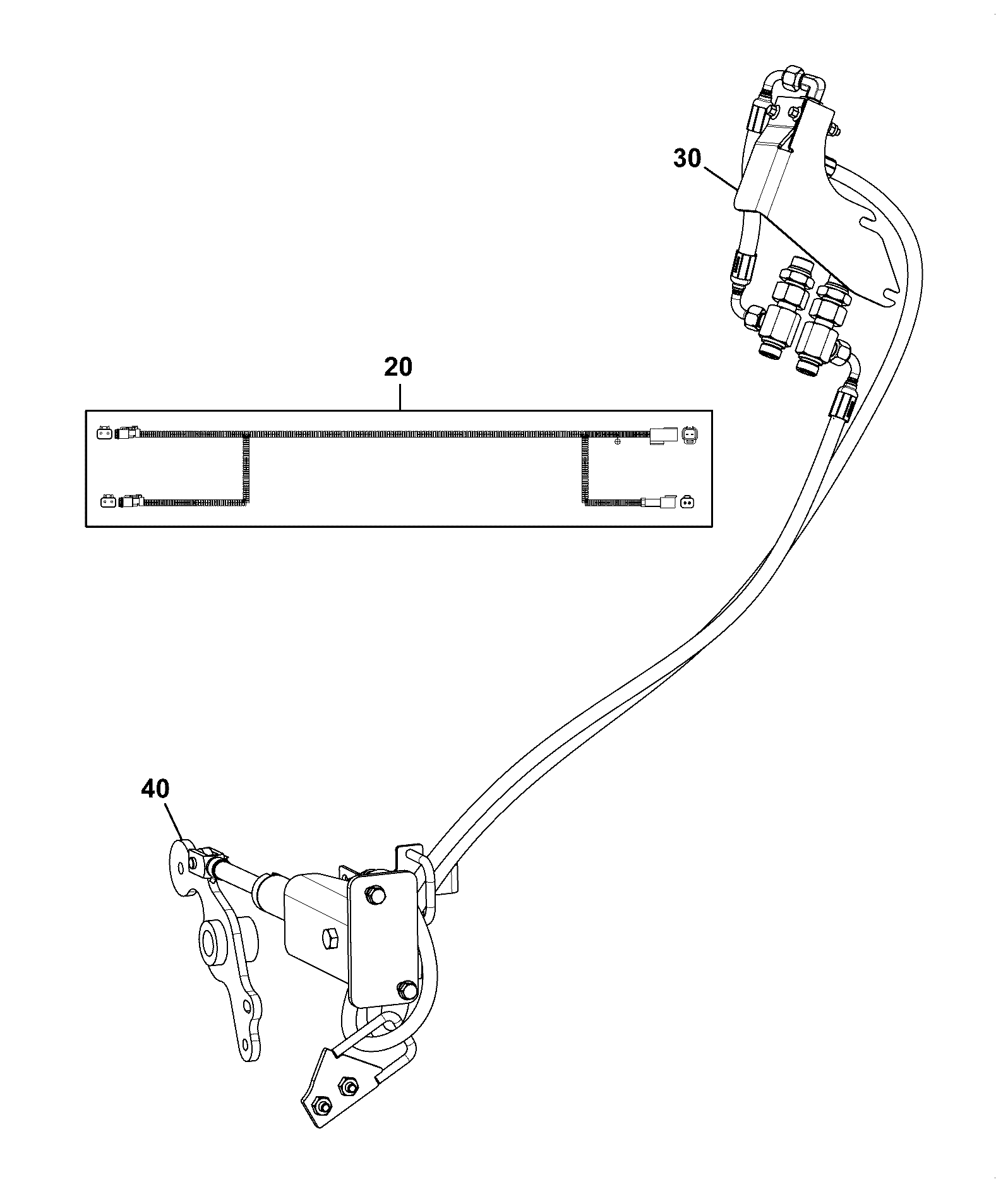

E100-65-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HYDRAULIC PIN LOCK SINGLE PIN DOUBLE ACTING , HIGH FLOW Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
20	536-60 BOOM AUX HARNESS 721/G8199	1	AVAILABLE TO ORDER	$128.36	Quantity
20	P69 TWIN AUX & PIN LOCK L 721/B4948	1	AVAILABLE TO ORDER	$144.51	Quantity

Showing 1 to 2 of 2 parts

DIAG-E100-65-5-402224 E100-65-5 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HYDRAULIC PIN LOCK SINGLE PIN DOUBLE ACTING , HIGH FLOW
View Diagram
DIAG-E100-75-1-402224 E100-75-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HYDRAULIC PIN LOCK DOUBLE PIN DOUBLE ACTING
View Diagram
DIAG-E100-75-5-402224 E100-75-5 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HYDRAULIC PIN LOCK DOUBLE PIN DOUBLE ACTING
View Diagram
