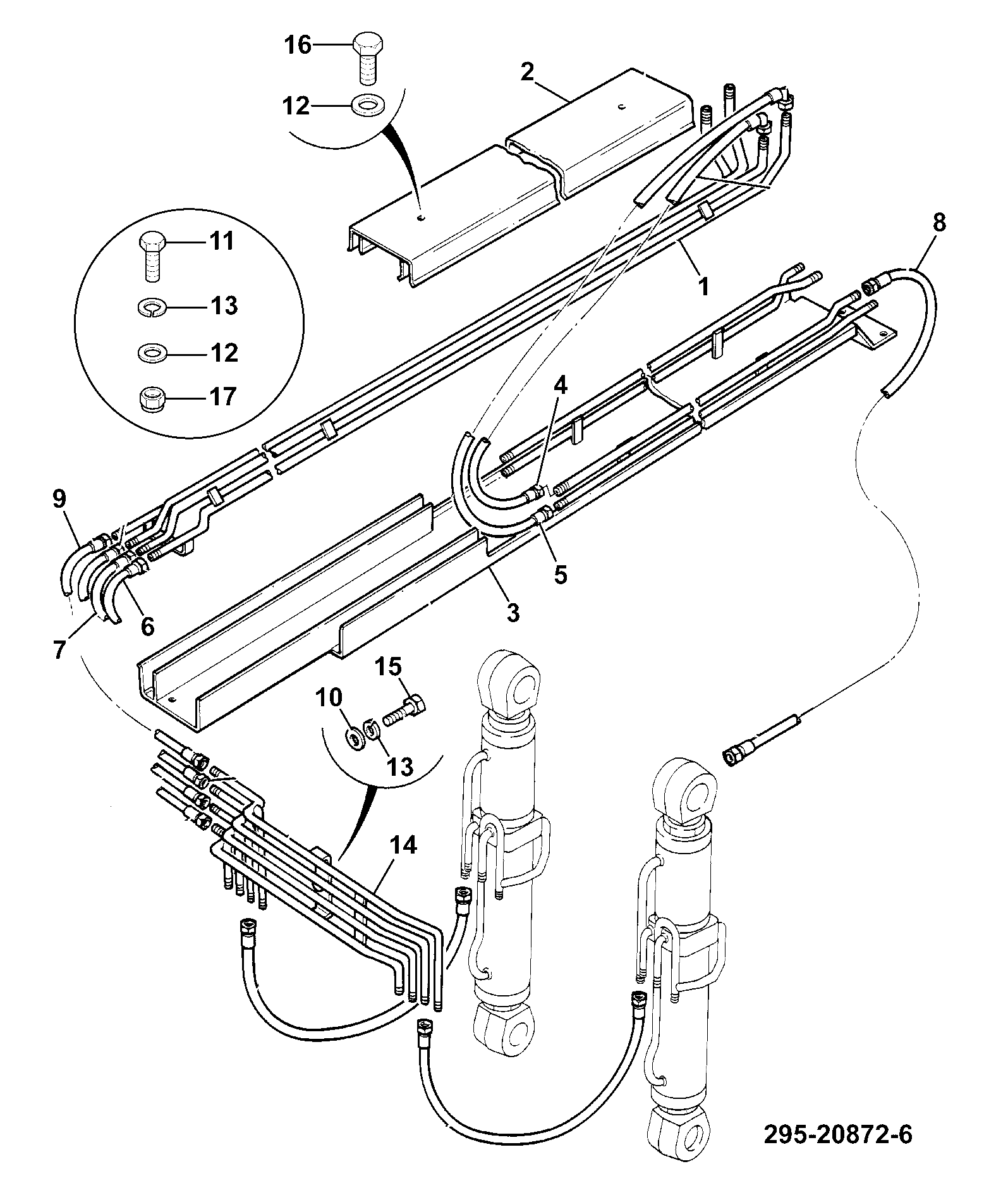

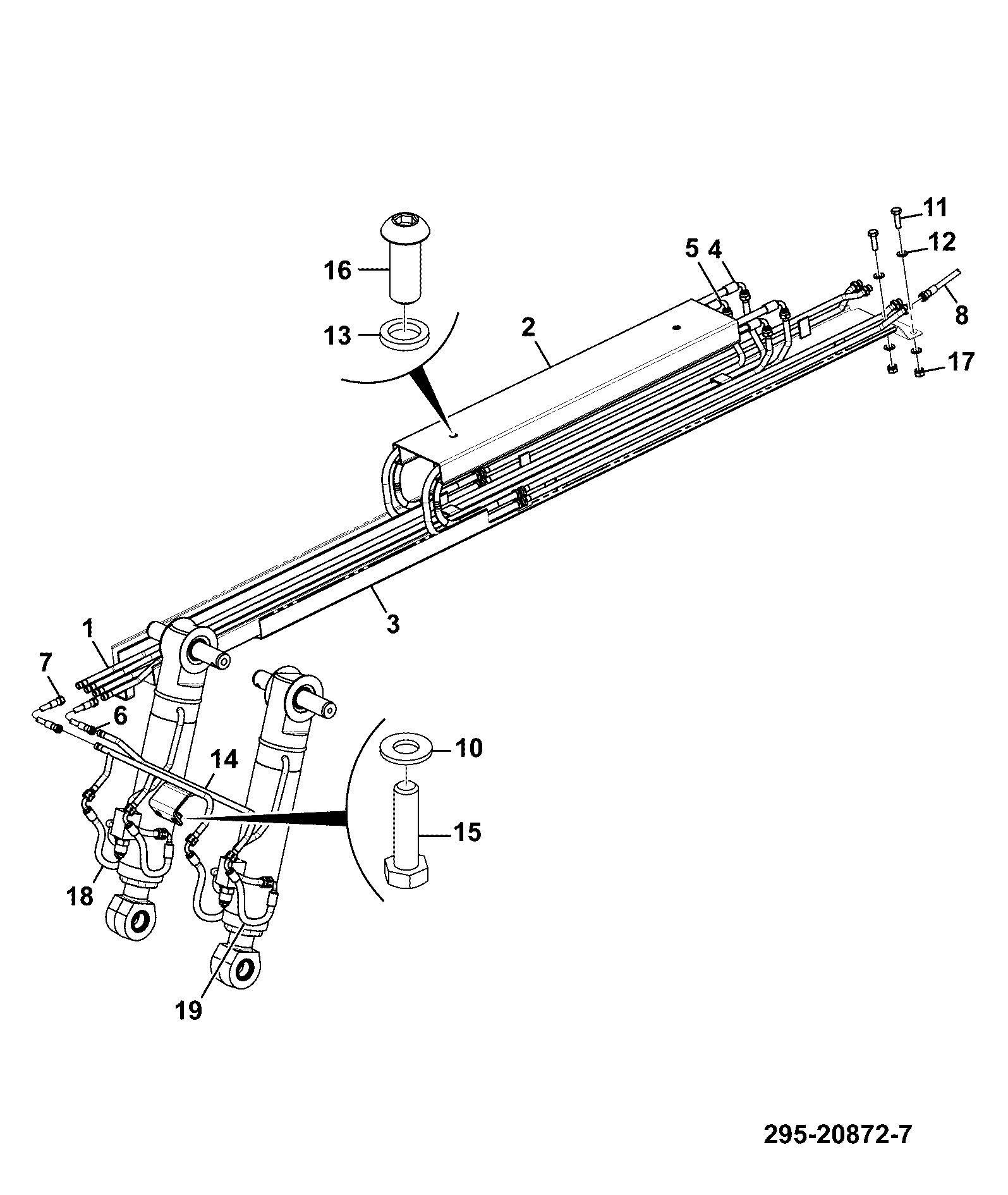

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| PVC HOSE ROLL (100FT) 647/02600 | 1 | $9.55 | ||||
| 1 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 1A | O-RING 2401/0506 | 1 | $1.46 | |||
| 2 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 2A | O-RING 2401/0503 | 1 | $0.54 | |||
| 3 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.62 | |||
| 4 | ADAPTOR 1/4 BSP BULKHEAD 816/90005 | 1 | $4.45 | |||
| 5 | BACK NUT 1/4" BSP 1356/0002Z | 1 | $20.56 | |||
| 6 | VALVE STEERING 35/412500 | 1 | $2,248.29 | |||
| 7 | Clamp hose 295/00170 | 1 | $73.98 | |||
| 8 | ADAPTOR G1/4A-3/4UNF(M) (R) 1620/2063 | 1 | $4.62 | |||
| 9 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 10 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.01 | |||
| 11 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 13 | Hose 1/4 HP 611/80030 | 1 | $111.52 | |||
| 13 | Hose 1/4" HP 611/80031 | 1 | $71.61 | |||
| 14 | 3/8" BSP HOSE x 1375 LG 612/80305 | 1 | $247.53 | |||
| 15 | HOSE 1/4BSP 940mm 611/21400 | 1 | $91.80 | |||
| 16 | HOSE 1/4BSP 2070mm 611/80123 | 1 | $59.65 | |||
| 17 | HOSE -06 BSP HP 870 mm B 612/80132 | 1 | $55.57 | |||
| 18 | ADAPTOR G1/4A M/M 1604/0002 | 1 | $0.00 | |||
| 19 | TWO HOSE CLAMP T4F (PAIR) 821/00234 | 1 | $13.26 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-E120-5-1-397330 E120-5-1 HYDRAULIC CIRCUITS LOADER END HYDRAULIC BOOM 3.5T
View Diagram -
E4-4-10 RAM TILT
View Diagram -
DIAG-E120-5-5-397330 E120-5-5 HYDRAULIC CIRCUITS LOADER END HYDRAULIC BOOM 3.5T
View Diagram
