Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 5 | T ADAPTOR WA 426/36 335/11104 | 1 | $66.66 | |||
| 6 | SETSCREW M8x35 1315/0309D | 1 | $2.40 | |||
| 7 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 8 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 9 | PCLIP M10 22MM 333/S3315 | 1 | $2.47 | |||
| 12 | CHECK VALVE (6027753-001) 333/S8408 | 1 | $167.35 | |||
| 13 | ADAPTOR 1/16SAE x G1/2 816/90356 | 1 | $59.43 | |||
| 15 | HOSE.1/2BSP 1470 lg. 613/34300 | 1 | $152.83 | |||
| 16 | HOSE 1/2BSP 1430mm 613/02300 | 1 | $101.23 | |||
| 17 | ABI HOSE 1/2 BSP 1030MM 400/A0076 | 1 | $70.41 | |||
| 18 | ABI HOSE 1/2 BSP 1060MM 400/A0077 | 1 | $85.69 | |||
| 19 | HOSE 1/2BSP 650mm 613/24900 | 1 | $125.88 | |||
| 20 | HOSE 1/4" BSP 1810mm 611/30400 | 1 | $78.62 | |||
| 21 | (W) (P) HOSE 1/4BSP 1200mm 611/01100 | 1 | $90.15 | |||
| 22 | ADAPTOR G1/4A M/M 1604/0002 | 1 | $29.81 | |||
| 23 | HOSE 611/28700 | 1 | $44.19 | |||
| 24 | 90 DEG ELBOW M/F 816/40016 816/90078 | 1 | $22.91 | |||
| 25 | WASHER 3/8IN LARGE 1412/0003D | 1 | $0.57 | |||
| 26 | TWO-PIECE MOUNT 331/66016 | 1 | $130.60 | |||
| 27 | ORBITROL VALVE - SEAL UOI 10off 334/P3688 | 1 | $1.29 | |||
| 28 | BLANKING PLUG/GROMMET 828/10286 | 1 | $0.65 | |||
| 29 | CIRCLIP - OPTIMAS PART! Line side 821/00190 | 1 | $0.54 | |||
| 30 | COLUMN RETAINER PLATE 333/V1346 | 1 | $21.40 | |||
| 31 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 32 | ADAPTOR G1/2A-1-1/16UNF (M/M) 1620/2068 | 1 | $8.12 | |||
| 33 | EXTENDED FLEX COUPLING TLTe (P524) 331/65164 | 1 | $112.10 | |||
| 34 | BOLT FLANGED HEX M8 x 35 (P369) 1317/3309B | 1 | $6.18 | |||
| 35 | FLANGE LOCK NUT M8 1370/0209B | 1 | $1.97 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-
DIAG-E100-10-5-404885-15808266 E100-10-5 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES STEER ASSEMBLY, HYDRAULICS- 427/437T4F W TY
View Diagram -

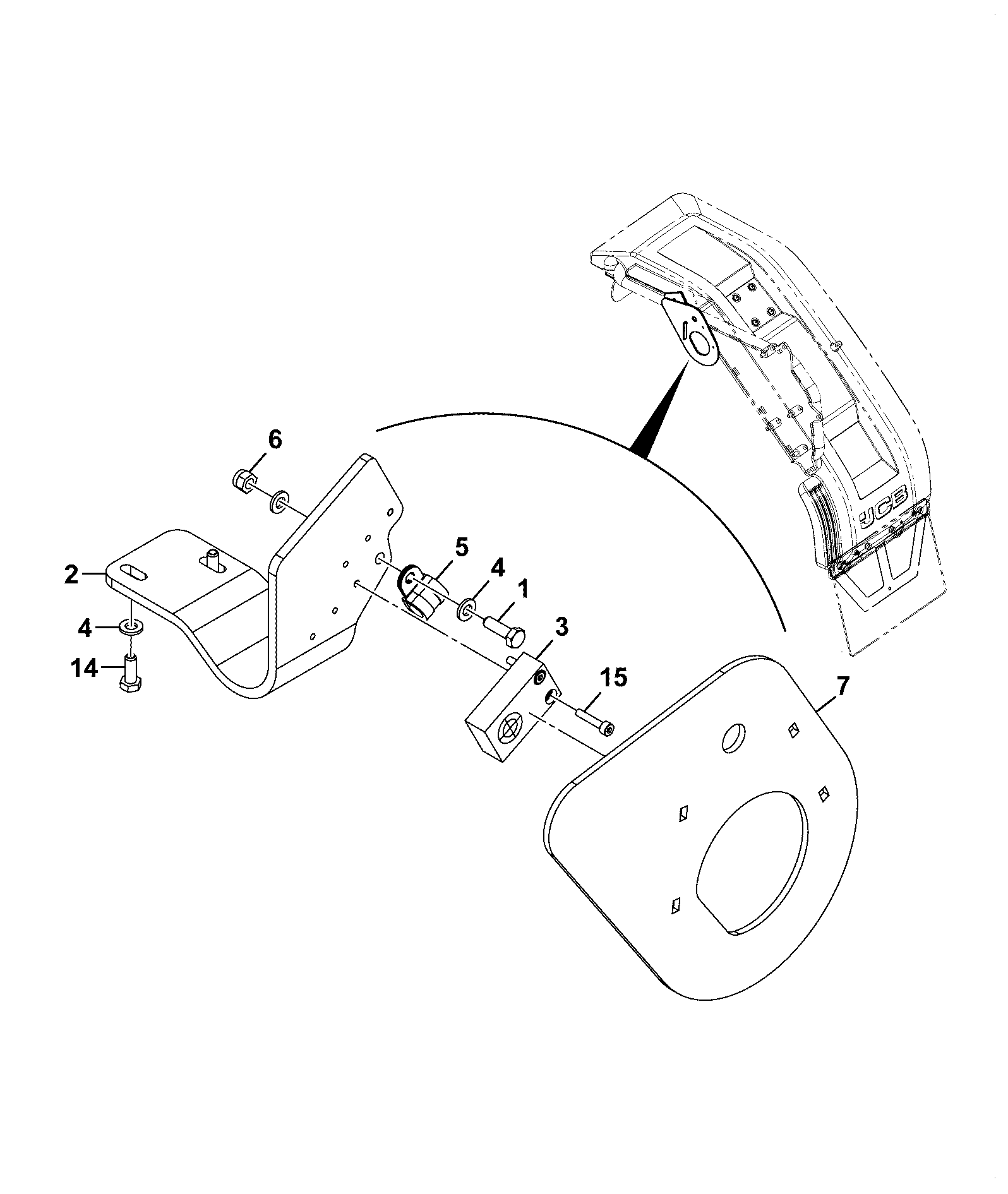

DIAG-D190-20-1-404885 D190-20-1 OTHER MECHANICAL CONTROLS LIFT RESET, HT BUILDS, LUC
View Diagram -

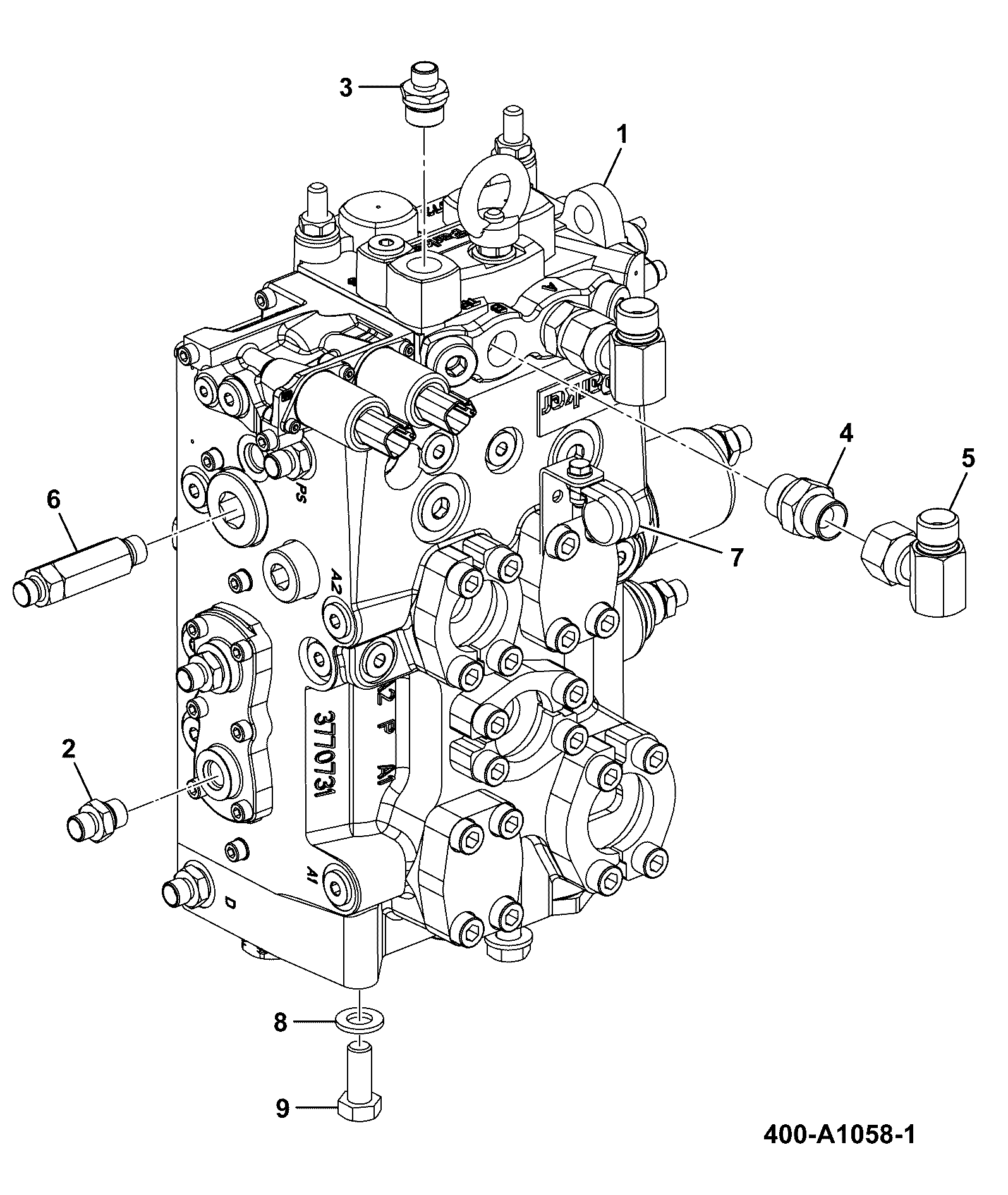

DIAG-E310-20-5-404885 E310-20-5 VALVES LOADER 3 SPOOL PC
View Diagram
