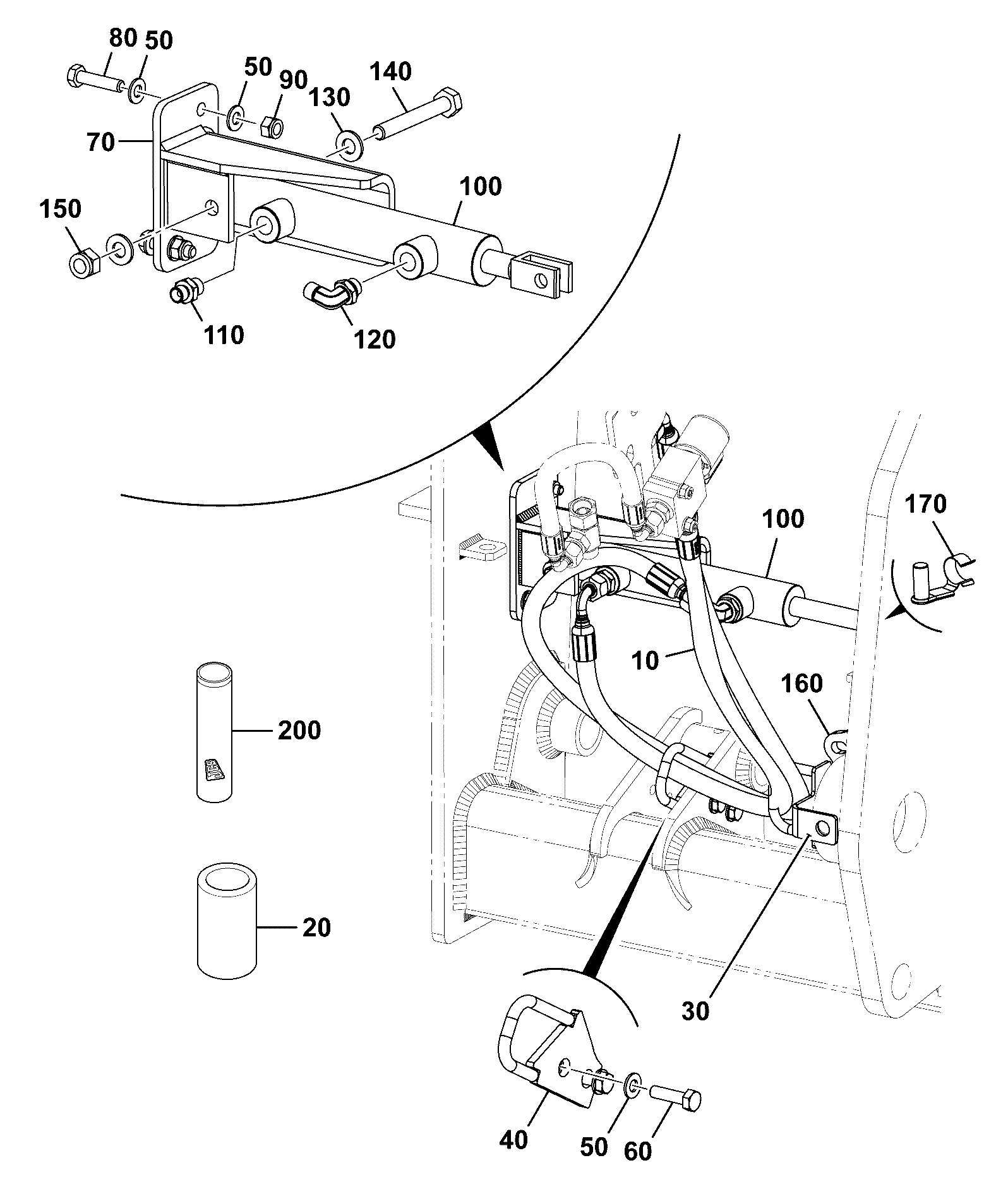

E100-415-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HYDRAULIC PIN LOCK SINGLE PIN DOUBLE ACTING Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	GA 2 AUX. CHAIN TRACKING P42 Kit form 333/E1663	1	AVAILABLE TO ORDER	$843.67	Quantity
20	P42 BOOM AUX HARNESS 721/G3060	1	AVAILABLE TO ORDER	$449.92	Quantity
20	P42 TWIN AUX & PIN LOCK L 721/B4943	1	AVAILABLE TO ORDER	$152.83	Quantity

Showing 1 to 3 of 3 parts

DIAG-E100-415-5-400965 E100-415-5 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HYDRAULIC PIN LOCK SINGLE PIN DOUBLE ACTING
View Diagram
DIAG-E100-465-1-400965 E100-465-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HYDRAULIC PIN LOCK SINGLE PIN DOUBLE ACTING, MANITOU
View Diagram
DIAG-E190-400-1-400965 E190-400-1 OTHER HYDRAULIC CIRCUITS HYDRAULIC PIN LOCK CARRIAGE HYDRAULICS
View Diagram
