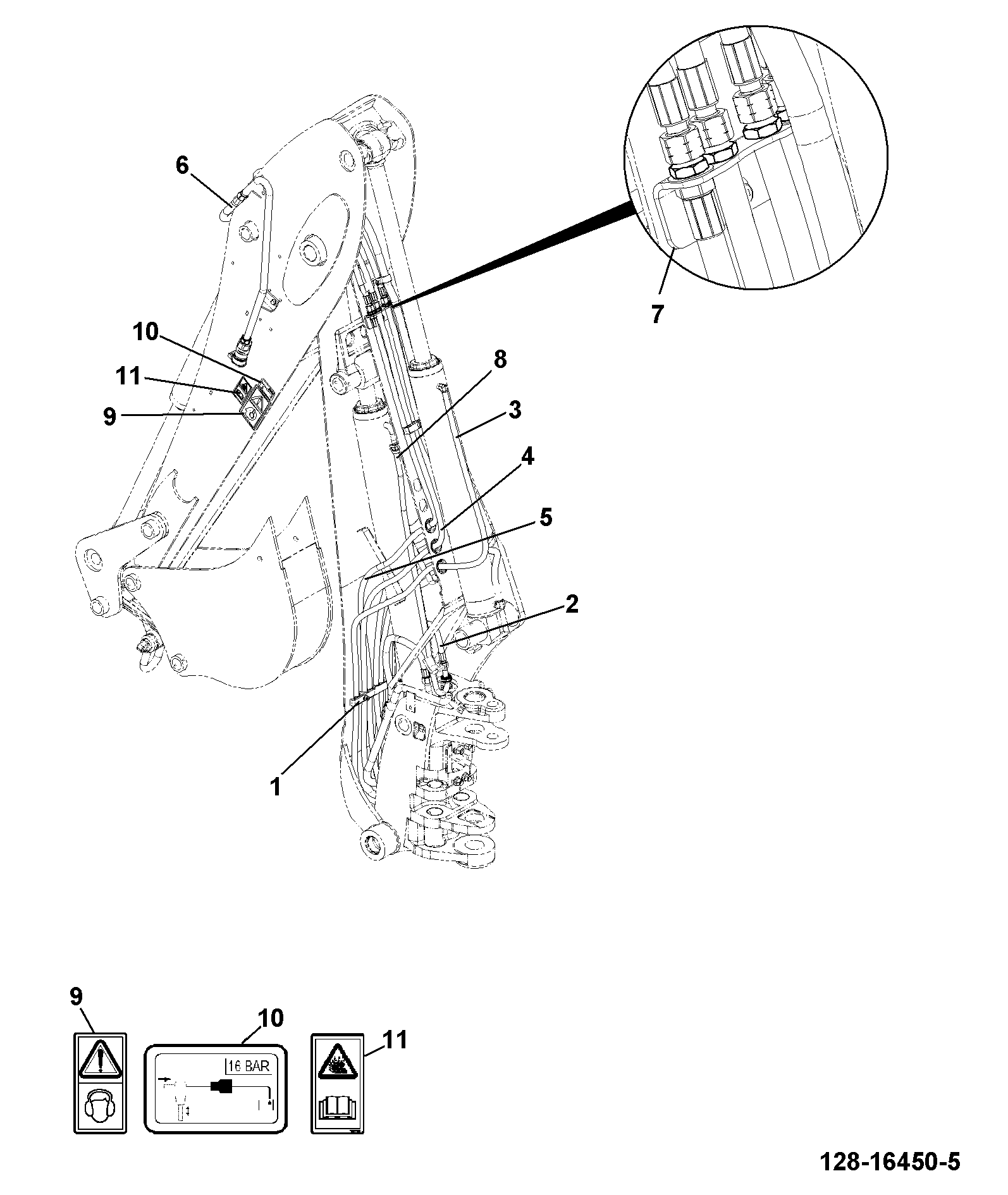

E100-40-2 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES HIGH FLOW LOW FLOW 92″, POWERSLIDE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	AUX VALVE 1spool 25/221920	1	AVAILABLE TO ORDER	$974.12	Quantity
170	GA RAM LONG POWERSLIDE 50x25 (BLACK) 551/60014 551/60197	1	AVAILABLE TO ORDER	$2,143.29	Quantity

Showing 1 to 2 of 2 parts
