Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| TANK RETURN TEMPLATE 5A(X 400/P6515 | 1 | $8.83 | ||||
| 10 | SUCTION PIPE 830/13961 | 1 | $130.88 | |||
| 20 | LOW PRESS.HOSE 150MM 648/02902 | 1 | $78.45 | |||
| 30 | WORM DRIVE SPRING CLIP 60-80mm 2206/6080 | 1 | $16.41 | |||
| 40 | PORT ADAPTOR FLANGE 332/G0426 334/D7771 | 1 | $184.57 | |||
| 50 | PLUG 9/16UNF O RING BOSS 1745/0002 | 1 | $106.02 | |||
| 60 | PRESSURE TEST ADAPTOR 45/904100 | 1 | $49.44 | |||
| 70 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 80 | FLANGE SPLIT KRJ2682 | 1 | $18.47 | |||
| 90 | CAP SCREW M10 x 65 G12.9 1391/3415D | 1 | $16.62 | |||
| 100 | SPRING-WASHER M10 1425/0008D | 1 | $0.44 | |||
| 110 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 120 | O-RING - 32.51 x 3.81 PU9 828/00417 828/00021 | 1 | $25.21 | |||
| 130 | (W) (Pre-P) ADAPTOR -TEE 816/90277 | 1 | $126.10 | |||
| 140 | BULKHEAD PLATE 334/C4568 | 1 | $41.45 | |||
| 150 | (W) (P) ADAPTOR G5/8A x G5/8A 816/90339 | 1 | $30.50 | |||
| 160 | ADAPTOR - TEE 816/90143 | 1 | $52.58 | |||
| 170 | CLAMP PAIR 821/00311 | 1 | $60.45 | |||
| 180 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 190 | ADAPTOR 1/4 BSP TEE-M/F/M 816/90013 | 1 | $80.41 | |||
| 200 | BOLT M8x45 1315/3311D | 1 | $1.32 | |||
| 210 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 220 | LOCK-NUT M_8 FLANGE 1370/0209D | 1 | $0.27 | |||
| 230 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 250 | HOSE 5/8 LP 634/80030 | 1 | $83.42 | |||
| 260 | HOSE 614/00200 | 1 | $59.86 | |||
| 270 | HOSE 3/4 BSP - 1 S 332/F3188 | 1 | $413.36 | |||
| 280 | HOSE.1"BSP 637/32300 | 1 | $184.69 | |||
| 290 | HOSE 06 BSP HP 800mm A 333/G3138 | 1 | $63.55 | |||
| 310 | HOSE 611/53005 | 1 | $98.84 | |||
| 320 | Hose Assy 3/8 BSP P564 (R)(3) 612/80211 | 1 | $70.77 | |||
| 330 | HOSE HYDRAULIC (HP 611/04500 | 1 | $54.86 | |||
| 340 | HOSE - 1/2 1040 MM 332/W2449 | 1 | $133.90 | |||
| 350 | HOSE 611/80046 | 1 | $81.47 | |||
| 360 | HOSE-04 BSP HP 2900mm B 333/C0250 | 1 | $94.31 | |||
Showing 1 to 35 of 35 parts
Related Assemblies
-
DIAG-D310-5-1-401622 D310-5-1 STEERING COLUMN INSTALLATION
View Diagram -

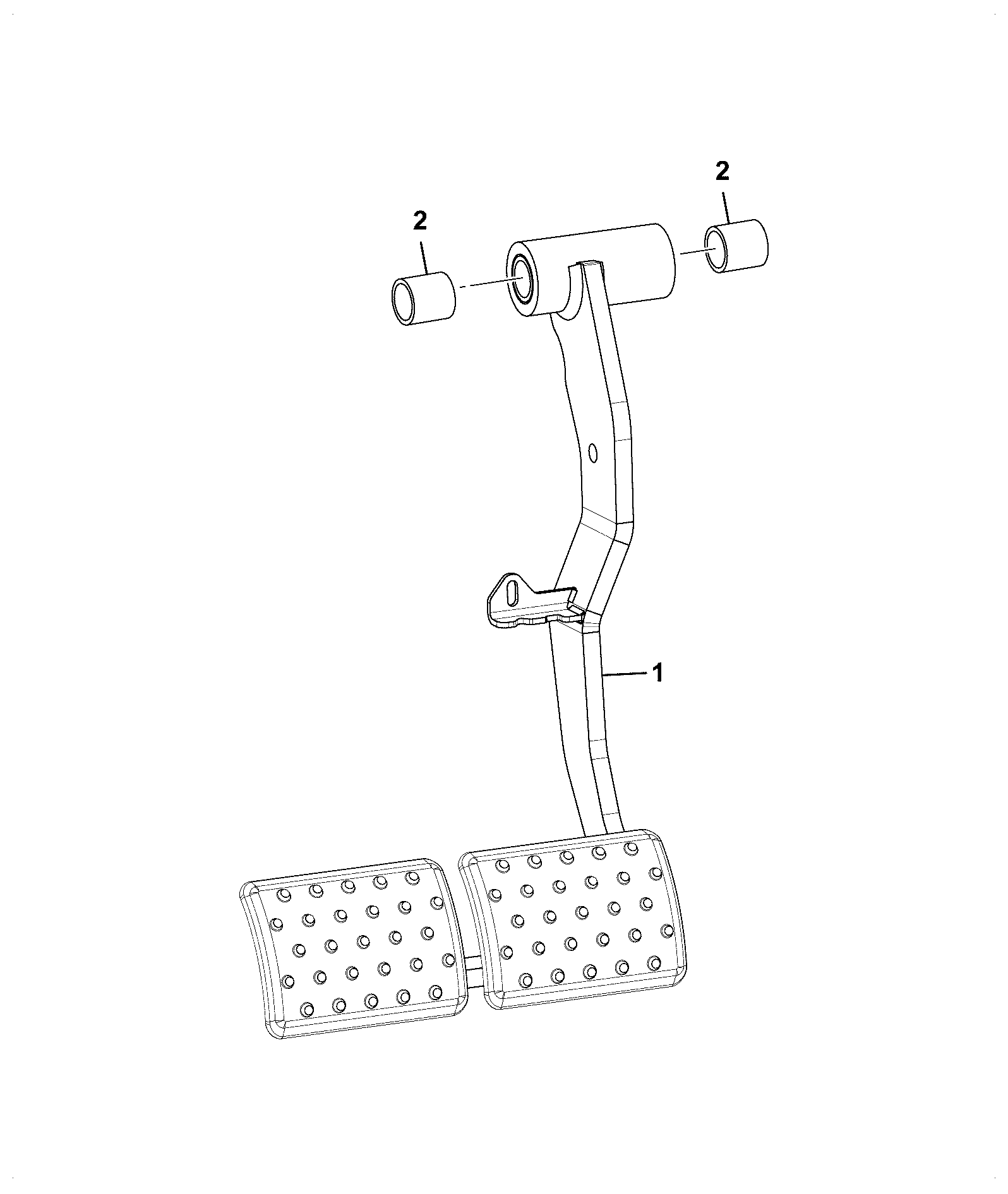

DIAG-D150-25-1-401622 D150-25-1 FOOT PEDALS ABI BRAKE PEDAL
View Diagram -

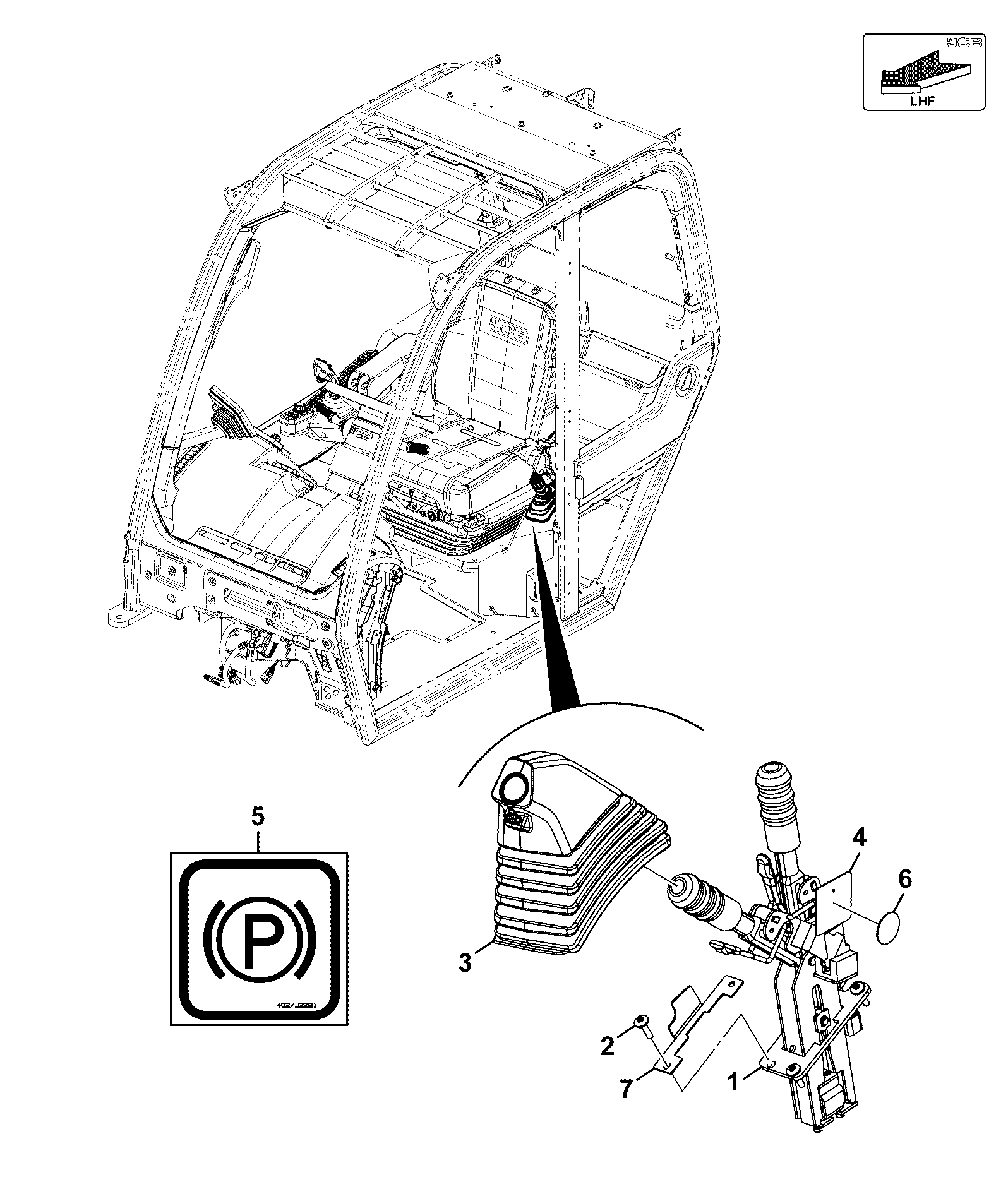

DIAG-D140-40-1-401622 D140-40-1 PARKING BRAKE MECHANICAL HANDBRAKE
View Diagram
