E100-25-5 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES TWIN LINE, TRAILOR BRAKE , HMH Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Part Number	Qty.	Avl.	Price (USD)	Action
SIGHT GAUGE 11/4 BSP 100 123/08053	1	1 IN STOCK	$38.73	Quantity
(P) (Pre-P) Label ISO-06A 332/G7379	1	AVAILABLE TO ORDER	$1.73	Quantity
CAP-FILLER/BREATHER 123/04055	1	AVAILABLE TO ORDER	$94.18	Quantity
Label ISO-06G 401/P0004	1	AVAILABLE TO ORDER	$0.95	Quantity
LABEL: HYD TRAILER BRAKE 334/E7057	1	AVAILABLE TO ORDER	$4.69	Quantity

Showing 1 to 5 of 5 parts

DIAG-E100-25-1-402943 E100-25-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES TWIN LINE, TRAILOR BRAKE , HMH
View Diagram

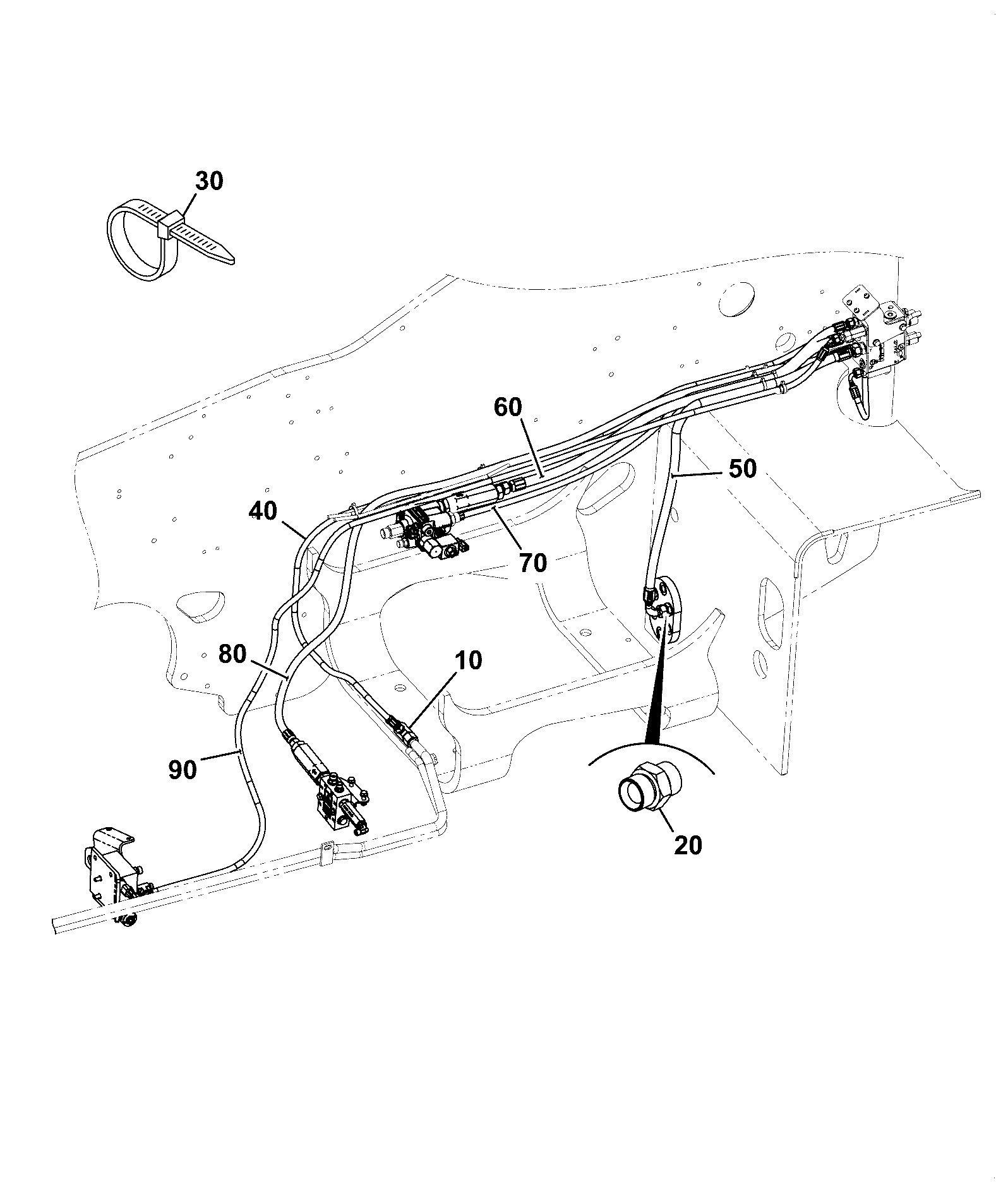

DIAG-E190-70-1-402943-14699455 E190-70-1 OTHER HYDRAULIC CIRCUITS INSTALLATION TRAILOR BRAKE VALVE
View Diagram

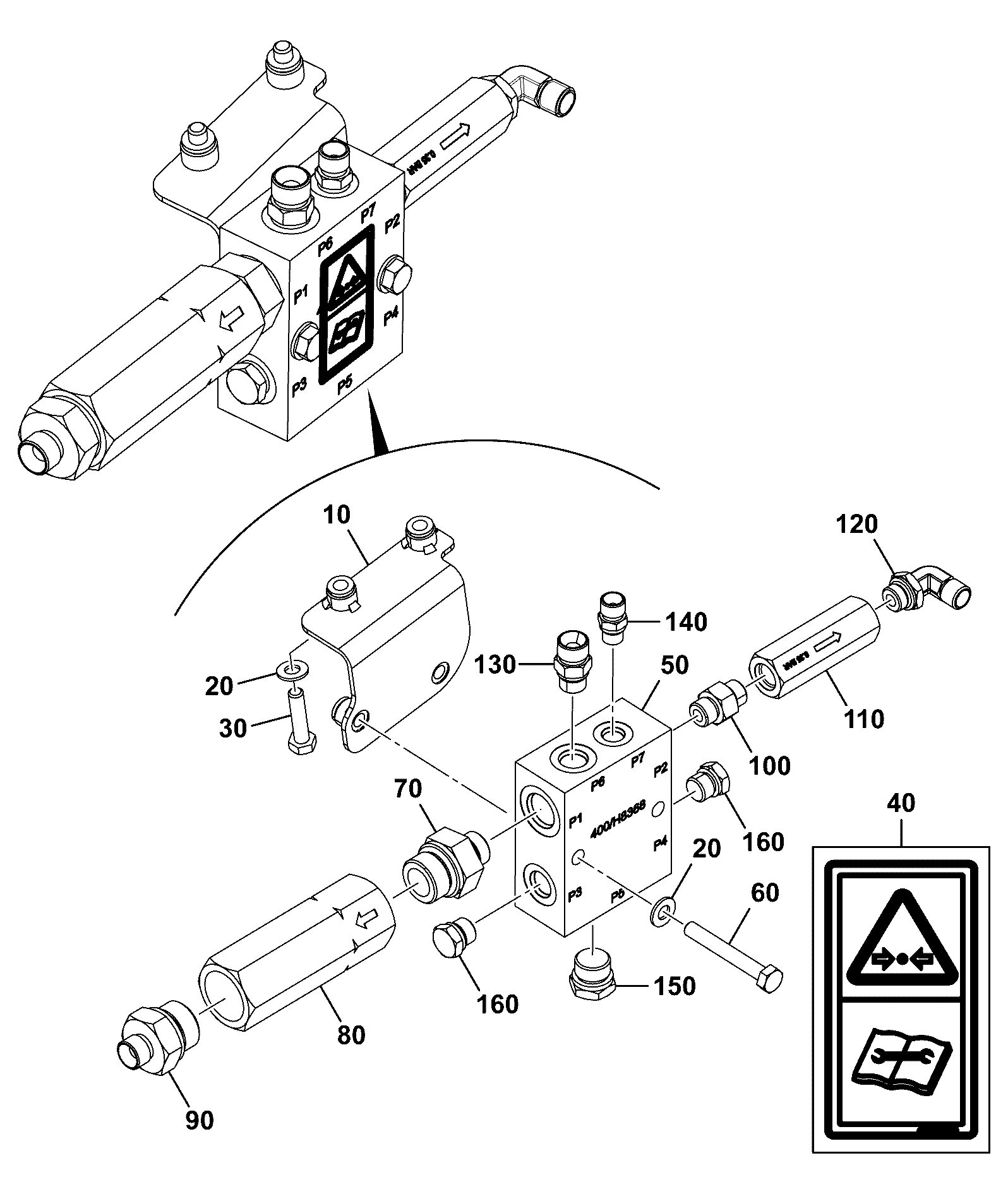

DIAG-E190-90-1-402943 E190-90-1 OTHER HYDRAULIC CIRCUITS INSTALLATION MANIFOLD, TRAILOR BRAKE
