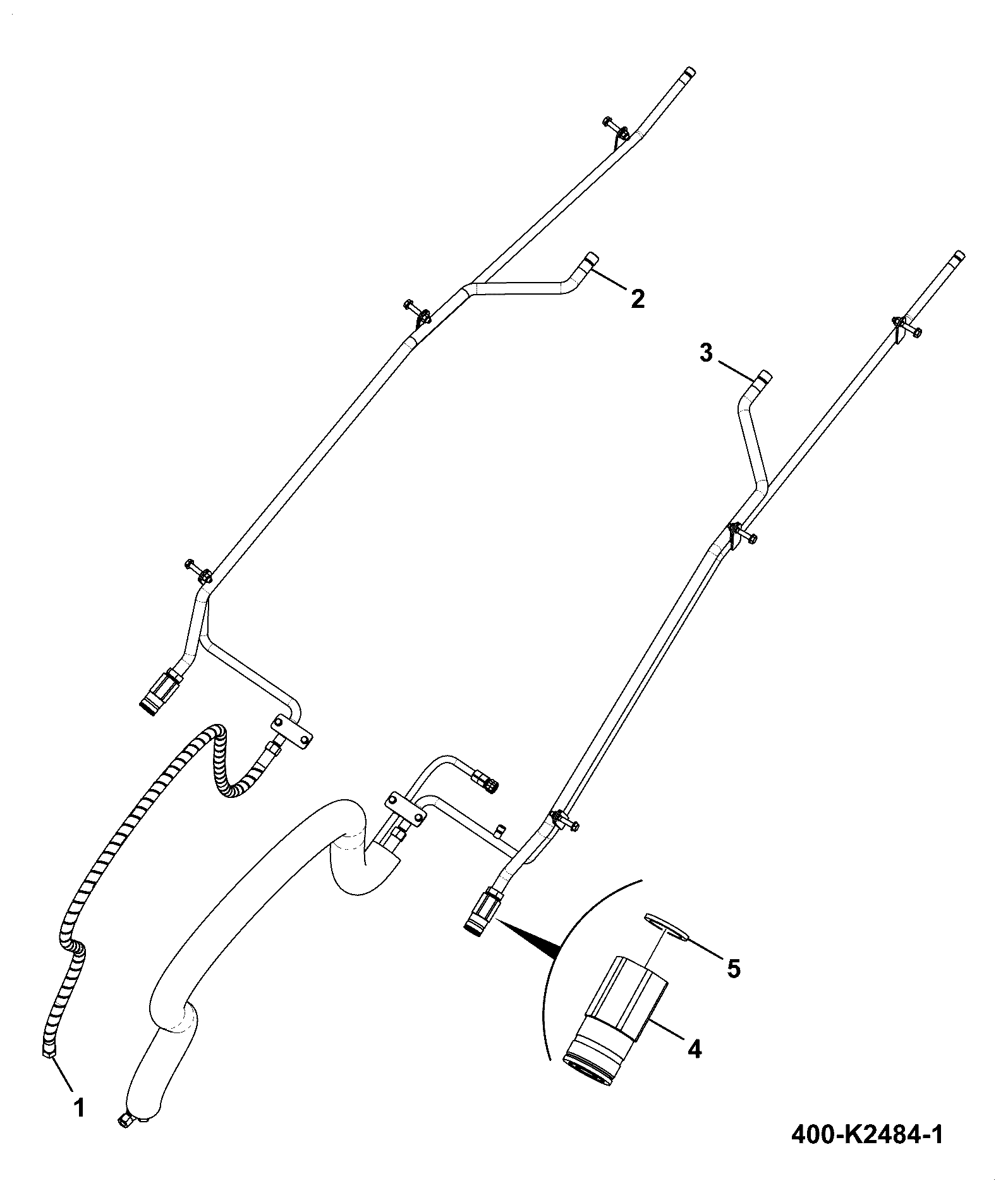

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | 3 SPOOL AUX PIPES - SSH 400/K2681 | 1 | $957.19 | |||
| 2 | WA - LH PIPE AUX2 400/M9513 | 1 | $339.34 | |||
| 3 | WA - RH PIPE AUX2 400/K0076 | 1 | $246.31 | |||
| 4 | QRC SAE MALE 1 1/16 UNF 332/X3841 | 1 | $68.58 | |||
| 5 | QRC SAE FEMALE 1 1/16 UNF 332/X3840 | 1 | $113.29 | |||
| 6 | SPACER 823/10809 | 1 | $2.78 | |||
| 7 | WASHER 1/4 MEDIUM PLAIN 1411/0001D | 1 | $7.13 | |||
| 8 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
Showing 1 to 8 of 8 parts
Related Assemblies
-
DIAG-E100-20-1-404467 E100-20-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES CIRCUIT 4 SPOOL AUX PIPES - STD
View Diagram -

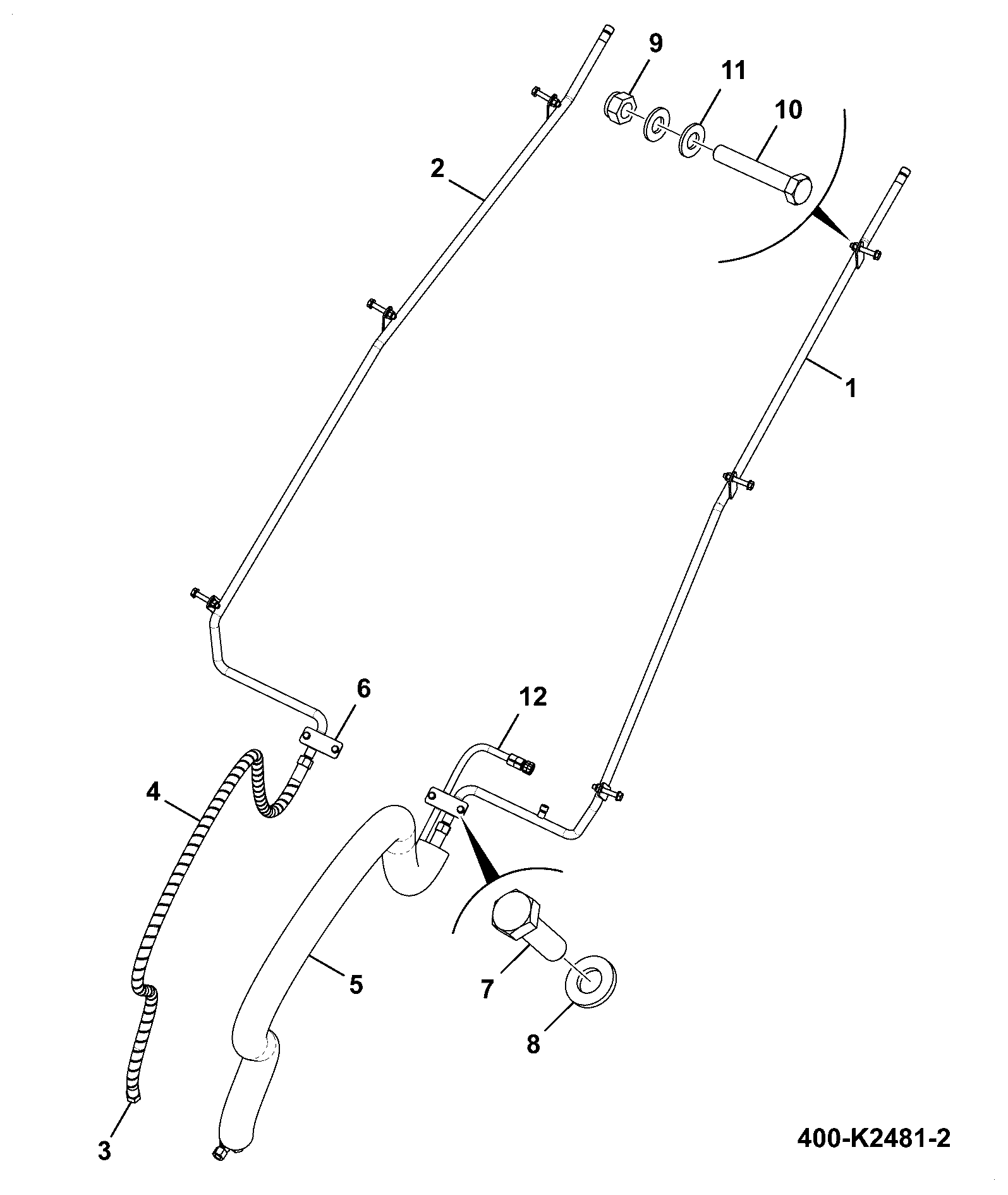

DIAG-E100-15-1-404467 E100-15-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES CIRCUIT 3 SPOOL AUX PIPES - SSH
View Diagram -
DIAG-E100-10-1-404467 E100-10-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES CIRCUIT 3 SPOOL AUX PIPES - STD
View Diagram
